4K Box AI Camera

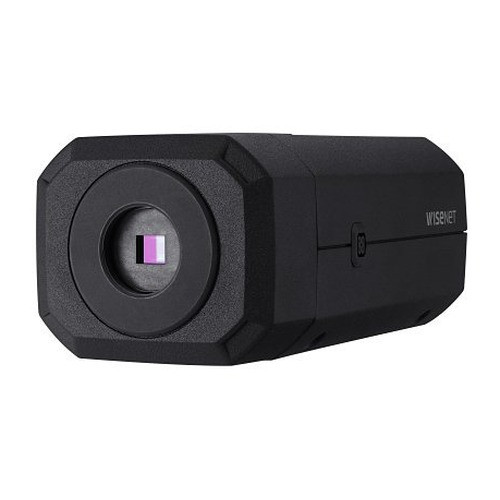

Hanwha XNB-9003/KEX Overview

The Hanwha XNB-9003/KEX is a 4K fixed box camera designed for professional IP surveillance deployments requiring high-resolution imaging and embedded AI analytics. With 8 MP 4K resolution and intelligent video analysis capabilities, this model delivers detailed scene capture for indoor monitoring applications where fixed focal length deployment meets operational requirements. The XNB-9003/KEX combines compact form factor with enterprise-grade security architecture, making it suitable for integrators and IT managers building IP surveillance infrastructure.

Hanwha XNB-9003/KEX Key Features

• 4K Resolution (8 MP) — Captures high-definition video at 4K resolution for detailed forensic review and object recognition across large monitoring areas
• AI Analytics Ready — Supports embedded AI capabilities for intelligent event detection and object classification in live and recorded video streams
• Low-Light Performance — Operates at 0.03 lux in color mode, enabling surveillance in dimly lit indoor environments without relying on infrared
• Compact Fixed Form Factor — Measures 81(W) × 67(H) × 165(D) mm (3.19" × 2.64" × 6.48") and weighs 880g (1.94 lbs), allowing flexible mounting in space-constrained installations
• PoE and DC Power Options — Supports both IEEE 802.3af PoE (Class 3, max 12.95W typical 9.8W) and 12VDC auxiliary power (max 19W typical 9.5W) for flexible deployment scenarios
• Dual microSD Card Edge Storage — Accommodates up to 2 × 512GB microSD/SDHC/SDxC cards (total 1TB) for on-camera recording, or up to 2 × 1TB cards (total 2TB) for cloud-based edge recording with certified Hanwha Vision microSD cards
• TPM 2.0 and FIPS 140-2 Level 2 Compliance — Includes Trusted Platform Module with FIPS 140-2 Level 2 certification for cryptographic key storage and secure firmware integrity verification
• Enterprise Network Authentication — Supports IEEE 802.1X network access control (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) for integration into managed corporate network environments
• Encrypted Communications — Implements HTTPS, WSS (WebSocket Secure), and SRTP for encrypted live streaming and recording file transmission
• Secure Firmware Architecture — Features encrypted firmware, secure boot, and digitally signed firmware updates to prevent unauthorized code execution
• 4GB RAM and 512MB Flash Storage — Sufficient onboard memory for concurrent video processing, analytics execution, and firmware operation
• Wide Operating Temperature Range — Functions reliably from −10°C to +55°C (14°F to 131°F), supporting indoor deployments across varied climate-controlled facilities

Hanwha XNB-9003/KEX Integration & Compatibility

The XNB-9003/KEX supports ONVIF Profiles S, G, T, and M for interoperability with third-party video management systems and enterprise security platforms. Programming interfaces include SUNAPI (HTTP API) and Hanwha Vision Open Platform for custom application development and system integration. The camera provides IP-based access control, event logging, and audit trail management compatible with standard NMS and VMS deployments. Device authentication relies on Hanwha Vision Root CA certificates with encrypted credential storage. Integrators can leverage direct cloud connection capabilities and Hanwha Vision CloudConnector for hybrid on-premise and cloud-based recording workflows.
