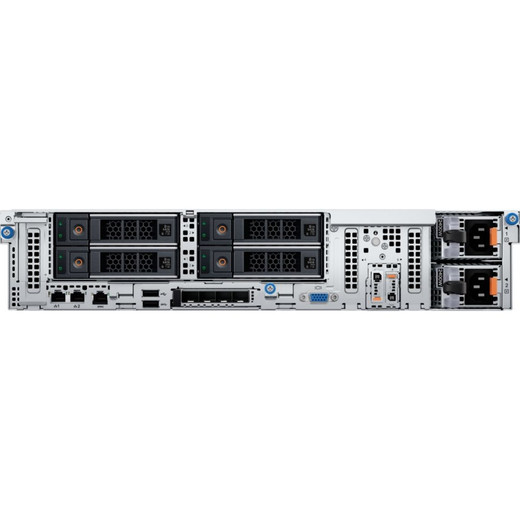

Hanwha WRR-P-S206S1-400TB 2U WAVE Network Video Recorder with 4

Hanwha WRR-P-S206S1-400TB Overview

The Hanwha WRR-P-S206S1-400TB is a 2U rackmount Wisenet WAVE Network Video Recorder engineered for entry-level to mid-scale IP surveillance deployments requiring reliable, high-capacity video storage and processing. This model delivers 400TB of raw storage capacity (327TB usable after RAID 6 formatting), 1100 Mbps recording bandwidth, and comes pre-loaded with Wisenet WAVE VMS and four Professional licenses, enabling rapid deployment with minimal configuration overhead.

Hanwha WRR-P-S206S1-400TB Key Features

• Massive Storage Capacity: 400TB raw capacity across 28 HDD bays (3.5") supports extended retention periods and large-scale multi-camera environments. RAID 6 configuration yields 327TB usable storage after formatting, balancing redundancy with usable space.
• High-Throughput Recording: 1100 Mbps recording bandwidth accommodates simultaneous, high-bitrate streams from dozens of professional IP cameras without bottlenecking or frame loss.
• Dual Intel Xeon Gold 5416S Processors: Enterprise-grade dual-socket CPU architecture delivers the compute power necessary for real-time video processing, transcoding, and analytics workloads across multiple concurrent streams.
• 64GB DDR4 RAM: Ample system memory ensures smooth multi-threaded operation, fast application response, and headroom for future scaling as camera counts increase.
• Dedicated SSD Boot Drives: Dual 480GB SSD drives configured in RAID 1 provide fast OS boot and application load times, separating system operations from video storage to eliminate contention.
• NVIDIA A400 GPU Acceleration: Dedicated GPU support accelerates video transcoding, codec conversion, and optional deep-learning analytics workloads without consuming CPU cycles.
• Flexible RAID Support: Support for RAID 0, 1, 5, 6, and 10 configurations allows integrators to balance performance, redundancy, and storage efficiency based on deployment requirements. 8GB NV-cache further optimizes I/O performance.
• Dual 10/25GbE SFP28 Network Interfaces: High-speed 10GbE and 25GbE connectivity enables low-latency, high-throughput connections to modern network infrastructure; dual 1GbE RJ45 ports provide fallback/management connectivity.
• Redundant Power Supplies: Dual 1400W 80 Plus Platinum power supplies ensure continuous operation even during single-PSU failure, critical for 24/7 surveillance environments.
• Wisenet WAVE Pre-Installed: Ships with Wisenet WAVE VMS pre-loaded and four Professional licenses included, eliminating separate software licensing and reducing time-to-deployment.
• Windows Server 2022 Standard: Runs Windows Server 2022 Standard operating system, providing a familiar, well-supported platform with robust security updates and ecosystem compatibility.
• Multiple Display & Management Options: NVIDIA MiniDP video output and VGA output support flexible monitor configurations. IPMI (Intelligent Platform Management Interface) enables remote out-of-band server management and monitoring.

Hanwha WRR-P-S206S1-400TB Integration & Compatibility

The WRR-P-S206S1-400TB is designed as a dedicated Wisenet WAVE recording platform and integrates seamlessly with Hanwha Vision IP cameras and the Wisenet WAVE ecosystem. Its dual 10/25GbE SFP28 ports and dual 1GbE RJ45 interfaces support integration into enterprise network infrastructures with redundancy and failover capabilities. The server supports standard ONVIF-compliant camera connectivity for multi-vendor deployments. IPMI support enables integration with data center management and monitoring tools. Keyboard and mouse are included for initial setup and administration.

Hanwha WRR-P-S206S1-400TB Physical Specifications

• Form Factor: 2U rack-mount chassis
• Dimensions: 18.96" W × 32.95" D × 3.41" H
• Weight: 102.07 lbs (fully loaded with drives)
• Operating Temperature: 50°F to 86°F (10°C to 30.5°C)
• Storage Temperature: -40°F to 149°F (-40°C to 65°C)
• Operating Humidity: 10% to 80% RH non-condensing
• Power Supply: Dual 1400W 80 Plus Platinum; Input 100–240 VAC
• Heat Dissipation: 3001 BTU/hr maximum
• Certifications: UL, NOM, RoHS, TUV, GS

Hanwha WRR-P-S206S1-400TB Package Contents

• WRR-P-S206S1-400TB 2U rackmount recording server
• Sliding rail kit (included)
• Cable management arm
• Keyboard and mouse
• Wisenet WAVE VMS pre-installed with 4 Professional licenses
