Hanwha WRR-P-E201S2-80TB 1U WAVE Network Video Recorder with 4

Hanwha WRR-P-E201S2-80TB Overview

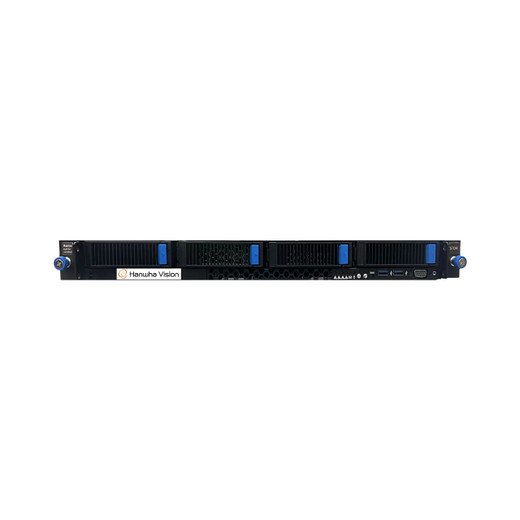

The Hanwha WRR-P-E201S2-80TB is a 1U rackmount Wisenet WAVE Network Video Recorder engineered for enterprise-scale IP video surveillance deployments. This appliance combines pre-installed Wisenet WAVE video management software with high-capacity storage and professional-grade hardware, delivering 470 Mbps recording throughput and support for up to 128 IP camera channels. Designed for integrators and managed service providers requiring dense, reliable video storage with integrated VMS functionality.

Hanwha WRR-P-E201S2-80TB Key Features

• 80TB Raw Storage Capacity: Supports up to 80TB of raw video-optimized storage across 4 front-accessible 3.5" hot-swappable HDD bays, providing 54TB usable capacity after RAID 5 formatting and configuration for resilient, fault-tolerant recording.
• 470 Mbps Recording Bandwidth: Delivers sustained 470 Mbps throughput for simultaneous multi-camera recording, enabling high-bitrate H.265 and H.264 streams from dozens of concurrent IP cameras without bottlenecking.
• Dual Redundant 450W Power Supplies: 80 Plus Platinum certified power delivery ensures continuous operation and eliminates single-point-of-failure risk in mission-critical surveillance environments.
• Intel Xeon 6333P Processor with 16GB DDR5 RAM: Enterprise-class compute platform with dual-channel DDR5 memory (2 × 8GB) and integrated NVIDIA T400 graphics accelerator for smooth real-time multi-monitor display and analytics processing.
• Dual SSD OS Drives with RAID 1 Protection: Paired 480GB SSDs in RAID 1 configuration house Windows Server 2022 Standard or alternative OS options (Windows 11 IoT Enterprise LTSC 2024, Ubuntu 22.04 LTS), ensuring system resilience and rapid recovery.
• Flexible RAID Support: Supports RAID 0, 1, 5, and 6 configurations across data drives, allowing integrators to optimize for capacity, performance, or fault tolerance based on deployment requirements and SLA mandates.
• 4 Wisenet WAVE Professional Licenses Included: Pre-installed licenses for Wisenet WAVE video management system reduce deployment time and licensing overhead; expandable architecture supports up to 128 camera channels.
• Multiple Video Output Options: HDMI, VGA, and 4 × Mini DisplayPort outputs enable flexible multi-monitor configurations for command centers and control rooms.
• Dual 1GbE Network Interfaces (Standard): Two RJ45 Gigabit Ethernet ports for management and camera connectivity; optional upgrade to dual 1GbE + dual 10GbE RJ45 configuration available for high-bandwidth environments.
• 512MB NV Cache and IPMI Management: On-board memory caching accelerates write performance during peak recording loads; IPMI support enables remote out-of-band hardware management and monitoring.
• Shallow 1U Form Factor with Rail Kit: 1.7" height, 19.6" depth, and 17.3" width fit standard 19" racks; included sliding rail kit with cable management arm simplifies installation and supports secure racking in data centers.
• 5-Year Next Business Day Keep Your Hard Drive Warranty: Factory warranty covering hardware failures with expedited replacement and on-site support, protecting investment in large-capacity storage deployments.

Hanwha WRR-P-E201S2-80TB Integration and Compatibility

The WRR-P-E201S2-80TB supports Wisenet and ONVIF-conformant IP cameras, ensuring broad ecosystem compatibility with leading camera manufacturers. Wisenet WAVE VMS is pre-installed and configured at the factory, eliminating lengthy software setup and validation. The appliance runs Windows Server 2022 Standard, enabling integration with Active Directory domains, SNMP monitoring tools, and enterprise IT infrastructure. Network connectivity via dual 1GbE ports (with optional 10GbE upgrade) supports standard surveillance network architectures. IPMI hardware management enables remote power control, event alerting, and diagnostics through standard out-of-band management platforms. The 512MB NV cache and RAID-capable storage subsystem are optimized for continuous 24/7 video recording duty cycles, supporting compliance with video retention policies in regulated industries.

Hanwha WRR-P-E201S2-80TB Package Contents

• WRR-P-E201S2-80TB 1U rackmount server chassis with 4 × 3.5" HDD bays
• Pre-installed Wisenet WAVE VMS with 4 Professional licenses
• Dual 480GB SSD OS drives (RAID 1, internally mounted)
• Intel Xeon 6333P processor
• 16GB DDR5 RAM (2 × 8GB modules)
• NVIDIA T400 graphics card
• Dual 450W redundant power supplies
• USB keyboard and mouse
• Sliding rack rail kit with cable management arm
