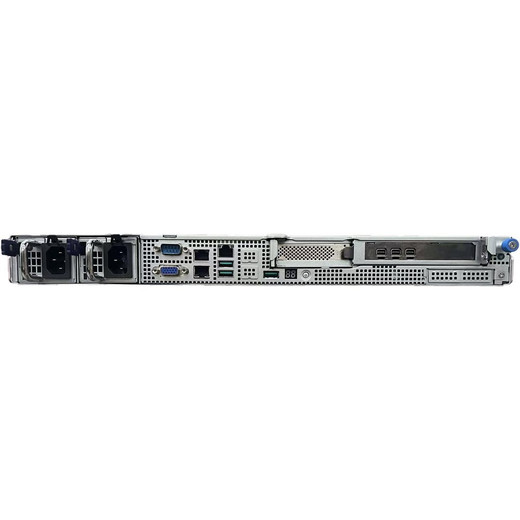

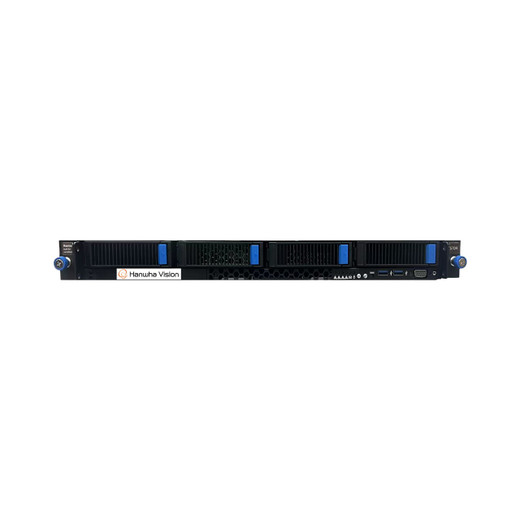

Hanwha WRR-P-E201S2-64TB 1U WAVE Network Video Recorder with 4

Hanwha WRR-P-E201S2-64TB Overview

The Hanwha WRR-P-E201S2-64TB is a 1U rackmount Network Video Recorder purpose-built for enterprise surveillance deployments requiring high-capacity storage and throughput in a compact form factor. This model ships with Wisenet WAVE video management software pre-installed and configured, four Professional licenses included, and supports up to 128 camera channels over standard Gigabit or optional 10 Gigabit network interfaces.

Hanwha WRR-P-E201S2-64TB Key Features

• 64TB Raw Storage Capacity with 43TB Usable — Supports up to 80TB raw storage across four 3.5-inch front hot-swappable drive bays. The 64TB configuration yields 43TB of usable capacity after RAID 5 formatting, enabling extended retention for multi-camera installations.
• 470 Mbps Recording Bandwidth — Delivers sustained throughput sufficient to ingest high-bitrate streams from dozens of concurrent cameras without frame loss or throttling.
• Wisenet WAVE Pre-Installed & Licensed — Includes four Wisenet WAVE Professional licenses and pre-configured VMS software, eliminating post-purchase setup delays and licensing procurement.
• Flexible RAID Configuration — Supports RAID 0, 1, 5, and 6 modes, allowing integrators to balance performance and fault tolerance. Dual 480GB SSD OS drives in RAID 1 protect the operating system independently.
• Intel Xeon 6333P Processor with NVIDIA T400 Graphics — Delivers multi-monitor playback, live view, and video wall rendering across four Mini DisplayPort outputs, plus HDMI and VGA outputs for legacy display compatibility.
• 16GB DDR5 RAM — Supports responsive multi-stream playback, concurrent user sessions, and on-board analytics processing without bottlenecking.
• Dual Gigabit Network Interfaces with Optional 10GbE — Two 1GbE ports standard; optional dual 10GbE for high-bandwidth environments requiring real-time ingest from remote camera arrays or cloud failover.
• Windows Server 2022 Standard Operating System — Provides enterprise OS support, Group Policy integration, IPMI management, and Windows security patching ecosystem. Also supports Windows 11 IoT Enterprise LTSC 2024 and Ubuntu 22.04 LTS.
• Redundant 450W 80 Plus Platinum Power Supplies — Ensures continuous operation during power anomalies and eliminates single points of failure in critical security deployments.
• 512MB NV Cache and Hot-Swap Drive Bays — Protects against data loss during unexpected shutdowns and allows drive replacement without powering down the appliance.
• IPMI Support with KVM & Serial Port — Enables secure remote management, firmware updates, and diagnostics without physical console access.
• 5-Year Next Business Day Keep-Your-Hard-Drive Warranty — Covers parts and labor with expedited hardware replacement, reducing downtime in mission-critical environments.

Hanwha WRR-P-E201S2-64TB Integration & Compatibility

The WRR-P-E201S2-64TB supports Wisenet and ONVIF-conformant IP cameras, enabling integration with multi-vendor camera portfolios. Wisenet WAVE VMS provides seamless camera discovery, live streaming, playback, and event management. The recorder supports up to 128 IP camera channels, making it suitable for large retail, transportation, municipal, and enterprise campus deployments. Dual Gigabit network interfaces enable segregated management and recording traffic, while optional dual 10GbE interfaces accommodate high-bitrate corporate networks. IPMI support allows integrators to deploy out-of-band management cards or Baseboard Management Controller (BMC) access for hands-free remote diagnostics and firmware updates.

Hanwha WRR-P-E201S2-64TB Package Contents

• WRR-P-E201S2-64TB 1U Rackmount Chassis with Power Supplies
• Four 3.5-inch Hot-Swappable Drive Bays (drives not included)
• Dual 480GB SSD OS Drives (pre-installed, RAID 1)
• Windows Server 2022 Standard Pre-installed
• Wisenet WAVE VMS Software Pre-installed and Configured
• Four Wisenet WAVE Professional Licenses
• USB Keyboard and Mouse
• Sliding Rack Rail Kit with Cable Management Arm
