Hanwha WRR-P-E201S2-48TB Overview
The Hanwha WRR-P-E201S2-48TB is a 1U rackmount network video recording solution engineered for enterprise surveillance deployments. This model arrives with Wisenet WAVE video management software preloaded and configured, delivering 48TB raw storage capacity (32TB usable after formatting and RAID 5 configuration) and 470 Mbps recording bandwidth to support large-scale multi-camera surveillance operations. Built on Windows Server 2022 with Intel Xeon processor architecture, it serves as a complete turnkey VMS and storage appliance for security integrators and IT managers deploying ONVIF-compliant and Wisenet IP camera systems.
Hanwha WRR-P-E201S2-48TB Key Features
- Preloaded Wisenet WAVE VMS with 4 Professional Licenses: Ships with Wisenet WAVE video management system installed and ready to deploy, including four Professional licenses for immediate multi-user and multi-site management without separate software procurement.
- 470 Mbps Recording Throughput: Supports sustained recording bandwidth of up to 470 Mbps, enabling simultaneous high-bitrate streams from dozens of 4K and megapixel cameras without frame rate compromise.

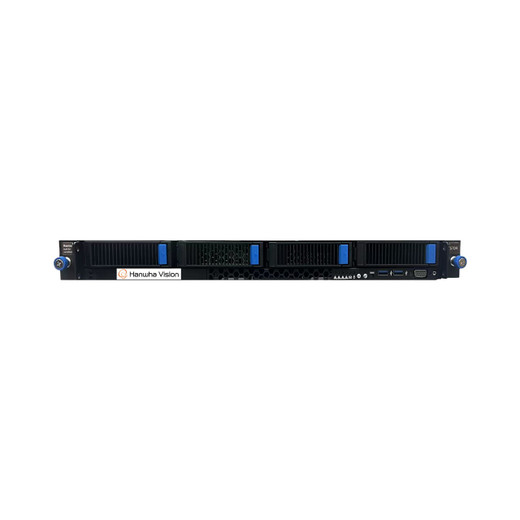

- Expandable Storage Architecture—48TB Raw / 32TB Usable: Four front-facing 3.5-inch hot-swappable HDD bays accept up to 80TB raw capacity; the 48TB model provides 32TB usable storage after RAID 5 configuration and file system formatting, with upgrade paths to 64TB or 80TB as surveillance footprints grow.
- Redundant SSD Operating System Drives: Dual 480GB SSD drives configured in RAID 1 provide fault tolerance for the Windows Server 2022 OS, protecting against single-drive failure and reducing unplanned downtime in 24/7 surveillance environments.
- Enterprise-Grade Processor and Memory: Intel Xeon 6333P CPU and 16GB DDR5 RAM (2 × 8GB modules) deliver sustained performance for video indexing, analytics processing, and concurrent user sessions across 128 supported channels.
- NVIDIA T400 Graphics Acceleration: Discrete NVIDIA GPU offloads video decoding and rendering, reducing CPU bottlenecks during multi-monitor playback, rapid search, and forensic review operations.
- Flexible RAID Configuration Support: Hardware supports RAID 0, 1, 5, and 6 modes, allowing integrators to balance performance and redundancy requirements; standard RAID 5 configuration trades some capacity for parity protection.
- Dual 1GbE Network Interfaces with IPMI: Two standard 1GbE RJ45 ports (with optional upgrade to 2 × 1GbE + 2 × 10GbE configuration) enable camera-to-recorder connectivity, management traffic, and failover; IPMI support provides out-of-band remote reboot and diagnostics.
- Redundant 450W Power Supplies: Dual 80 Plus Platinum-rated power supplies with automatic failover eliminate single points of failure in critical surveillance installations; 100-240V input supports global deployment.
- Wide Display and Output Connectivity: Single HDMI output, VGA port, and four Mini DisplayPort outputs support local monitoring across multiple displays for NOC and recording center environments.
- Shallow-Depth Rackmount Design: 1U form factor at 19.6 inches depth allows integration into standard 19-inch server racks with minimal cabinet footprint, preserving space for network and security infrastructure.
- Comprehensive OS and Platform Flexibility: Ships with Windows Server 2022 Standard; optional OS variants include Windows 11 IoT Enterprise LTSC 2024 and Ubuntu 22.04 LTS, enabling integrator choice and legacy system compatibility.
Hanwha WRR-P-E201S2-48TB Integration & Compatibility
The WRR-P-E201S2-48TB supports both Wisenet and ONVIF-conformant IP cameras, making it compatible with multi-vendor surveillance deployments. With up to 128 channel support and pre-installed Wisenet WAVE VMS, it accommodates expanding camera networks without additional software licensing. The dual 1GbE network interfaces support standard network topology architectures; optional 10GbE ports are available for high-throughput deployments. IPMI management enables remote power control and system diagnostics, reducing on-site service calls. The included sliding rail kit with cable management arm simplifies 19-inch rack integration, while USB 3.2 ports (two front, two rear) support external backup and device connectivity.
Hanwha WRR-P-E201S2-48TB Package Contents
- WRR-P-E201S2-48TB 1U recorder with Windows Server 2022 Standard OS pre-installed
- Four 3.5-inch HDD bays (hard drives not included)
- Dual 480GB SSD OS drives pre-installed in RAID 1 configuration
- Wisenet WAVE video management software pre-installed and configured
- Four Wisenet WAVE Professional licenses
- USB keyboard and mouse
- Sliding rack rail kit with cable management arm
- NVIDIA T400 graphics card
- Redundant 450W power supplies
