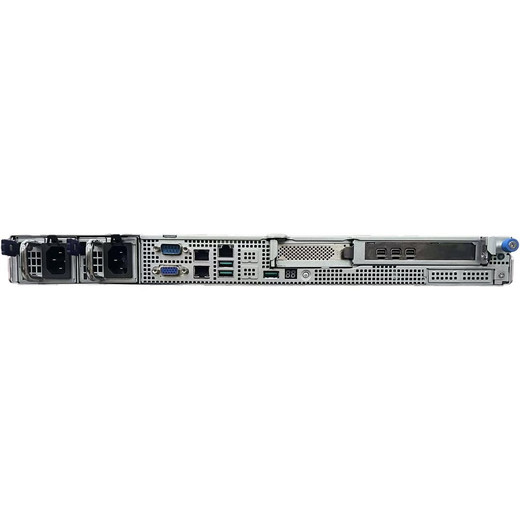

Hanwha WRR-P-E201S2-16TB 1U WAVE Network Video Recorder with 4

Hanwha WRR-P-E201S2 1U Wisenet WAVE Network Video Recorder Overview

The Hanwha WRR-P-E201S2-16TB is a 1U rackmount network video recorder purpose-built for enterprise surveillance deployments. Preloaded with Wisenet WAVE video management system and Windows Server 2022 operating system, this unit ships configured and ready for immediate deployment. It combines industrial-grade processing power with professional-grade storage architecture to deliver reliable, scalable IP camera recording for mid to large-scale security operations.

Hanwha WRR-P-E201S2 Key Features

• High-Capacity Storage with RAID Protection: Includes 16TB of raw video-optimized storage with usable capacity of 10TB after RAID 5 formatting. Supports RAID 0, 1, 5, and 6 configurations with dual 480GB SSD OS drives in RAID 1 for redundancy. 512MB NV cache improves write performance and protects against data loss.
• Professional Recording Bandwidth: Delivers 470 Mbps sustained recording throughput, enabling simultaneous multi-camera ingest at full resolution and frame rate across up to 128 connected channels.
• Included Wisenet WAVE Professional Licenses: Comes with 4 Wisenet WAVE Professional licenses pre-installed, eliminating separate licensing procurement and reducing time-to-deployment.
• Enterprise-Grade Processor and Memory: Intel Xeon 6333P processor with 16GB DDR5 RAM (2 x 8GB) provides sustained compute performance for real-time video processing, VMS operations, and multi-user access without bottlenecking.
• Dual Graphics and Multi-Display Output: NVIDIA T400 GPU accelerates video decoding and display rendering. HDMI, VGA, and 4 x Mini DisplayPort outputs enable flexible multi-monitor configurations for security operations centers and control rooms.
• Redundant Power Architecture: Dual 450W 80 Plus Platinum power supplies with automatic failover ensure continuous operation during single power supply failure, eliminating single points of failure in mission-critical deployments.
• Dual Network Interfaces with Upgrade Path: Standard configuration includes 2 x 1GbE RJ45 network interfaces; optional upgrade to 2 x 1GbE + 2 x 10GbE supports bandwidth-intensive operations and future scalability.

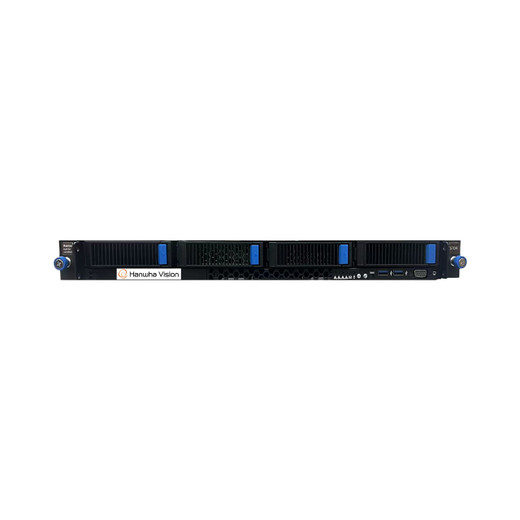

• Hot-Swappable Drive Bays: Four 3.5" front-facing HDD bays allow drive replacement without system shutdown, minimizing downtime during maintenance or drive failure recovery.
• IPMI Remote Management: Integrated Lights-Out management via IPMI enables power management, monitoring, and troubleshooting from remote locations without physical access.
• Shallow 1U Rackmount Form Factor: 17.3" width x 19.6" depth x 1.7" height fits standard server racks and equipment bays with minimal footprint, supporting co-location in existing data centers and server rooms.
• Complete Inclusion Package: Ships with sliding rack rail kit and cable management arm for immediate installation, plus USB mouse and keyboard for initial configuration and administration.

Hanwha WRR-P-E201S2 Integration & Compatibility

The WRR-P-E201S2 supports Wisenet and ONVIF-conformant IP cameras, enabling vendor-neutral camera integration across mixed-brand surveillance environments. Wisenet WAVE VMS is preinstalled and pre-configured on the unit, supporting up to 128 camera channels. The system runs Windows Server 2022 Standard operating system, enabling integration with enterprise IT infrastructure, Active Directory authentication, and third-party security and management tools. Network connectivity via dual 1GbE interfaces (with optional 10GbE upgrade) accommodates both standard deployments and high-throughput, bandwidth-intensive environments.

Hanwha WRR-P-E201S2 Package Contents

• Hanwha WRR-P-E201S2-16TB 1U Wisenet WAVE Recording Server (16TB raw storage)
• Windows Server 2022 Standard operating system (pre-installed)
• Wisenet WAVE Video Management System (pre-installed and licensed)
• 4 x Wisenet WAVE Professional licenses
• USB mouse and keyboard
• Sliding rack rail kit with cable management arm
