12MP, WN7 Fisheye

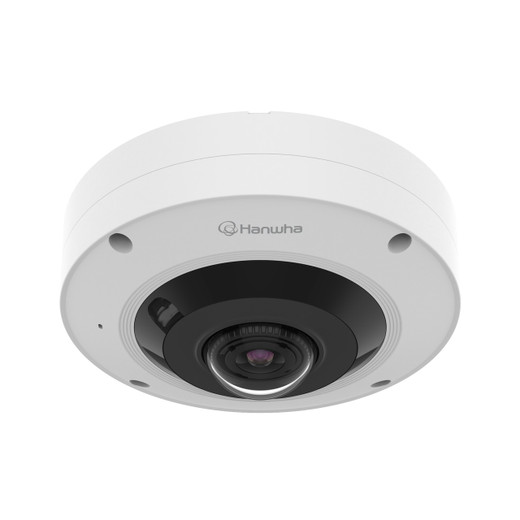

Hanwha XNF-9010RV/KAP Overview

The Hanwha XNF-9010RV/KAP is a 12MP panoramic fisheye network camera engineered for 360° outdoor surveillance installations. Built on Hanwha's X series platform, this camera delivers ultra-wide coverage in a compact form factor, making it ideal for perimeter monitoring, courtyard surveillance, and open-area protection where single-camera coverage is critical. The 1.08mm fixed focal length and stereographic lens design enhance resolution in peripheral regions, eliminating traditional fisheye blind spots.

Hanwha XNF-9010RV/KAP Key Features

• 12MP CMOS Sensor with 360° Coverage: 1/2.3" 12MP sensor captures panoramic content across the full visual field with enhanced peripheral detail via stereographic lens technology
• Fixed 1.08mm Fisheye Lens: Delivers seamless 360° field of view without blind spots; enhanced resolution in peripheral regions minimizes image distortion at the edges
• Flexible Codec Support: H.265, H.264, and MJPEG compression enables bandwidth optimization and broad playback compatibility across VMS platforms
• Dual PoE and 12VDC Power Options: PoE (IEEE 802.3af, Class 3) with max 12.95W typical draw, or 12VDC input; supports both powered and passive installation scenarios
• Dual MicroSD Expansion to 512GB: Built-in microSD/SDHC/SDxC card slots (up to 256GB per slot, 512GB total) enable edge storage for continuous or event-based recording without external NVR dependency
• Extended Operating Temperature Range: Rated for -40°C to +60°C operation ensures reliable performance in harsh outdoor environments, from arctic to desert deployments
• Enterprise-Grade Cybersecurity: TPM 2.0 with FIPS 140-2 Level 2 certification, encrypted firmware, secure boot, signed firmware, IEEE 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP), and AES-256 SD card encryption protect against unauthorized access
• ONVIF Standards Compliance: ONVIF Profile S, G, and T support ensures seamless integration with standard VMS platforms and third-party management systems
• Compact Outdoor-Ready Housing: 160mm diameter aluminum body (RAL 9003 white) weighs 1.1 kg and fits single, double, 4" octagon, and square gang boxes for flexible mounting on walls, ceilings, or existing electrical infrastructure
• 4GB RAM and 512MB Flash Storage: Robust on-device compute resources support reliable video processing and enable edge-based analytics capabilities
• Multiple API Options: SUNAPI (HTTP API) and Hanwha Vision Open Platform support enable custom integrations, middleware deployment, and third-party application development

Hanwha XNF-9010RV/KAP Integration & Compatibility

The XNF-9010RV/KAP integrates with ONVIF-compliant VMS platforms via Profile S, G, and T support. Programmable via SUNAPI (HTTP API) and Hanwha Vision Open Platform, the camera supports direct cloud connection with optional gateway deployment. Digest authentication and brute-force attack prevention secure user access. IP-based access control restricts device communication, while secure firmware signing and secure boot prevent unauthorized code execution. Credentials and compression are encrypted for live recording and export. System, access, and event logs are managed through audit controls, and device identity is confirmed via Hanwha Vision Root CA certificates. Compatible mounting options include single, double, 4" octagon, and square gang boxes, enabling retrofit installation in standard electrical enclosures.
