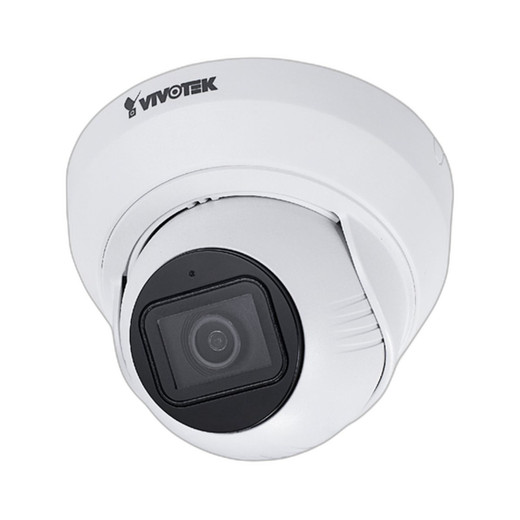

Vivotek Vortex IT839 H 5MP Outdoor WDR Pro Fixed Microphone IP Camera

Vivotek IT839-H 5MP Outdoor WDR Pro IP Camera

The Vivotek Vortex IT839-H is a professional-grade 5MP outdoor IP camera engineered for demanding surveillance environments. Built with a 1/2.7" progressive CMOS sensor and WDR Pro technology, this fixed camera delivers exceptional image clarity across challenging lighting conditions—from bright daylight to near-darkness. The camera's robust metal construction and IK08 impact rating ensure reliability in harsh outdoor settings, while its comprehensive analytics suite enables intelligent monitoring without constant human oversight.

Key Features

• 5MP resolution (2560 x 1920) with 15fps video streaming
• WDR Pro technology for balanced exposure in mixed lighting
• Day/night capability with 30-meter IR illumination range
• Integrated one-way microphone with audio detection
• Advanced video analytics: intrusion, line crossing, loitering, and object detection
• 103° horizontal field of view for wide area coverage
• Pan 359° / Tilt 75° / Rotate 180° mechanical adjustment
• Built-in 256GB microSD card for local recording
• PoE powered (IEEE 802.3af Class 0, max 7.4W)
• Support for up to 6 simultaneous clients

Technical Specifications

The IT839-H features a fixed 2.8mm lens with F2.0 aperture, delivering 0.06 lux minimum illumination in color mode and 0.01 lux in black and white. Its variable shutter speed (1/5 to 1/32,000 sec) ensures optimal exposure across dynamic scenes. Video streams efficiently at HD resolution with 1.2Mbps bandwidth or SD mode at 300Kbps, accommodating bandwidth-constrained networks. The camera supports multiple protocols including RTSP, HTTP/HTTPS, IPv4/IPv6, and TLS 1.2 encryption for secure operation.

Analytics and Intelligence

Built-in people analytics enable intrusion detection, line crossing detection, loitering monitoring, and scene search capabilities. Vehicle analytics offer identical detection modes for traffic and perimeter security applications. Object detection includes unattended object monitoring and missing object alerts—critical for loss prevention and infrastructure protection. Audio detection adds another dimension to incident response by triggering alerts on abnormal sound levels.

Installation and Management

The IT839-H operates reliably across 20–50°C working temperatures and withstands 98% RH non-condensing humidity, making it suitable for diverse climates. Its compact form factor (Ø122 x 99mm with bracket) facilitates discreet placement. Pan/tilt/rotate adjustability allows field optimization without lens replacement. Secure boot and signed firmware protect against unauthorized modification, while HTTPS/TLS encryption safeguards video streams in transit.

Applications

Ideal for perimeter security, parking lot monitoring, building entrances, traffic management, and asset protection. The fixed wide-angle lens and area analytics make it particularly suited to retail, logistics, municipal, and campus environments where comprehensive passive monitoring is required.

Karl Wilson

The IT839-H balances performance and operational efficiency for outdoor IP camera deployments. Its 5MP sensor and WDR Pro engine deliver forensic-quality imagery without requiring high-end processing overhead. The integrated microphone and broad analytics toolkit reduce reliance on additional hardware—a practical consideration for multi-camera roll-outs.

The 256GB onboard storage provides days of continuous backup recording, reducing NVR dependency for edge deployments. PoE power consumption remains modest (under 7.4W), enabling extended run lengths over standard Cat5e cabling. Fixed optics eliminate mechanical failure points common in PTZ designs, favoring long-term durability in outdoor conditions.

The 120-month warranty underscores Vivotek's confidence in component longevity. For integrators, the breadth of detection modes and protocol support—RTSP, WebRTC, HTTPS—eases VMS integration across enterprise and open-source platforms. Note: 15fps frame rate is adequate for forensic review and real-time monitoring but lower than high-motion applications may require; confirm compatibility with your storage and bandwidth constraints before deployment.
