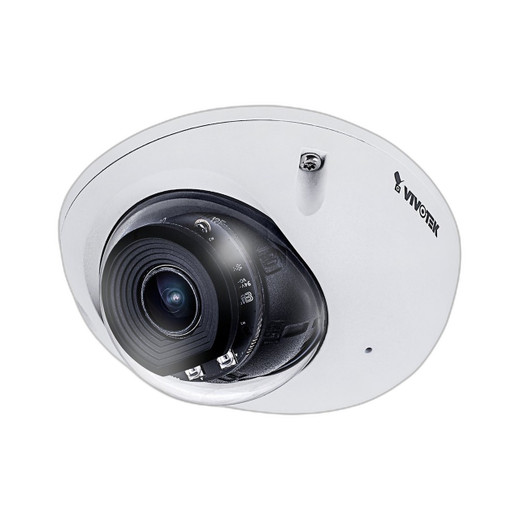

Model:
MD9560-H(3.6mm)
CPU:
Multimedia SoC (System-on-Chip)
Flash:
128 MB
RAM:
256 MB
Sensor Type:
1/2.9" Progressive CMOS
Max. Resolution:
1920x1080 (2MP)
Lens Type:
Fixed-focal
Focal Length:
MD9560-H(3.6mm): f = 3.6 mm
Aperture:
MD9560-H(3.6mm): F2.0
Iris Type:
Fixed-iris
Field of View:
MD9560-H(3.6mm): 89° (Horizontal); 47° (Vertical); 105° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
Minimum Illumination:
MD9560-H(3.6mm): 0.16 lux @ F2.0 (Color); 0.01 lux @ F2.0 (B/W); 0 lux with IR illumination on
Pan Range:
±30°
Tilt Range:
90°
Rotation Range:
±180°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Capacity:
Slot type: MicroSD/SDHC/SDXC card slot; Seamless Recording
Video Compression:
H.265, H264, MJPEG
Maximum Frame Rate:
30 fps @ 1920x1080
Maximum Streams:
3 simultaneous streams
S/N Ratio:
MD9560-H(3.6mm): 52 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bitrate, Smart Stream III
Image Settings:
Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control,ain, backlight compensation, privacy masks; Scheduled profile settings
Audio Capability:
One-way Audio
Audio Compression:
G.711,.726, MPEG-2 AAC-LC
Audio Interface:
Built-in microphone; External line input
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection,Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Connectivity:
Wired
Compatibility:
Supported, specification available at www.onvif.org
Analytics:
Five-window video motion detection
VADP Package:
Trend Micro (3-year free trial)
Event Trigger:
Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event
Event Action:
Event notification via digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
M12 for Network/PoE connection*1; Audio input*1; Digital input*1 (30V, 1A); Digital output*1 (12V, 50mA)
LED Indicator:
System power and status indicator
Input Voltage:
IEEE 802.3af PoE Class 2
Power (Max:
Max. 5.5 W (IR on); Max. 3.3 W (IR off)
Dimensions:
98 x 54 x 110.8 mm
Weight:
approx. 400 g
Casing:
IP67, IP66, IK10, NEMA 4X
Features:
EMC: CE (EN 55032, EN 55024 Class B, EN 50121-4, EN 50121-3-2), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B);; Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Operating Temperature:
Starting Temperature: -25°C ~ 55°C (-13°F~ 131°F); Working Temperature: -25°C ~ 60°C (-13°F~ 140°F) (IR off); -25°C ~ 55°C (-13°F~ 131°F) (IR on); Maximum (intermittent): 70 °C (158 °F)
Humidity:
0.98
Operating System:
Microsoft Windows 8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, screwdriver, alignment sticker, desiccant bag;
Frame Rate:
30fps
Product Type:
Dome
Power Type:
PoE
IP Rating:
IK10
Resolution:
2MP
Night Vision:
IR
