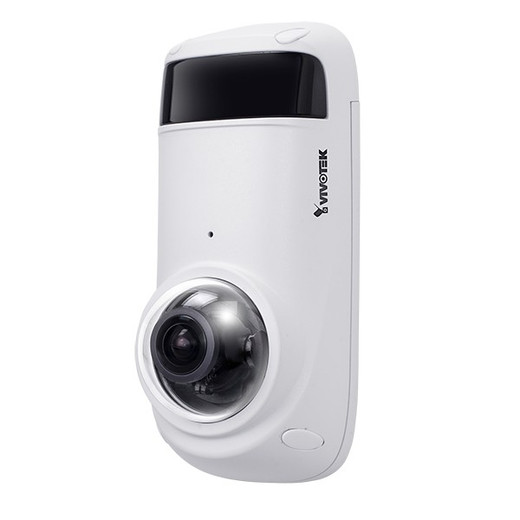

Model:
CC9381-HV
CPU:
Multimedia SoC (System-on-Chip)
Flash:
256 MB
RAM:
512 MB
Sensor Type:
1/2.7" Progressive CMOS
Max. Resolution:
2560x1920 (5MP)
Lens Type:
Fixed-focal
Focal Length:
f = 1.45 mm
Aperture:
F2.2
Iris Type:
Fixed iris
Field of View:
180° (Horizontal); 120° (Vertical); 180° (Diagonal)
Shutter Time:
1/5 sec. to 1/32,000 sec.
WDR Technology:
WDR Pro
Day/Night:
Yes
Removable IR-cut Filter:
Yes
IR Illuminators:
Built-in IR illuminators, effective up to 15 meters with Smart IR, IR LED*4
Minimum Illumination:
0.11 lux @ F2.2 (Color); 0.01 lux @ F2.2 (B/W); 0 lux with IR Illuminators on
Tilt Range:
±25°
Pan/Tilt/Zoom Functionalities:
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Capacity:
Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video Compression:
H.265, H.264, MJPEG
Maximum Frame Rate:
H.265: 20 fps/30 fps @ 2560x1920 (WDR Pro on/off); H.264: 20 fps/25 fps @ 2560x1920 (WDR Pro on/off); MJPEG: 20 fps/20 fps @ 2560x1920 (WDR Pro on/off)
Maximum Streams:
3 video streams (Up to 8 configurable profiles)
S/N Ratio:
62 dB
Dynamic Range:
120 dB
Video Streaming:
Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings:
General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness,am
Audio Capability:
One-way Audio
Audio Compression:
G.711,.726
Audio Interface:
Built-in microphone
Effective Range:
5 meters
Users:
Live viewing for up to 10 clients
Security:
Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols:
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Connectivity:
Wired
Compatibility:
Profile, S, T supported, specification available at www.onvif.org
Analytics:
Five-window video motion detection
VADP Package:
Trend Micro IoT Security (1-year free trial), VIVOCloud
Event Trigger:
Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection,
Event Action:
Event notification via email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
Connectors:
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
LED Indicator:
System power and status indicator
Input Voltage:
IEEE 802.3af PoE Class 0
Power (Max:
Max. 9.12 W/5.37 W (IR on/off)
Dimensions:
159.9 x 71.92 x 60.2 mm (Dome to rear panel), 39.2 mm (Flat to rear panel)
Weight:
492 g
Features:
EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC
Operating Temperature:
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F); Working Temperature: -30°C ~ 50°C (-22°F~ 122°F)
Humidity:
90%
Operating System:
Microsoft Windows 10/8/7; Mac 10.12 (Chrome only)
Web Browser:
Chrome 58.0 or above; Internet Explorer 10/11
Other Players:
VLC: 1.1.11 or above
Packing Contents:
Quick installationuide, mounting bracket, tilt bracket, screw pack
Frame Rate:
30fps
