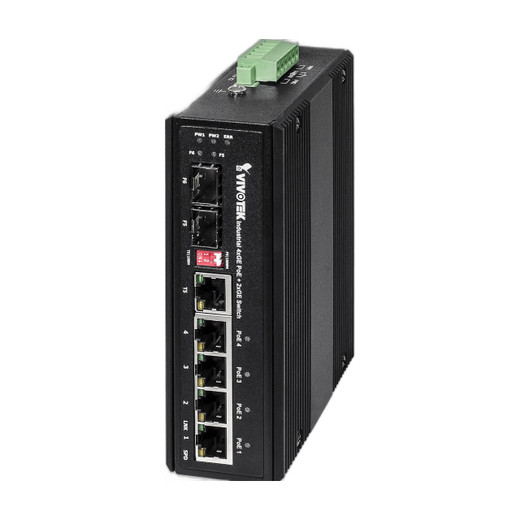

Vivotek AW-IHT-0601 Industrial 4-Port 30W PoE+ Switch

Vivotek AW-IHT-0601 Industrial 4-Port 30W PoE+ Switch

The Vivotek AW-IHT-0601 is a rugged industrial-grade network switch designed to deliver reliable connectivity and power distribution in demanding environments. With four gigabit PoE+ ports delivering 30W per port and three SFP fiber optic slots, this switch provides the flexibility and performance needed for complex surveillance and industrial networking deployments. Built to withstand extreme temperatures, humidity variations, and harsh operational conditions, the AW-IHT-0601 is engineered for mission-critical applications where uptime and durability are paramount.

Key Features

• Four 30W PoE+ Ports: Each RJ45 port delivers up to 30W of power, supporting high-performance IP cameras, thermal imaging devices, and other power-hungry network equipment
• Three SFP Fiber Slots: One dedicated gigabit SFP port plus one combo RJ45/SFP port enable long-distance fiber connectivity for backbone network expansion
• 120W Total PoE Power Budget: Supports simultaneous operation of all four PoE+ ports at maximum output (24V DC ~ 56V DC input)
• Redundant Dual Power Inputs: PW1 and PW2 connections (12~56VDC) with automatic failover for mission-critical installations
• Industrial-Grade Construction: Rugged metal housing with IP30 protection rated for -40°C to +75°C operating temperature range
• Advanced Switching Capability: 12 Gbps backplane with store-and-forward transmission and 128 KB buffer memory ensures smooth data handling
• Comprehensive Safety Protection: Over-current protection, circuit shorting protection, and alarm relay outputs for system monitoring
• DIN-Rail and Wall Mounting: Flexible installation options for both cabinet and field deployments

Technical Specifications

• Four gigabit ethernet ports (RJ45) with auto-MDI/MDI-X and auto-negotiation
• One dedicated gigabit SFP port plus one combo gigabit RJ45/SFP port
• Full IEEE 802.3af/at PoE+ compliance with auto PD detection
• Supports 10Base-T, 100Base-TX, and 1000Base-T/X standards
• Jumbo frame support up to 9 KB for enhanced throughput
• LED indicators for power, error, LAN, and PoE status monitoring
• Compact dimensions: 142 x 105 x 43 mm; Weight: 0.68 kg
• Certifications: CE, C-Tick, FCC, VCCI, LVD

Applications

The AW-IHT-0601 is ideal for industrial surveillance systems, thermal imaging networks, remote monitoring stations, factory automation, traffic management systems, and any deployment requiring robust PoE+ distribution with extended fiber connectivity options. Compatible with Vivotek network cameras and thermal imaging equipment, it seamlessly integrates into complex networked security infrastructures.

Optional Accessories

Expand connectivity with industrial SFP transceivers supporting multimode fiber up to 2 km or single-mode fiber up to 40 km. Optional DIN-rail and wall-mount power supplies (120W, 48~54VDC or 54VDC) provide flexible power distribution solutions.

Karl Wilson

The AW-IHT-0601 distinguishes itself through dual redundant power inputs and exceptional temperature tolerance (-40°C to +75°C), critical for outdoor and uncontrolled environment deployments. The combination of four 30W PoE+ ports with fiber optic expansion capability creates a hybrid architecture suitable for both dense edge device deployment and long-distance backbone connectivity. The 120W total PoE budget at higher voltages (24~56VDC) enables true simultaneous multi-device powering without derating.

Industrial-standard compliance testing (EN 55022/24, EN 50155, EN 60068 series) confirms suitability for railway, automotive, and factory automation sectors. The store-and-forward architecture with 128 KB buffer and 12 Gbps backplane provides deterministic switching behavior essential for real-time surveillance and thermal imaging applications. For integrators, the compact DIN-rail form factor, comprehensive protection mechanisms, and relay alarm outputs streamline deployment in control cabinets and remote installations where manual intervention is limited.
