Speco VLD5 2MP HD-TVI Vandal Dome Camera

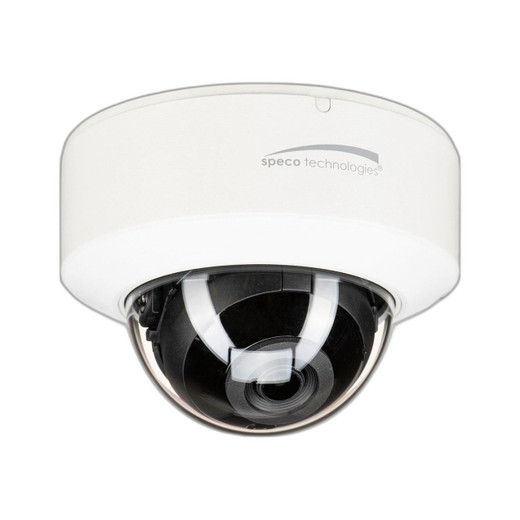

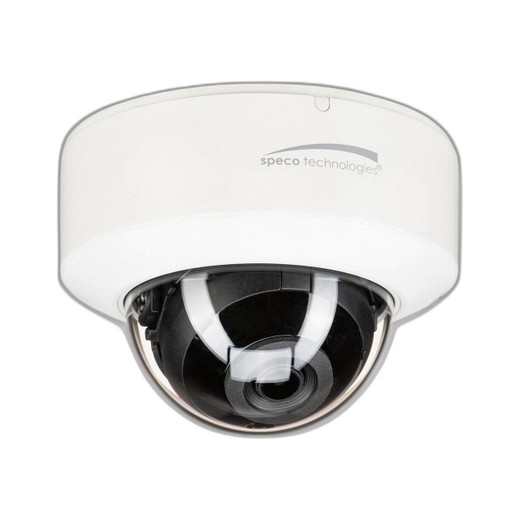

Speco Technologies VLD5 2MP HD-TVI Dome Camera

Overview

The Speco Technologies VLD5 is a compact fixed-lens HD-TVI dome camera designed for outdoor surveillance installations requiring vandal resistance and weather protection. This 2MP camera delivers 1920x1080 resolution at 30 frames per second, making it suitable for perimeter monitoring, entry points, and general-area coverage in facilities where durability and reliability are non-negotiable. The VLD5 includes an integrated junction box to simplify field installation and reduce component count.

When this is the correct choice

The VLD5 is the right choice when you need a fixed-lens, outdoor-rated dome camera with strong vandal protection for budget-conscious deployments. Select this model if your site requires IP67 environmental sealing and IK10 impact resistance without the complexity of varifocal optics. The included junction box makes it ideal for integrators seeking faster installation and fewer field connections. This camera works well in retail parking lots, building perimeters, light industrial facilities, and municipal surveillance projects where a straightforward, durable fixed-focal-length option meets requirements.

When to choose a different model

If your application demands pan-tilt-zoom capability, variable focal lengths, or edge-based analytics (object detection, people counting, heat mapping), consider a varifocal or PTZ camera instead. For indoor-only environments without vandalism risk, a non-domed form factor may reduce cost and installation effort. If you require advanced features like two-way audio, microSD recording, or deep-learning analytics, evaluate higher-tier models with integrated intelligence.

Optics and field of view

The VLD5 features a fixed 2.8mm lens, delivering a wide field of view optimized for general surveillance coverage. A fixed lens simplifies deployment—there is no focus adjustment required—and reduces points of failure in outdoor environments. The 1/2.8" CMOS sensor matches the optical design for consistent image quality across the scene.

Imaging performance and low light

This 2MP camera captures 1920x1080 resolution at 30 fps, providing adequate clarity for identification tasks at moderate distances. The VLD5 incorporates true wide dynamic range (WDR) to handle mixed lighting conditions—such as backlit entry points or scenes with direct sun and shadow—ensuring balanced exposure without washout or loss of detail in dark areas. Infrared illumination supports low-light operation, extending surveillance capability into nighttime or poorly lit zones.

Analytics and edge capabilities

The VLD5 operates as a traditional fixed camera without edge-based video analytics. It is designed for straightforward video capture and streaming to a central VMS or recording device. Organizations requiring on-camera motion detection or metadata enrichment should evaluate models with built-in intelligence.

Video encoding and streaming

As an HD-TVI camera, the VLD5 transmits uncompressed or minimally processed video over coaxial cabling to a compatible DVR or hybrid recorder. HD-TVI simplifies cabling infrastructure—existing analog coax runs can often be reused—and reduces latency compared to IP streaming. The camera operates at 30 fps to maintain smooth motion representation in surveillance footage.

Network and security

The VLD5 supports ONVIF Profile I compliance, enabling basic interoperability with ONVIF-compatible VMS platforms and management tools. This ensures you are not locked into proprietary software and can integrate the camera into multi-vendor surveillance ecosystems as your infrastructure evolves.

Environmental and durability ratings

Built for harsh outdoor environments, the VLD5 carries an IP67 rating, providing complete protection against dust and immersion in up to 1 meter of water for 30 minutes. The IK10 vandal rating indicates resistance to direct impact and deliberate tampering—critical for public-facing or high-risk locations. The camera operates reliably across a wide temperature range of -22°F to 122°F (-30°C to 50°C), accommodating freeze-thaw cycles and extreme seasonal heat without performance degradation.

Power and installation notes

The VLD5 operates on DC 12V power, delivered via analog camera cabling or auxiliary wiring. AC/DC power supplies are widely available and cost-effective, making field power distribution straightforward. The included junction box serves as a protective terminal point for power connections and video leads, reducing on-site assembly time and improving weatherproofing. At 1.28 lbs, the camera is lightweight enough for standard dome bracket and arm installations without reinforcement.

What is included

The Speco VLD5 package includes the dome camera unit and integrated junction box. Contact us for complete package details and mounting hardware compatibility.

Eden Phillips

During planning for a municipal perimeter security refresh, I evaluated the Speco VLD5 as a candidate for high-vandalism zones. The combination of IK10 rating and IP67 sealing makes this camera exceptionally durable in environments where lighter domes fail within 12–18 months. The included junction box is a practical touch that reduces field labor and eliminates ad-hoc terminal blocks.

Technical Highlights:

• 2MP @ 30fps: Captures 1920x1080 resolution at full frame rate, adequate for identification at moderate distances in parking lots and perimeter routes.
• True WDR: Balances exposure in high-contrast scenes (backlit entries, mixed sun and shadow), preventing loss of detail in shadows or washout in bright areas.
• DC 12V simplicity: No PoE infrastructure required; works with standard analog power supplies and coax distribution, reducing upfront cost in legacy or hybrid systems.
• IK10 + IP67: Survives direct impact and full water immersion, essential for outdoor public spaces and industrial facilities with high physical stress.

Deployment Considerations:

• Fixed 2.8mm lens is wide; plan camera placement to avoid excessive coverage overlap or wasted field of view in narrow corridors.
• HD-TVI transmission requires compatible DVR or hybrid recorder; confirm backend equipment supports the format before ordering.
• Operating range of -22°F to 122°F covers most North American climates; verify IR performance in your specific low-light environment and adjust lighting if necessary.
• ONVIF Profile I compatibility enables basic VMS integration; do not assume all vendor features are supported—test with your chosen platform during pilot phase.

The VLD5 is a no-nonsense, rugged fixed-lens workhorse. It excels in high-vandalism outdoor environments where durability and cost-effectiveness matter more than advanced analytics or focal length flexibility. Integrators should specify this model confidently for municipal, retail, and industrial perimeter applications.
