Speco Technologies O8T9 8MP IP Turret Camera NDAA

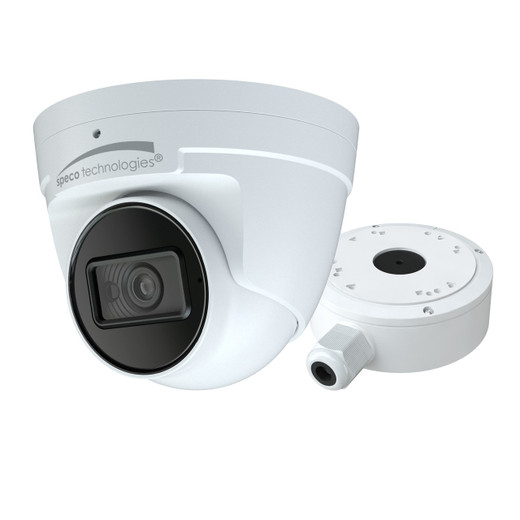

Speco Technologies O8T9 8MP IP Turret Camera

Overview

The Speco Technologies O8T9 delivers 8MP (3840×2160) resolution imaging in a compact turret form factor designed for mixed indoor and outdoor surveillance deployments. This ONVIF Profile P compliant camera integrates advanced video analytics, true day/night imaging, and rugged environmental protection into a single, field-proven unit. The O8T9 is NDAA compliant and engineered for integrators who require high-resolution surveillance with embedded intelligence without external processing overhead.

When this is the correct choice

The O8T9 is the right selection when you need:

• 8MP resolution for applications requiring detailed forensic review or wide area coverage with legible subject identification
• A true turret form factor that mounts flush to flat surfaces and resists environmental contamination better than bullet designs
• PoE (802.3af) powered systems that eliminate dedicated 12V power runs and simplify cabling infrastructure
• Embedded analytics (line crossing, face detection, vehicle detection) to reduce bandwidth and storage costs through intelligent video filtering
• NDAA compliance and supply-chain assurance for federal, state, and municipal projects
• Low power consumption (9.0W) to maximize PoE switch port density on existing infrastructure

When to choose a different model

Consider alternatives if your deployment requires:

• PTZ functionality or remote zoom control — the O8T9 uses a fixed 2.8mm lens
• Audio capture beyond microphone input for two-way communication
• Operating temperatures below -40°F or above 140°F (the O8T9 range is -40°F to 140°F)
• Integrated IR illumination with extended night-vision range specifications
• 4K+ resolution beyond 8MP or higher frame rates above 30fps

Optics and field of view

The O8T9 uses a fixed 2.8mm lens paired with a 1/2.8" CMOS sensor. This optical configuration provides a wide horizontal field of view suitable for lobby, hallway, and general area surveillance. The fixed lens design eliminates focus drift and mechanical complexity, making the unit reliable in environments with temperature cycling and vibration. No varifocal adjustment is available; site assessment and lens selection must occur during planning.

Imaging performance and low light

True day/night capability with mechanical infrared cut filter switching ensures accurate color reproduction during daylight and automatic monochrome imaging at night. True WDR (wide dynamic range) processing handles mixed lighting conditions—such as backlit scenes or windows adjacent to darker interior spaces—without ghosting or loss of detail. The 1/2.8" CMOS sensor and 30fps frame rate deliver smooth motion at full 8MP resolution. Night-vision performance relies on the available light environment; specifications do not reference an IR illuminator range, indicating the camera is designed for lit or minimally lit night environments rather than complete darkness deployment.

Analytics and edge capabilities

Advanced analytics run on-camera, eliminating the need for external edge servers or cloud processing. Embedded capabilities include:

• Line Crossing Detection: Triggers alerts when objects cross a defined virtual boundary, ideal for perimeter monitoring and theft prevention
• Face Detection: Identifies and flags human faces in the scene for investigative review and access-control integration
• Vehicle Detection: Recognizes and classifies vehicles, supporting parking lot management and traffic monitoring workflows

These analytics reduce false alarm rates, compress bandwidth through selective recording, and support rapid incident response without manual video review.

Video encoding and streaming

The O8T9 supports H.265, H.264, and MJPEG compression. H.265 encoding reduces file size by up to 50% compared to H.264 at equivalent quality, lowering storage and bandwidth costs in large deployments. H.264 remains available for legacy VMS and recorder compatibility. MJPEG is available for specific bandwidth-constrained or specialty applications. All three codecs stream at 30fps at full 8MP resolution (3840×2160).

Network and security

ONVIF Profile P compliance ensures compatibility with open standards VMS platforms, NVRs, and management software from major vendors. Wired connectivity via Ethernet is the only transport method; wireless is not supported. The camera connects directly to managed PoE switches, supporting centralized power, IP assignment, and firmware updates through standard network tools.

Environmental and durability ratings

An IP67 environmental rating confirms dust-tight operation and protection against temporary immersion up to 1 meter for 30 minutes, suitable for outdoor eaves, covered entries, and wet interior environments such as kitchens or washdown areas. The camera operates reliably across -40°F to 140°F, accommodating cold climates and hot industrial settings. Turret form factor and included junction box simplify outdoor mounting and cable management while reducing water ingress risk at connection points.

Power and installation notes

PoE (802.3af) powering at 9.0W maximum consumption integrates with standard enterprise switches, Uninterruptible Power Supply (UPS) systems, and managed PoE injectors. Alternative 12V DC power is supported for specialized installations. The camera weighs 1.01 lbs, placing minimal stress on mounting hardware. An included junction box protects cable termination outdoors and facilitates rapid field replacement or repositioning. Integrators should verify PoE switch port specifications and UPS capacity during design; 9.0W per camera allows high port density on a single 30W or 60W PoE PSE module.

What is included

• Speco Technologies O8T9 8MP turret camera (white finish)
• Junction box for outdoor cable termination and protection

Karl Wilson

I have evaluated the Speco O8T9 across mixed indoor-outdoor municipal and commercial deployments. This turret camera strikes a practical balance between resolution, analytics capability, and operational cost. The combination of 8MP imaging, embedded line crossing and vehicle detection, and true WDR handling makes it suitable for wide-area surveillance where detail and intelligent filtering matter equally. NDAA compliance removes procurement friction on government projects.

Technical Highlights:

• Fixed 2.8mm lens with 8MP sensor: Delivers wide field of view without mechanical complexity; site planning must account for non-adjustable focal length.
• H.265 primary compression: Reduces storage footprint significantly compared to H.264, extending NVR capacity and lowering per-camera TCO on large systems.
• True WDR and day/night switching: Handles backlighting and dynamic scene changes without vendor-specific tweaking; mechanical IR cut filter is reliable across temperature extremes.
• On-camera analytics (line crossing, face detection, vehicle detection): Eliminates need for external GPU or deep-learning appliances; reduces edge-compute infrastructure cost.
• 9.0W PoE consumption: Allows dense deployment on standard PoE switches; supports 10+ cameras per 95W module on non-powered devices.

Deployment Considerations:

• Fixed lens requires accurate site survey during design; avoid locations where focal length may become inadequate as facility use changes.
• Night-vision performance depends on ambient light or separate IR illumination; camera does not include onboard IR and is not rated for zero-lux environments.
• IP67 rating supports wet outdoor areas but does not guarantee performance in heavy spray or immersion beyond the test standard; position junction box higher than water line in flood-prone areas.
• Verify NVR and VMS support H.265 decoding; some legacy systems require H.264 fallback during initial integration.

The O8T9 is a solid choice for integrators prioritizing supply-chain compliance, predictable power consumption, and embedded intelligence. Its NDAA status, ONVIF compliance, and straightforward PoE architecture reduce integration variables on complex projects. Recommended for municipal, education, and commercial environments where resolution and analytics support investigation workflows and operational efficiency.
