Speco Technologies O8FT1M 8MP Flexible Intensifier AI IP Turret

Speco Technologies O8FT1M 8MP Flexible Intensifier AI IP Turret Camera

Overview

The Speco Technologies O8FT1M is an 8MP network turret camera designed for outdoor and indoor surveillance applications requiring high-resolution imaging, extended infrared coverage, and embedded artificial intelligence. This camera combines a 1/1.8" CMOS sensor with a motorized 2.8-12mm varifocal lens and flexible intensifier technology to deliver clear footage across varying lighting conditions. The O8FT1M includes integrated edge analytics, PoE power delivery, and NDAA compliance, making it suitable for security integrators and IT managers deploying managed surveillance networks across distributed sites.

When this is the correct choice

The O8FT1M is ideal when you need a single turret camera for mixed indoor/outdoor perimeter monitoring, parking lot surveillance, or facility access points where motorized zoom and focus provide operational flexibility. Choose this model when your deployment requires:

• 8MP native resolution (3840×2160) for detailed identification at distance
• Extended IR illumination up to 164 feet for unlit or low-light areas
• Embedded analytics for motion detection, intrusion detection, line crossing, face detection, and vehicle detection without requiring external servers
• PoE power simplicity and a compact form factor that does not require separate power infrastructure
• NDAA compliance for federal and critical infrastructure deployments

When to choose a different model

Do not select the O8FT1M if you require PTZ (pan-tilt-zoom) motion, fixed-position wide-angle coverage without zoom, or extreme vandal resistance (IK ratings above IK08). If your site demands 12MP or higher resolution, or if you need two-way audio beyond basic microphone input, evaluate alternative Speco models.

Optics and field of view

The motorized 2.8-12mm varifocal lens provides focal length flexibility from wide-angle surveillance to telephoto identification work. This range allows integrators to adjust field of view post-installation without returning to the site, reducing labor and commissioning time. The lens mechanism is motorized, enabling remote focus and zoom adjustments through compatible ONVIF Profile G management platforms.

Imaging performance and low light

The 1/1.8" CMOS sensor paired with true Wide Dynamic Range (WDR) handles high-contrast scenes common in outdoor surveillance—backlit doorways, parking areas with mixed sun and shadow, and facility entrances. The camera supports day/night operation with an automatic IR cut filter and delivers infrared illumination to 164 feet, enabling object detection and identification in complete darkness. At 30fps at 8MP, the O8FT1M maintains smooth video motion for real-time monitoring and forensic review.

Analytics and edge capabilities

Embedded AI analytics execute at the camera edge, reducing bandwidth and server load. The O8FT1M detects motion, monitors line crossing at perimeter boundaries, triggers intrusion alerts within defined zones, identifies faces in crowds, and classifies vehicles by type. These capabilities support automated alerting workflows without centralized deep learning processors.

Video encoding and streaming

The camera supports H.265+ and H.264+ compression, offering bitrate efficiency for low-bandwidth sites and mobile viewing. MJPEG is also available for compatibility with legacy VMS platforms. H.265+ provides roughly 50% bitrate reduction compared to H.264 at equivalent quality, lowering storage costs and network utilization.

Network and security

The O8FT1M is ONVIF Profile G compliant, ensuring interoperability with third-party video management systems and integration platforms. Wired Ethernet connectivity via standard RJ45 eliminates wireless interference and ensures deterministic performance. NDAA compliance confirms the product meets U.S. federal procurement standards for domestic manufacturing and supply chain requirements.

Environmental and durability ratings

Rated IP67, the camera withstands dust and water immersion, making it suitable for outdoor mounting under eaves, on poles, or wall-mounted in wet environments. The operating temperature range of -40°F to 140°F covers most North American climates and controlled indoor facilities. The compact 1.45 lb weight simplifies mounting hardware selection and reduces structural load on junction boxes and brackets.

Power and installation notes

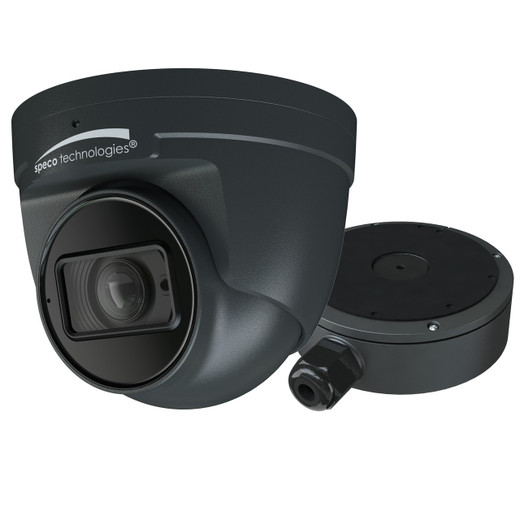

The O8FT1M operates on PoE (802.3af) at 10.5W maximum consumption, eliminating the need for separate 12VDC power supplies at the camera. Passive PoE injectors or managed PoE switches deliver power and data over a single Category 5e/6 cable run up to 100 meters. The camera includes a junction box for simplified conduit termination and weather sealing. Standard IP camera mounting brackets and junction box configurations apply; verify local electrical codes for outdoor installations.

What is included

Contact us for package details.

Karl Wilson

During deployment planning for a mixed-use facility network, the O8FT1M proved to be a reliable workhorse for outdoor perimeter and access-point monitoring. The motorized lens and embedded analytics reduce reliance on separate edge appliances, and the PoE power model simplifies cabling in retrofit installations. NDAA compliance is a hard requirement for many federal and infrastructure clients, and the O8FT1M delivers that assurance out of the box.

Technical Highlights:

• 8MP native resolution: Captures fine detail at distance; the 3840×2160 sensor output supports facial and vehicle identification when positioned correctly.
• 164-foot IR range: Covers large perimeter zones without supplemental lighting; longer range than budget models reduces the number of cameras needed for outdoor nighttime coverage.
• Motorized 2.8-12mm lens: Field of view adjustment after installation eliminates rework; particularly valuable when exact sight lines are uncertain during design.
• Edge analytics bundle: Motion, intrusion, line crossing, face, and vehicle detection run locally; reduces traffic to the VMS and enables faster alerting.
• H.265+ codec: Bitrate efficiency allows 8MP streams over modest bandwidth connections; critical for distributed sites with limited backhaul.

Deployment Considerations:

• PoE power delivery at 10.5W fits standard 802.3af budgets; confirm switch port allocation if daisy-chaining multiple cameras on a single circuit.
• IP67 rating enables outdoor mounting but does not guarantee vandal resistance; for high-risk sites, pair with protective housings or position cameras above accessible areas.
• ONVIF Profile G support ensures third-party VMS compatibility, but always test analytics rule syntax and alarm integration with your chosen platform before full deployment.

For integrators deploying multi-camera networks requiring federal compliance, forensic-grade resolution, and AI-driven alerting, the O8FT1M represents a cost-effective, low-maintenance choice that reduces overall system complexity and operating expense.
