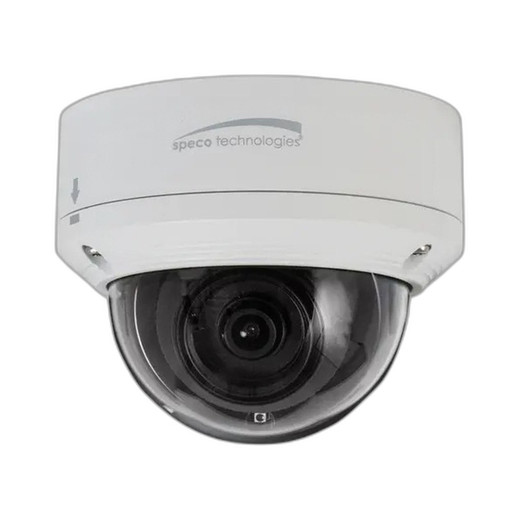

Speco O8FD4M 4K FIT Dome Camera 3-10mm Motorized

Speco Technologies O8FD4M 4K FIT Dome IP Camera

Overview

The Speco Technologies O8FD4M is a compact 4K fixed-installation-technology (FIT) dome camera engineered for professional surveillance deployments requiring high resolution, motorized zoom capability, and robust environmental protection. This model delivers 3840×2160 resolution at 25 fps, making it suitable for detail-critical applications in mixed indoor/outdoor environments. The integrated 3-10mm motorized lens provides flexible field-of-view adjustment without requiring lens replacement, and the included junction box streamlines installation integration.

When this is the correct choice

Select the O8FD4M when your deployment demands 4K imaging with motorized focal length adjustment in a compact form factor. This camera excels in environments where detailed identification and variable coverage zones are required—retail facilities, municipal infrastructure, educational campuses, and mixed-use properties. The IP67/IK10 ratings and wide operating temperature range (-40 to 122°F) support both climate-controlled and harsh outdoor installations. PoE power delivery (802.3af) and H.265 compression reduce infrastructure and bandwidth costs. Two-way audio capability adds communication functionality for access control or incident response workflows.

When to choose a different model

If your application requires fixed, non-adjustable optics, a simpler fixed-lens 4K camera may reduce cost. For deployments needing higher frame rates (above 25 fps), pan-tilt-zoom (PTZ) functionality, or heavier vandalism exposure, evaluate alternative form factors. Projects with strict DC 12V-only power constraints (avoiding PoE hybrid models) will need single-power-source alternatives.

Optics and field of view

The motorized 3-10mm varifocal lens provides approximately 113° (wide) to 34° (telephoto) horizontal field of view, delivering operational flexibility across variable scene depths. The lens integrates directly into the dome housing, eliminating external optics that complicate installation or increase vandalism exposure. Motorized adjustment permits remote focus and zoom control through the camera's network interface, supporting dynamic coverage adaptation without physical site visits.

Imaging performance and low light

The 1/2.5" CMOS sensor with day/night operation supports continuous surveillance across light conditions. True wide dynamic range (WDR) processing compensates for high-contrast scenes—critical in backlit entry points, mixed interior/exterior views, and reflective surfaces. Night vision capability with electronic low-light enhancement maintains usable imagery during darkness or minimal-illumination conditions. The 25 fps frame rate provides smooth motion capture for behavior analysis and forensic review.

Analytics and edge capabilities

Motion detection analytics run locally on the O8FD4M, enabling rule-based alerting and bandwidth optimization by triggering recording only during significant activity. Edge-based processing reduces dependency on external analytics servers and improves response latency for time-critical security events.

Video encoding and streaming

Multi-codec support includes H.265 (HEVC), H.264 (AVC), and MJPEG, accommodating diverse VMS and storage infrastructure. H.265 compression reduces file sizes and bandwidth consumption by approximately 50% compared to H.264 at equivalent quality, lowering storage costs and network saturation. Simultaneous multi-stream encoding supports primary recording, secondary mobile viewing, and analytics feeds from a single camera.

Network and security

ONVIF Profile S compatibility ensures interoperability with standard VMS platforms and third-party management tools. Wired connectivity (RJ45) eliminates wireless latency and interference concerns, providing deterministic performance for mission-critical surveillance. Network architecture integration follows enterprise security practices through standard ONVIF device discovery and control protocols.

Environmental and durability ratings

IP67 dust and water ingress protection permits installation in wet environments, equipment rooms with washdown procedures, or outdoor unhoused locations. IK10 vandal resistance withstands 20 joule impacts (equivalent to deliberate mechanical assault), qualifying the camera for high-risk public-facing deployments such as transit stations or street-level retail. Operating temperature range of -40 to 122°F supports arctic and desert climates without thermal derating or seasonal replacement.

Power and installation notes

The O8FD4M operates on PoE (802.3af) delivering 8W nominal consumption, or auxiliary DC 12V input for installations with existing 12V infrastructure. Low power draw permits daisy-chaining multiple cameras on single PoE injector circuits. The included junction box accelerates field wiring and reduces labor time during mount-out. Compact dome form factor integrates into standard recessed or surface-mount ceiling and wall infrastructure.

What is included

• Speco O8FD4M 4K FIT Dome Camera (dark grey finish)
• Motorized 3-10mm lens (integrated)
• Junction box

Marty Allison

I've evaluated the O8FD4M during deployment planning for multi-site retail and municipal contracts. The motorized lens is a practical efficiency win—you avoid field revisits for zoom adjustment and can optimize coverage post-installation through the network interface. The 4K sensor paired with H.265 encoding delivers detail and bandwidth discipline simultaneously, which matters when you're running 20+ cameras on shared WAN circuits.

Technical Highlights:

• 4K resolution with motorized zoom: 3840×2160 at 25 fps with remote 3-10mm focal length control eliminates need for multiple fixed-lens units across variable coverage zones.
• Dual power input: PoE (802.3af) and DC 12V support integrate into existing infrastructure without forced equipment refresh.
• True WDR processing: Handles backlit and mixed-light scenes without blown highlights or crushed shadows—critical in retail entry areas and lobby environments.

Deployment Considerations:

• IP67/IK10 durability rating confirms outdoor and high-traffic area suitability; plan for ceiling/wall anchoring that distributes the 2.6 lb weight across structural members rated for impact.
• 25 fps frame rate is adequate for human behavior analysis and forensic review; if you need 30+ fps across 4K resolution, escalate to higher-tier models.

The included junction box is a real labor saver in retrofit scenarios. Pair this with H.265 encoding to maximize storage efficiency. I recommend this camera for integrators managing multi-building deployments where flexible optics reduce overall camera count and logistics complexity.
