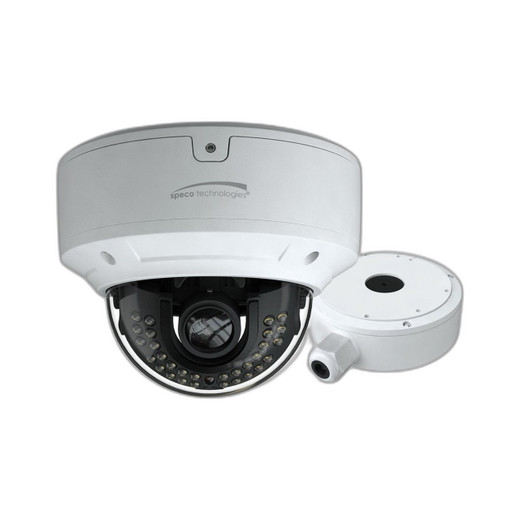

Speco Technologies O8D7M 8MP H.265 IP Dome Camera with IR

Speco Technologies O8D7M 8MP H.265 IP Dome Camera

Overview

The Speco Technologies O8D7M is an 8MP fixed dome surveillance camera designed for professional network-based deployments requiring high-resolution capture, motorized zoom flexibility, and robust environmental protection. This model combines a 1/1.8" CMOS sensor, H.265 video compression, and integrated IR night vision in a compact white dome housing suitable for both indoor and outdoor installations. The O8D7M includes a 2.8-12mm motorized varifocal lens, enabling operators to adjust field of view during deployment without requiring physical camera repositioning.

When this is the correct choice

Deploy the O8D7M in outdoor perimeter monitoring, mixed indoor/outdoor facility surveillance, and applications requiring remote zoom adjustment without camera relocation. Its IP67 rating and IK10 vandal resistance make it appropriate for exposed or high-traffic environments. The 8MP resolution supports detailed object identification across wide coverage areas, while the motorized lens enables field-of-view optimization across multiple deployment zones. H.265 compression reduces bandwidth and storage demands on network infrastructure, making it suitable for multi-camera deployments where bitrate efficiency directly impacts system scalability.

When to choose a different model

If your application requires pan-tilt-zoom capability, select a PTZ dome instead. For applications with extreme temperature demands below -40°F or above 140°F, verify alternative product lines. If your network lacks PoE infrastructure and DC 12V distribution is unavailable, confirm power availability before procurement. For deployments requiring fixed, non-adjustable focal length, a fixed-lens dome may offer lower cost and simplified installation.

Optics and field of view

The integrated 2.8-12mm motorized varifocal lens provides field-of-view adjustment from wide-angle to moderate telephoto without repositioning the camera. This motorized design allows operators or integrators to adjust magnification during commissioning or adapt coverage as facility layouts change. The varifocal construction supports diverse deployment scenarios within a single camera, reducing the need for multiple fixed-focal-length units.

Imaging performance and low light

The 8MP resolution (3840×2160) captures fine detail across expansive monitoring areas. The 1/1.8" CMOS sensor provides sufficient light sensitivity for both day and true day/night operation. Integrated IR illumination enables capture in complete darkness, supporting 24/7 surveillance without reliance on external lighting. True WDR (Wide Dynamic Range) processing balances highlights and shadows, preserving detail in scenes with mixed lighting—critical for entry points, loading docks, and areas with windows or skylights.

Analytics and edge capabilities

The O8D7M includes onboard analytics: line crossing detection for perimeter breach alerting, face detection for access control integration, and vehicle detection for traffic or lot monitoring. These edge-based functions execute on the camera itself, reducing reliance on backend servers and enabling rapid alerting without latency penalties.

Video encoding and streaming

H.265 (HEVC) primary compression reduces file size by approximately 50% versus H.264 at equivalent quality, directly decreasing storage and bandwidth costs. H.264 fallback support ensures compatibility with legacy or resource-constrained VMS platforms. The camera delivers 30 fps at full 8MP resolution, sustaining smooth motion capture for activity review and forensic examination.

Network and security

ONVIF Profile T compatibility ensures interoperability with standards-compliant video management systems and third-party integrations. Wired Ethernet connection via PoE eliminates dependency on wireless networks, ensuring consistent uptime and eliminating RF interference concerns. Microphone input enables audio capture for two-way communication or ambient sound monitoring in conjunction with external speaker infrastructure.

Environmental and durability ratings

IP67 rating confirms dust-tight sealing and immersion resistance to 1 meter for 30 minutes, protecting against rain, spray, and transient water ingress. IK10 vandal resistance rating indicates the dome can withstand 20 joule impacts without compromising optical or housing integrity—appropriate for exposed or high-contact environments. Operating temperature range of -40°F to 140°F supports deployment across temperate and warm climates without seasonal derating.

Power and installation notes

PoE (802.3af) power delivery via standard Cat5e/Cat6 Ethernet cabling simplifies installation by eliminating separate 12V DC runs. Alternative DC 12V power input provides flexibility for sites with existing 12V infrastructure. The included junction box facilitates weatherproof cable termination and power connection, supporting rapid field deployment.

What is included

• Speco O8D7M 8MP dome camera (white housing)
• 2.8-12mm motorized varifocal lens
• Junction box for weatherproof cable and power termination

James Everett

I've specified the Speco O8D7M across mixed indoor/outdoor facility deployments where motorized zoom and efficient encoding are cost drivers. The combination of H.265 compression and 8MP resolution directly reduces infrastructure load on NVRs and network switches without sacrificing image quality—a practical advantage when scaling from 4 cameras to 16+. The O8D7M's true WDR handles the real-world challenge of facilities with inconsistent lighting, particularly entry vestibules and loading bays where backlighting causes traditional cameras to wash out foreground detail.

Technical Highlights:

• 8MP + H.265 compression: Delivers forensic-grade resolution while reducing storage demand by ~50% versus H.264, enabling extended retention or larger camera counts on fixed NVR capacity.
• Motorized 2.8-12mm lens: Adjustable field of view during commissioning and operation without requiring camera relocation—reduces installation labor for multi-zone coverage.
• IP67 + IK10 ratings: Outdoor-grade durability appropriate for perimeter and high-traffic environments; true day/night + IR supports continuous operation without supplemental lighting.
• Edge analytics: Line crossing, face detection, and vehicle detection execute on-camera, enabling rapid alerting and reducing backend server load.

Deployment Considerations:

• Confirm PoE power budget: at 802.3af compliance, verify your switch or injector can sustain the O8D7M alongside other mid-power cameras on the same circuit.
• Motorized lens commissioning: Allocate setup time for zoom and focus adjustment; document final settings for future reference or maintenance.
• Lens cleaning: Outdoor domes accumulate dust and salt spray; incorporate periodic lens inspection and cleaning into maintenance schedules to preserve optical clarity.

The O8D7M justifies specification when bandwidth efficiency and remote zoom capability directly reduce project cost or improve operational flexibility. It is not a premium feature camera, but it is a reliable, standards-compliant workhorse for mid-range facility and perimeter surveillance.
