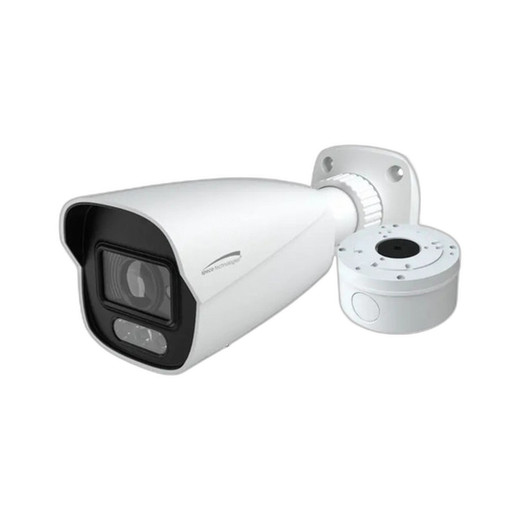

Speco Technologies O5LB1 5MP IP Advanced Analytics Bullet Camera

Overview

The Speco Technologies O5LB1 is a 5MP fixed bullet camera designed for outdoor and indoor surveillance deployments requiring low-light performance and embedded analytics. This wired IP camera combines a 1/2.7" CMOS sensor with white light intensifier technology to deliver clear video in challenging lighting conditions without relying solely on infrared illumination. The O5LB1 operates on standard PoE (802.3af) power, reducing installation complexity and supporting seamless integration into enterprise networks via ONVIF Profile T compatibility. Built to withstand harsh environmental conditions, this camera is sealed to IP67 standards and operates across an extended temperature range of -40°F to 140°F, making it suitable for both cold-weather and high-temperature applications.

When this is the correct choice

Deploy the O5LB1 when you need reliable 5MP outdoor video with white light performance as your primary low-light strategy. This camera is ideal for integrators working with budget-conscious facilities that require NDAA compliance and ONVIF standards without premium pricing. The white light intensifier approach works well in urban environments with ambient lighting, parking areas, entrances, and perimeter applications where supplemental illumination is available or acceptable. The embedded analytics package—motion detection, line crossing, intrusion detection, face detection, and vehicle detection—supports real-time event triggering and reduces backend processing overhead. Choose this model for PoE-powered networks where power consumption efficiency matters; at 9.0W typical, multiple units load standard switches without requiring PoE+ infrastructure.

When to choose a different model

Avoid this camera if your site lacks ambient lighting and you require pure infrared night vision. Do not select the O5LB1 for applications requiring motorized zoom, pan/tilt, or variable focal length. If your VMS requires ONVIF Profile G (streaming analytics) or proprietary camera firmware integration, verify compatibility before purchase. For extreme-distance perimeter detection (200+ meters) or situations where white light illumination is prohibited, consider thermal or high-performance IR alternatives.

Optics and field of view

The O5LB1 ships with a fixed 2.8mm lens, delivering a wider horizontal field of view suitable for corridor coverage, entrance monitoring, and mid-range perimeter applications. The fixed focal length simplifies installation and eliminates focus drift issues common in motorized zoom designs. At 5MP resolution (1980×1080 native capture), the sensor provides sufficient detail for face detection and vehicle plate reading within typical surveillance distances of 15–40 feet, depending on lighting and lens positioning.

Imaging performance and low light

The white light intensifier feature distinguishes this model from standard IR-only cameras. Rather than relying exclusively on infrared LEDs, the O5LB1 amplifies ambient white light (streetlights, parking lot floods, building illumination) to produce color video in low-light conditions. This approach reduces power consumption, extends lamp-free operation, and maintains color detail useful for forensics and face matching. The 1/2.7" CMOS sensor supports day/night operation with true wide dynamic range (WDR) processing, allowing the camera to handle scenes with mixed sunlit and shadowed areas without washing out critical details.

Analytics and edge capabilities

The O5LB1 integrates four analytics engines at the edge: motion detection, line crossing, intrusion detection, and face/vehicle detection. These capabilities eliminate the need to stream all video to a backend analytics server, reducing network bandwidth and storage costs. Security integrators can configure tripwire zones, perimeter crossing rules, and presence alerts directly on the camera or via ONVIF-compatible VMS platforms, providing immediate alerting for high-priority events.

Video encoding and streaming

H.265 (HEVC) compression is the primary codec, delivering 50% file size reduction compared to H.264 while maintaining visual quality. H.264 and MJPEG are also supported for backward compatibility with legacy VMS installations. The camera streams at 30 fps at native 5MP resolution, appropriate for general surveillance and forensic review. H.265 encoding keeps bandwidth requirements modest even in multi-camera deployments, supporting 24/7 recording on standard storage infrastructure.

Network and security

ONVIF Profile T (streaming) compliance ensures plug-and-play compatibility with hundreds of VMS platforms including Milestone, Genetec, Hikvision, Uniview, and others. The camera is NDAA-compliant, meeting U.S. Department of Defense procurement requirements for federal, state, and municipal customers. Built-in audio input (microphone) supports audio event correlation and two-way communication scenarios where permitted by facility policy.

Environmental and durability ratings

IP67 enclosure rating protects internal components from water jets and temporary submersion, suitable for outdoor pole mounting, eave installation, and light rain environments. The operating temperature specification of -40°F to 140°F covers cold-storage facilities, northern climates, and desert/high-heat applications. At 1.47 lb, the compact form factor suits pole, wall, and junction box mounting without requiring heavy-duty brackets or reinforcement.

Power and installation notes

The O5LB1 accepts both PoE (802.3af) and DC 12V power inputs, offering flexibility for installations where PoE infrastructure is unavailable. Power consumption of 9.0W typical makes the camera compatible with non-PoE+ switches, reducing infrastructure upgrade costs. The included junction box simplifies wiring and weatherproofing of power and network connections at the camera mount point.

What is included

• Speco Technologies O5LB1 5MP IP bullet camera
• Junction box for power and network termination
• 2.8mm fixed lens (pre-installed)

James Everett

I evaluated the Speco O5LB1 during planning for a mid-size municipal parking facility upgrade, and this camera earned its place in our specification for sites with adequate ambient lighting. The white light intensifier approach is refreshingly straightforward—it performs well where traditional IR solutions would require additional illumination hardware or create glare issues. The O5LB1's efficient 9.0W power draw meant we could deploy 16 cameras on a single non-PoE+ switch, reducing capital expense and simplifying cabling.

Technical Highlights:

• White Light + Day/Night: True WDR combined with white light intensifier handles mixed lighting without requiring separate IR and visible-light sensors.
• Edge Analytics: Motion detection, line crossing, intrusion, and vehicle/face detection reduce reliance on backend servers and enable immediate alerting at the camera level.
• NDAA Compliance: Suitable for federal and government procurement, reducing administrative overhead for qualified integrators.
• PoE Flexibility: Accepts both standard PoE and DC 12V, accommodating retrofit installations where PoE infrastructure is incomplete.

Deployment Considerations:

• White light performance assumes adequate ambient illumination (streetlights, building floods, etc.). Pure darkness requires supplemental white light fixtures or IR-enabled backup.
• H.265 compression reduces storage 50% versus H.264, but verify your VMS handles HEVC before standardizing; some legacy systems require H.264 fallback.
• Junction box inclusion speeds outdoor installation but plan for cable strain relief and conduit sizing during site surveys.

For integrators balancing cost, power efficiency, and regulatory compliance in moderate-to-well-lit outdoor environments, the O5LB1 is a solid performer that won't require continuous firmware patches or proprietary software licensing. ONVIF compliance and NDAA status make it a low-friction addition to multi-vendor installations.
