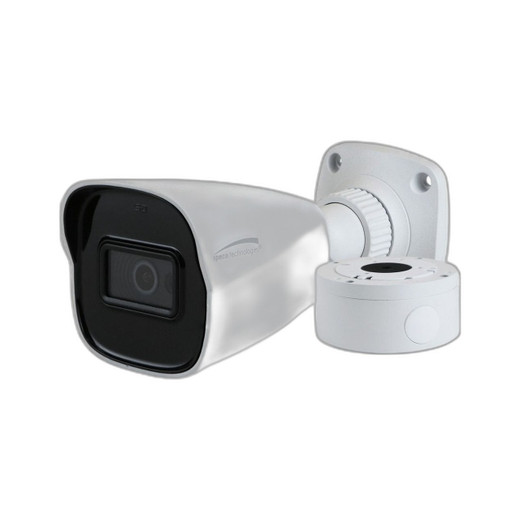

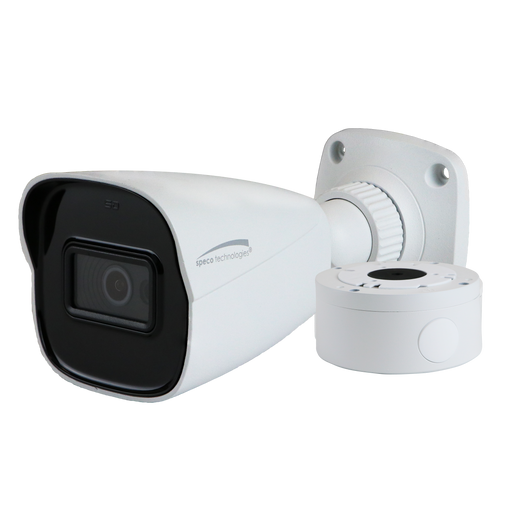

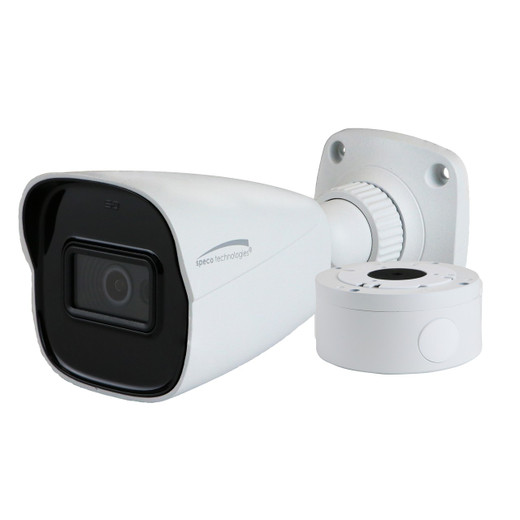

Speco Technologies O5B2 5MP Advanced Analytic IP Bullet IR 2.8mm

Speco Technologies O5B2 5MP Advanced Analytic IP Bullet Camera

Overview

The Speco Technologies O5B2 is a fixed 5MP IP bullet camera designed for outdoor and indoor surveillance deployments requiring advanced analytics and rugged environmental tolerance. This wired network camera delivers 2592×1944 resolution at 30 fps with integrated face detection analytics, true day/night capability, and infrared illumination for low-light environments. The O5B2 combines robust IP67-rated construction with ONVIF Profile T compatibility, making it suitable for integration into multi-vendor surveillance systems. NDAA compliance supports federal and institutional procurement requirements.

When this is the correct choice

Choose the O5B2 when you need a fixed-position outdoor or semi-outdoor bullet camera with built-in analytics for perimeter monitoring, entrance surveillance, or facility-wide coverage. The 2.8mm fixed lens provides a wide field of view suitable for general area monitoring. Face detection analytics enable rapid identification and forensic review of personnel. PoE power delivery simplifies installation in locations where DC 12V is unavailable. The IP67 rating and temperature range (-40°F to 140°F) support harsh outdoor deployments, including freezing climates and elevated heat environments. NDAA certification is essential for federal, state, and defense-sector integrations.

When to choose a different model

If your deployment requires varifocal or zoom capability for distant subject identification, select a camera with adjustable optics. If you need Pan-Tilt-Zoom (PTZ) functionality for tracking or dynamic coverage, the O5B2's fixed lens will not meet that requirement. For indoor-only, temperature-controlled environments without harsh weather exposure, a non-rated or IP54-rated compact camera may reduce cost. If two-way audio is a critical requirement and the integrated microphone and speaker are insufficient for your application, verify audio specifications against project requirements.

Optics and field of view

The O5B2 features a fixed 2.8mm lens delivering a wide horizontal field of view appropriate for general area surveillance. At 5MP (2592×1944), the sensor captures sufficient detail for face recognition and general threat assessment across typical perimeter and entrance zones. The fixed focal length eliminates focus drift and simplifies deployment—no field adjustment required after installation.

Imaging performance and low light

The 1/2.7" CMOS sensor provides true day/night operation with automatic IR cut filter switching. Integrated infrared illumination enables surveillance in complete darkness without external lighting. True Wide Dynamic Range (WDR) processing balances highlights and shadows in scenes with mixed lighting, such as backlit entrances or areas with direct sunlight and shadow zones. The 30 fps frame rate ensures smooth motion capture for forensic analysis and real-time monitoring.

Analytics and edge capabilities

Built-in face detection analytics enable automated identification and logging of personnel. This edge-based analytics capability reduces bandwidth and storage requirements by flagging relevant events without requiring all-frame transmission to a central VMS. Face detection supports rapid forensic search and archive review, reducing operator workload in multi-camera environments.

Video encoding and streaming

The O5B2 supports H.265, H.264, and MJPEG compression codecs. H.265 (HEVC) reduces bandwidth consumption by approximately 50% compared to H.264 at equivalent quality, lowering network load and storage costs. H.264 provides universal compatibility across legacy and modern VMS platforms. MJPEG streams individual frames, useful for low-bandwidth or archival applications. Simultaneous multi-codec streaming allows flexible client viewing without re-encoding.

Network and security

ONVIF Profile T compliance ensures standardized integration with third-party VMS, NVR, and management platforms. Wired connectivity via Ethernet eliminates wireless interference and provides deterministic network performance. The camera connects via standard RJ45 jack with integrated PoE power delivery.

Environmental and durability ratings

IP67 rating certifies dust and water resistance suitable for outdoor mounting under eaves, on poles, or wall-mounted in exposed locations. The operating temperature range of -40°F to 140°F (-40°C to 60°C) supports cold-climate and hot-climate deployments without additional environmental enclosures. A junction box is included for outdoor wiring integration and cable strain relief. The 1 lb weight enables standard bracket and pole mounting with minimal structural reinforcement.

Power and installation notes

The O5B2 operates via PoE (802.3af) or optional DC 12V power, reducing the need for dedicated electrical infrastructure when PoE-capable switches are available. PoE delivery over standard Cat5e/Cat6 Ethernet simplifies site survey and reduces installation labor. The included junction box provides outdoor-rated cable termination and loop-through connections for multi-camera runs.

What is included

• Speco Technologies O5B2 5MP IP bullet camera
• Junction box for outdoor installation and cable management
• White housing finish

Marty Allison

I've integrated the Speco O5B2 into several federal and institutional deployments where NDAA compliance and fixed-position perimeter coverage are non-negotiable. The O5B2 delivers practical value: IP67 durability handles exposure, face detection analytics reduce false-positive noise in VMS event logs, and the fixed 2.8mm lens provides consistent wide coverage without maintenance drift. PoE power simplifies site survey and reduces installation cost compared to runs requiring dedicated DC 12V infrastructure.

Technical Highlights:

• Face Detection Analytics: Edge-based analytics reduce bandwidth overhead and enable rapid forensic search without centralized processing.
• H.265 Compression: Native H.265 encoding cuts bandwidth and storage costs by ~50% versus H.264 at equivalent image quality.
• IP67 Outdoor Rating: Dust and water resistance certified for exposed outdoor mounting, eaves, and semi-sheltered pole installations across temperature extremes.
• ONVIF Profile T: Third-party VMS interoperability ensures vendor flexibility and future integration options.

Deployment Considerations:

• The fixed 2.8mm lens suits general area and entrance monitoring but not distant identification or tracking. Confirm field of view during site survey before purchase.
• True WDR is essential in mixed-lighting zones (backlit entrances, sun-and-shadow boundaries). Test in your specific lighting environment if contrast extremes are expected.
• Face detection requires adequate illumination (day mode or IR at night). Test analytics responsiveness at your site's minimum light levels before finalizing analytics rules.

The O5B2 is a reliable choice for NDAA-compliant federal and institutional projects requiring fixed outdoor perimeter or entrance coverage with embedded analytics. Straightforward PoE integration and IP67 durability reduce deployment complexity and long-term maintenance risk.
