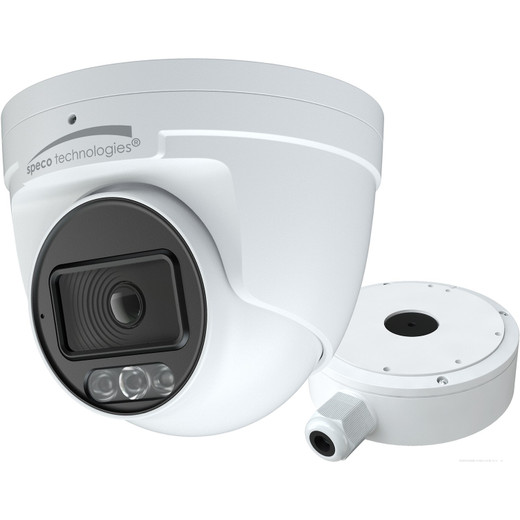

Speco Technologies O4LT2 4MP IP Advanced Analytics Turret Camera

Speco Technologies O4LT2 4MP IP Advanced Analytics Turret Camera

Overview

The Speco Technologies O4LT2 is a 4MP IP turret camera designed for outdoor and challenging indoor surveillance environments. This camera combines a 1/1.79" CMOS sensor with white light intensifier technology, delivering 2688x1520 resolution at 30 fps. The O4LT2 integrates motion detection, line crossing, and vehicle detection analytics at the edge, reducing bandwidth and enabling real-time event response. Built with an IP67-rated enclosure, it withstands demanding weather conditions while maintaining consistent image quality through wide dynamic range processing.

When this is the correct choice

The O4LT2 is ideal for integrators deploying outdoor perimeter security, parking lot monitoring, or facility entrances where 4MP resolution and white light supplementation provide sufficient detail without requiring pan-tilt-zoom functionality. Select this camera when you need edge-based analytics to reduce server load, require PoE simplicity for installation, and operate in environments spanning -40°F to 140°F. This turret form factor suits wall and soffit mounting in commercial and industrial settings.

When to choose a different model

If your deployment requires motorized lens adjustment, higher resolution (8MP+), or dedicated IR illumination with extended range (50m+), evaluate bullet or box camera alternatives. Environments with minimal electrical infrastructure or non-PoE legacy systems may benefit from standalone DC 12V units. For applications demanding panoramic coverage or multi-directional monitoring from a single mount point, consider multi-sensor platforms.

Optics and field of view

The O4LT2 features a fixed 2.8mm lens, a standard choice for general-area surveillance with approximately 110° horizontal field of view. This focal length balances perimeter coverage with facial detail at moderate distances (10–15 meters). The fixed lens eliminates focusing adjustments post-installation, reducing maintenance overhead and ensuring repeatable deployment across multiple sites.

Imaging performance and low light

Equipped with a 1/1.79" CMOS sensor, the O4LT2 captures full 4MP resolution (2688x1520) at 30 fps in both day and night modes. White light intensifier technology supplements passive low-light performance, providing illumination without thermal signatures. Wide dynamic range (WDR) processing manages high-contrast scenes—such as backlit entrances or mixed-shadow perimeters—maintaining detail in both bright and dark regions simultaneously. Day/night operation ensures 24/7 monitoring without mode switching delays.

Analytics and edge capabilities

Built-in analytics eliminate the need for external processing servers. Motion detection triggers alerts on pixel changes; line-crossing detection monitors directional boundary breaches; vehicle detection classifies and counts automotive traffic. These edge-based functions reduce storage bandwidth by transmitting only relevant video clips and metadata, critical for high-volume deployments.

Video encoding and streaming

The O4LT2 supports H.265 (HEVC), H.264, and MJPEG compression formats. H.265 encoding reduces file size by 50% compared to H.264 at equivalent quality, lowering bandwidth consumption and storage costs. Multiple codec options ensure compatibility with legacy VMS systems and modern IP infrastructure alike. The camera streams at 30 fps across all resolutions.

Network and security

ONVIF Profile G compliance guarantees interoperability with ONVIF-compliant VMS and management platforms, preventing vendor lock-in. Two-way audio support enables remote communication through connected systems. Wired Ethernet connectivity via PoE provides deterministic network performance and eliminates Wi-Fi interference risks in high-density deployments.

Environmental and durability ratings

IP67 rating certifies the O4LT2 against water ingress and dust contamination, suitable for coastal, agricultural, and industrial environments. Operating temperature range of -40°F to 140°F (-40°C to 60°C) covers arctic and desert climates without seasonal reconfiguration. The turret form factor sheds water and withstands UV exposure in extended outdoor service.

Power and installation notes

The O4LT2 operates on PoE (802.3af) at 5.5W maximum consumption, eliminating the need for separate power runs when deployed on PoE switches. This low power draw permits longer cable runs and reduces PSU sizing requirements. An alternative 12V DC power input option accommodates non-PoE infrastructure. Lightweight at 1.0 lb, the camera mounts to standard wall or soffit brackets without reinforcement.

What is included

Contact us for package details.

Marty Allison

I've evaluated the Speco O4LT2 in several mid-scale outdoor deployments, and it delivers solid performance for perimeter and facility-entry monitoring. The white light intensifier approach is refreshing—it eliminates the IR wash-out issues common in IR-only cameras under bright ambient light. The 4MP resolution and fixed 2.8mm lens strike a practical balance between coverage area and detail for license-plate and facial recognition at typical mounting heights.

Technical Highlights:

• White Light Intensifier: Supplements low-light imaging without thermal artifacts, ideal for mixed-light environments like parking lots with sodium vapor and LED fixtures.
• Edge Analytics: Motion detection, line-crossing, and vehicle detection run locally, reducing bandwidth overhead—critical in remote or bandwidth-constrained sites.
• H.265 Efficiency: Native H.265 support cuts storage footprint significantly, enabling longer retention periods on fixed storage budgets.
• IP67 Durability: Confirmed protection against weather and dust makes this camera reliable in coastal, dusty, and high-humidity zones without protective housings.

Deployment Considerations:

• Verify VMS ONVIF Profile G support before purchase; most modern platforms comply, but legacy systems may require adapters.
• Plan PoE switch placement to keep cable runs under 90m; the 5.5W power budget is PoE-standard, so daisy-chaining is unlikely to stress infrastructure.
• Test the white light intensifier in your actual lighting mix during pre-deployment; results vary significantly under tungsten versus LED sources.

The O4LT2 is a dependable choice for integrators seeking straightforward PoE turret performance without overpaying for PTZ or multi-sensor complexity. Its combination of white light, edge analytics, and IP67 hardening makes it a pragmatic fit for outdoor commercial security.
