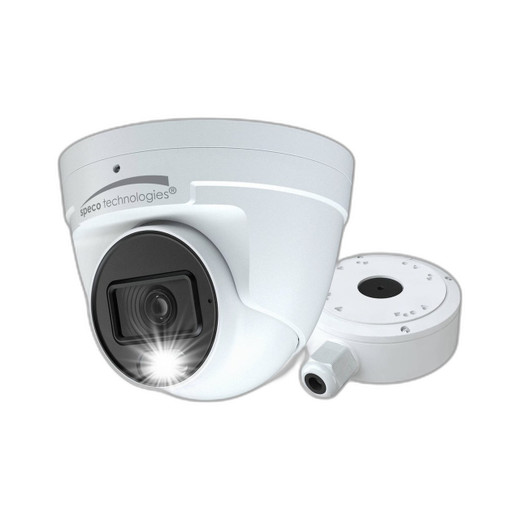

Speco Technologies O4LT1 4MP IP Advanced Analytics Turret Camera

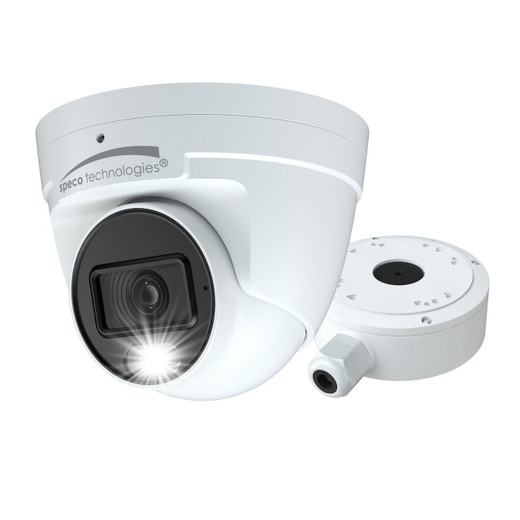

Speco Technologies O4LT1 4MP IP Turret Camera with Advanced Analytics

Overview

The Speco Technologies O4LT1 is a fixed turret-form IP camera delivering 4MP resolution (2560×1440) with white light intensifier technology for continuous operation across day and night conditions. Built for outdoor and semi-exposed environments, the O4LT1 combines a 1/3" CMOS sensor with True WDR imaging, H.265/H.264 compression, and edge-based motion and vehicle detection analytics. The camera operates on standard PoE (802.3af) power with minimal 5.5W consumption, making it suitable for cost-conscious network deployments. NDAA-compliant and ONVIF Profile P certified, the O4LT1 integrates into heterogeneous VMS and integrator ecosystems without proprietary constraints.

When this is the correct choice

Select the O4LT1 when you need a compact, low-power turret camera for outdoor perimeter, parking lot, or facility entrance monitoring. The white light intensifier design is ideal for environments where supplemental lighting is acceptable and where infrared bleed or heat concerns limit thermal night vision options. The 4MP resolution and 2.8mm fixed lens provide sufficient detail for facial recognition and license plate capture at typical security distances (10–25 feet). Motion and vehicle detection at the edge reduce false alarms and backend storage overhead. PoE power and IP67 weathering make installation straightforward in multi-camera deployments.

When to choose a different model

If your site requires extended low-light performance without supplemental lighting, consider a model with IR illumination and higher minimum lux ratings. If you need varifocal or zoom capability to cover variable distances, a fixed 2.8mm lens will limit flexibility. If you require pan-tilt-zoom (PTZ) functionality or higher frame rates exceeding 30fps, the O4LT1's fixed turret form and 30fps maximum are not suitable. For indoor-only or non-weathered installations, a non-IP-rated dome or turret may offer cost savings.

Optics and field of view

The O4LT1 features a fixed 2.8mm lens paired with a 1/3" CMOS sensor. This focal length delivers a moderate horizontal field of view appropriate for entry points, perimeter segments, and general surveillance areas. The fixed lens design eliminates focus drift and simplifies installation but removes the ability to re-frame after deployment. Verify site distance and coverage requirements before ordering to confirm the 2.8mm focal length meets your horizontal and vertical coverage goals.

Imaging performance and low light

The O4LT1 employs True WDR (wide dynamic range) to balance exposure across high-contrast scenes—critical for monitoring areas with windows, backlighting, or mixed indoor/outdoor transitions. The white light intensifier augments image brightness in low-ambient conditions, enabling usable video without infrared. This approach is effective in urban or semi-lit environments but assumes availability of ambient or supplemental light. The camera operates across -40 to 140°F, maintaining image quality in temperature extremes common to outdoor North American deployments.

Analytics and edge capabilities

Integrated motion detection and vehicle detection run on the camera itself, reducing reliance on server-side analytics and lowering bandwidth for alerting and forensics. These analytics enable rule-based triggering (alarm on vehicle presence, for example) and can suppress low-confidence motion events to reduce false positives. The O4LT1 supports ONVIF Profile P, ensuring compatibility with standard VMS platforms that consume these event streams.

Video encoding and streaming

The O4LT1 encodes video in H.265, H.264, and MJPEG formats at up to 30fps. H.265 delivers approximately 50% better compression than H.264 at equivalent visual quality, reducing bandwidth and storage footprint on large deployments. Administrators can select encoding based on backend infrastructure capabilities: legacy systems may require H.264, while modern deployments benefit from H.265 efficiency.

Network and security

ONVIF Profile P compliance ensures standardized configuration, metadata, and stream retrieval across multi-vendor VMS platforms. The O4LT1 is NDAA-compliant, meeting U.S. government procurement restrictions on camera origin and supply chain. JuncBox integration (when deployed as part of a Speco system) provides centralized management for multiple cameras.

Environmental and durability ratings

The O4LT1 carries IP67 rating, protecting against dust, water spray, and temporary submersion up to 1 meter for 30 minutes. This rating supports outdoor wall or soffit mounting in rain, snow, and washdown environments. The compact 1.0 lb weight and turret form minimize wind loading on bracket systems. Operating temperature range of -40 to 140°F covers extreme continental climates without derating performance.

Power and installation notes

The O4LT1 operates on PoE (802.3af) at 5.5W maximum consumption, requiring only a single Cat5e or Cat6 cable for power and data. This low wattage allows daisy-chaining multiple cameras on a single PoE+ switch port in many configurations. Alternatively, 12V DC power is supported for sites where PoE infrastructure is unavailable. Standard turret mounting brackets secure the camera to flat or curved surfaces.

What is included

Contact us for package details.

Eden Phillips

I evaluated the Speco O4LT1 during a recent outdoor perimeter refresh for a regional logistics facility. The white light intensifier approach is refreshing for sites where IR is either impractical or where you want to preserve the ability to record in visible light continuously. At 5.5W on PoE, the power efficiency is excellent—we consolidated eight cameras onto a single PoE+ port without concerns about exhausting available wattage.

Technical Highlights:

• White Light Low-Light Performance: The intensifier eliminates the need for separate IR modules and avoids thermal blooming in tight security perimeters. 4MP resolution at 2560×1440 captures enough detail for license plate and facial recognition at typical deployment distances.
• Edge Analytics Efficiency: Motion and vehicle detection run locally on the O4LT1, reducing false-positive alerts and cutting bandwidth consumption by filtering trivial motion events before transmission to the VMS.
• PoE Power and Compression: H.265 encoding combined with 5.5W PoE consumption makes this camera ideal for budget-conscious roll-outs. No separate power infrastructure required.

Deployment Considerations:

• Verify white light availability at your site. The O4LT1 performs well in semi-lit or urban environments; purely dark outdoor areas may need supplemental lighting or an IR-capable model.
• The fixed 2.8mm lens cannot be adjusted post-deployment. Confirm coverage geometry during pre-sale site survey to avoid reinstalls.
• IP67 rating and -40 to 140°F operating range support harsh outdoor conditions; pair with stainless-steel or powder-coated brackets in corrosive environments (coastal salt spray, industrial sites).

For integrators looking to balance cost, power efficiency, and visible-light imaging on compact outdoor deployments, the O4LT1 is a solid, standards-compliant choice. NDAA compliance simplifies government and sensitive-site procurement. Standard ONVIF support means easy VMS interoperability.
