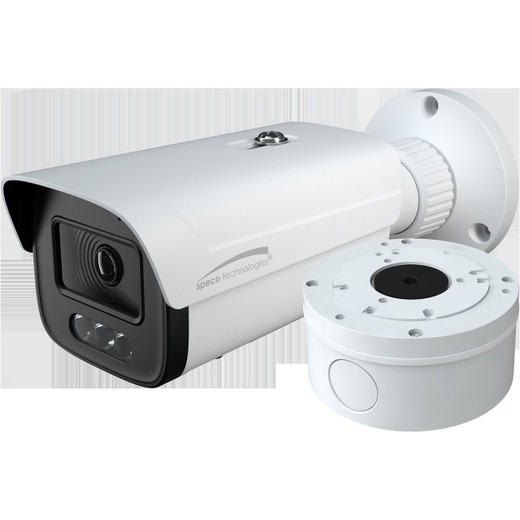

Speco Technologies O4LB2 4MP IP Advanced Analytics Bullet Camera

Speco Technologies O4LB2 4MP IP Advanced Analytics Bullet Camera

Overview

The Speco Technologies O4LB2 is a 4MP IP bullet camera engineered for outdoor and perimeter surveillance deployments requiring reliable low-light performance and network-based video analytics. This PoE-powered camera combines a 1/3" CMOS sensor with white light intensifier technology and advanced on-camera analytics to deliver actionable intelligence at the edge. The O4LB2 operates across a wide temperature range, making it suitable for demanding indoor and outdoor environments where traditional infrared may be insufficient or undesirable.

When this is the correct choice

The O4LB2 is the right choice for security integrators and IT managers deploying outdoor perimeter protection, parking facilities, or low-light commercial spaces where color detail and face/vehicle identification are priorities. Its white light intensifier capability preserves color information in near-darkness—a critical advantage over standard infrared when forensic detail is required. The built-in advanced analytics (motion detection, face detection, vehicle detection) reduce server load and enable real-time alerts at the camera level. Choose this model when you need a single, cost-effective solution combining 4MP resolution, analytics, and robust environmental protection without the complexity of external lighting or separate analytics servers.

When to choose a different model

If your deployment requires pan-tilt-zoom capability, indoor-only mounting, or ultra-compact form factors, consider alternative Speco offerings. The O4LB2's bullet form factor and fixed 2.8mm lens are optimized for fixed-view coverage; applications requiring wide zoom range or dynamic repositioning demand PTZ platforms. Similarly, if your environment cannot tolerate white light output (high-security covert monitoring), dedicated infrared-only cameras may be more appropriate.

Optics and field of view

The O4LB2 features a 2.8mm fixed lens, delivering a horizontal field of view suitable for moderate-distance perimeter and entrance monitoring. The fixed focal length simplifies installation and eliminates focus drift during thermal expansion—critical in outdoor environments experiencing the O4LB2's full -40°F to 140°F operating temperature range. The 1/3" CMOS sensor provides excellent light sensitivity and is paired with white light intensifier technology to maintain color reproduction even in extremely low ambient light conditions.

Imaging performance and low light

At 4MP (2688×1520 resolution), the O4LB2 delivers sufficient pixel density for facial and license plate recognition at typical surveillance distances. The sensor's sensitivity is augmented by white light intensification rather than infrared, preserving naturalistic color information critical for forensic analysis and investigative follow-up. The camera supports day/night operation, automatically switching between color and monochrome modes based on ambient light levels. Wide Dynamic Range (WDR) processing further enhances image quality in mixed-lighting scenarios—essential for outdoor installations with sun glare, reflections, or backlit subjects.

Analytics and edge capabilities

Advanced analytics are embedded directly into the O4LB2, eliminating the need for external analytics servers or GPU accelerators. Native support for motion detection, face detection, and vehicle detection enables real-time event triggering and filtering at the camera itself. This edge-based approach reduces bandwidth consumption, lowers latency for alarm response, and simplifies VMS integration. Integrators can configure detection sensitivity and region-of-interest masks directly via ONVIF Profile G-compliant control interfaces.

Video encoding and streaming

The O4LB2 supports H.265 (HEVC), H.264 (AVC), and MJPEG compression codecs, allowing flexible bandwidth and storage optimization. H.265 encoding reduces bitrate by approximately 50% compared to H.264 at equivalent quality, critical for bandwidth-constrained deployments or high-density multi-camera installations. The camera streams at up to 30 fps across all supported resolutions, ensuring smooth motion capture for vehicle and pedestrian tracking. Dual-stream encoding permits simultaneous delivery of high-quality recording streams and lower-bitrate preview streams to mobile clients.

Network and security

The O4LB2 implements ONVIF Profile G compliance, ensuring standardized integration with any ONVIF-compatible VMS, NVR, or management platform without proprietary plugins. Wired Ethernet connectivity via PoE eliminates separate power runs, reducing installation labor and points of failure. Network security is managed through standard IP security protocols; integrators should implement network segmentation, strong credentials, and firmware updates per organizational policy.

Environmental and durability ratings

An IP67 rating certifies protection against dust ingress and temporary water immersion, suitable for outdoor wall and ceiling mounts, under eaves, and exposed architectural alcoves. The camera is not rated for direct jet spray or prolonged submersion. The operating temperature specification (-40°F to 140°F) accommodates arctic deployments and sun-exposed installations in hot climates without thermal shutdown. The junction box integrated into the O4LB2 housing simplifies conduit and cable management in constrained mounting scenarios.

Power and installation notes

The O4LB2 operates via PoE (802.3af standard power) or DC 12V auxiliary input, offering flexibility in power architecture. PoE deployment reduces wiring complexity; DC 12V input provides a fallback when PoE infrastructure is unavailable or exhausted. The camera weighs 1.52 lbs, making it suitable for standard bracket and wall-mount hardware. Integrators should verify PoE injector or switch capacity when deploying multiple units; while 802.3af provides adequate headroom for the O4LB2, cascading installations benefit from PoE+ infrastructure for margin.

What is included

Contact us for package details.

Marty Allison

I've evaluated the Speco O4LB2 during planning cycles for mixed-lighting outdoor environments where color detail cannot be compromised. The white light intensifier approach is a pragmatic alternative to IR-only systems, particularly in parking and perimeter applications where recognition accuracy drives ROI. The O4LB2's ONVIF compliance and native analytics streamline integration significantly compared to cameras requiring external processing.

Technical Highlights:

• White Light Intensification: Preserves color information in extremely low light, eliminating the loss-of-detail trade-off inherent to infrared-only designs. Critical for forensic investigations and evidence quality.
• On-Camera Analytics: Motion, face, and vehicle detection reduce bandwidth overhead and accelerate alarm workflows by filtering events at the source rather than downstream in the VMS.
• H.265 Codec Support: Bandwidth reduction of 50% versus H.264 at equivalent quality translates directly to storage savings and network headroom in multi-camera deployments.

Deployment Considerations:

• White light output has operational implications—confirm it aligns with site security posture. Some facilities prohibit visible illumination during night monitoring.
• The fixed 2.8mm lens requires careful pre-installation planning to ensure adequate field of view at target distances. Lens swaps demand camera removal; specify focal length correctly at order time.
• PoE power (802.3af) is modest but sufficient; verify your switch or injector is not oversubscribed when deploying four or more units on a single segment.

The O4LB2 is a solid choice for integrators seeking a single-camera solution combining 4MP color imaging, embedded analytics, and environmental resilience without external infrastructure. Realistic deployment window: 1–3 week lead time is typical for Speco network products.
