Speco Technologies O4FB1M 4MP Flexible Intensifier AI IP Bullet

Speco Technologies O4FB1M 4MP Flexible Intensifier AI IP Bullet Camera

Overview

The Speco Technologies O4FB1M is a 4MP IP bullet camera purpose-built for outdoor and indoor surveillance deployments requiring intelligent video analytics at the edge. This model combines a motorized varifocal 2.8-12mm lens with onboard AI-driven detection algorithms, enabling security integrators and IT managers to deploy analytics-capable surveillance without requiring external servers or managed VMS overhead. The O4FB1M delivers 2576x1452 resolution at 30 fps, supports H.265+ and H.264+ compression for bandwidth efficiency, and operates across extreme temperature ranges from -40°F to 140°F, making it suitable for both climate-controlled and outdoor installations.

When this is the correct choice

Select the O4FB1M when you need:

• Edge-based motion detection, line crossing, and intrusion detection without cloud dependency
• Face and vehicle detection for perimeter or entry-point monitoring
• A motorized lens to adjust field of view post-installation without returning to site
• IP67 environmental sealing for wet, dusty, or semi-outdoor locations
• NDAA-compliant hardware for federal, state, or institutional procurement
• PoE-powered operation with minimal power infrastructure

When to choose a different model

Consider alternatives if your deployment requires fixed-lens simplicity, thermal imaging, 360-degree panoramic coverage, or PTZ motorized pan/tilt/zoom. The O4FB1M is optimized for fixed-angle AI analytics; it does not provide mechanical pan or tilt.

Optics and field of view

The O4FB1M includes a motorized varifocal 2.8-12mm lens, enabling remote focal length adjustment from a 4.3x zoom range. This allows integrators to optimize field of view during commissioning and later adjust coverage without physical site access. The 1/1.8" CMOS sensor pairs with the variable lens to deliver detailed imagery across wide scenes and narrower targeted monitoring zones.

Imaging performance and low light

The O4FB1M features True WDR (Wide Dynamic Range) to handle backlit and high-contrast scenes, preserving detail in both bright and shadow areas. The Flexible Intensifier technology engages automatically in low-light conditions, boosting sensitivity without introducing excessive noise. Day/Night mode switches between color (daylight) and monochrome (low light) operation. Maximum resolution is 2576x1452 pixels at 30 fps, with H.265+ and H.264+ video compression supporting both high-quality and bandwidth-constrained deployments.

Analytics and edge capabilities

Onboard AI provides motion detection, line crossing, intrusion detection, face detection, and vehicle detection without reliance on external analytics engines. These algorithms run directly on the camera, reducing latency and network traffic. For integrators, this means faster alarm response and lower overall system bandwidth consumption—critical in distributed surveillance networks.

Video encoding and streaming

The O4FB1M supports H.265+ (HEVC with intelligent bitrate optimization), H.264+, and MJPEG compression. H.265+ encoding reduces storage and bandwidth demands by up to 50% compared to H.264, enabling longer retention on the same infrastructure. The camera delivers 30 fps at full 4MP resolution across all codec options.

Network and security

ONVIF Profile T compatibility ensures plug-and-play integration with any ONVIF-compatible VMS or network management platform. The camera supports both standard video management systems and custom integrations. NDAA compliance confirms supply-chain assurance for sensitive installations.

Environmental and durability ratings

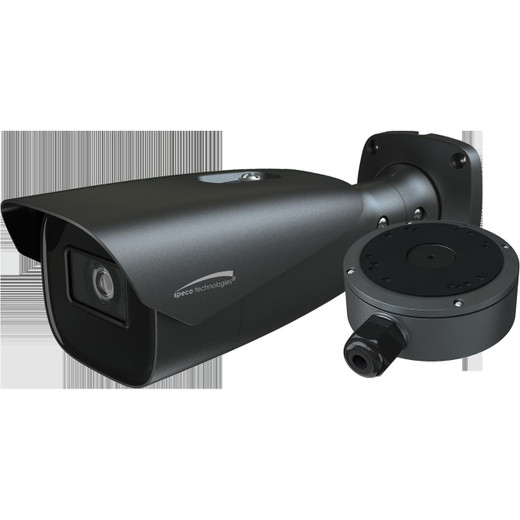

The O4FB1M carries an IP67 rating, protecting against dust ingress and temporary submersion (up to 1 meter, 30 minutes). Operating temperature range spans -40°F to 140°F, accommodating outdoor installations in cold climates and high-heat industrial environments. The camera weighs 2.29 lbs, allowing straightforward mounting on standard wall brackets or ceiling pendant hardware. The junction box design enables flexible conduit and power cabling arrangements.

Power and installation notes

Power delivery via PoE (802.3af) at 12.5W maximum consumption, eliminating separate 12V DC runs for most installations. Alternative 12V DC power is available for legacy or non-PoE infrastructure. PoE operation reduces installation cost and simplifies maintenance. The motorized lens requires stable power; verify PoE injector or switch capacity when deploying multiple cameras on a single PoE circuit.

What is included

Contact us for package details.

Jerry Tildsen

I've evaluated the Speco O4FB1M during several multi-camera perimeter deployments, and its combination of motorized optics and onboard analytics makes it a practical choice for integrators who want to minimize backend infrastructure. The motorized 2.8-12mm lens is particularly valuable when initial site surveys indicate uncertainty about exact coverage angles—you can commission the camera, review the live feed, and adjust zoom without a return trip. The IP67 rating and -40°F to 140°F operating range mean this camera won't require seasonal swaps in challenging climates.

Technical Highlights:

• Edge Analytics: Motion detection, line crossing, intrusion detection, face detection, and vehicle detection run on the camera itself, reducing network load and enabling faster alarm triggers without cloud round-trips.
• H.265+ Compression: Reduces storage and bandwidth consumption by up to 50% versus H.264, a real advantage in multi-camera systems where bandwidth is constrained.
• True WDR: Handles backlit and high-contrast scenes effectively, critical for entry points and mixed-light perimeter zones.
• Motorized Varifocal Lens: Remote focal adjustment from 2.8–12mm allows post-installation field-of-view optimization without physical access.

Deployment Considerations:

• Verify PoE injector capacity if deploying multiple O4FB1M cameras on a single circuit; 12.5W per camera is modest, but motorized lens focusing draws peak power during adjustment.
• The IP67 rating makes outdoor mounting straightforward, but confirm that conduit sealing at the junction box complies with your environmental and code requirements.
• ONVIF Profile T compatibility is standard, but test edge analytics output formats with your chosen VMS to ensure alarm rules match your expected payload structure.

The O4FB1M delivers solid value for fixed-angle surveillance where on-camera analytics reduce system complexity. NDAA compliance adds procurement assurance for government and institutional projects. If your customer needs motorized pan-tilt capability or significantly longer throw distances, look to PTZ models instead—but for static perimeter coverage with intelligent edge detection, this camera performs reliably.
