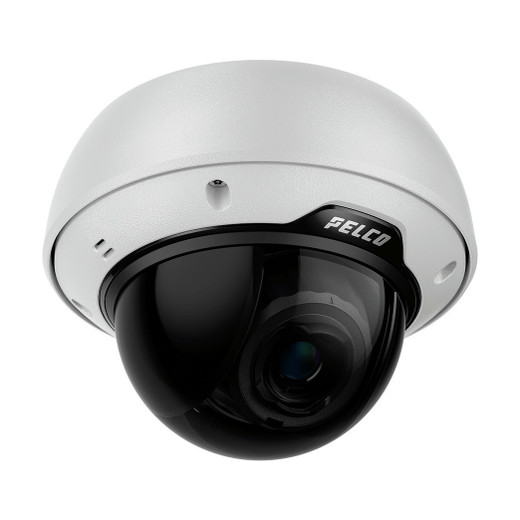

Pelco SRXE4-6V29-IMD-IR1 Sarix Enterprise 4 Dome IR
Add to Cart for Sale Price!
$923.99
Description
Pelco SRXE4-6V29-IMD-IR1
Overview
Pelco SRXE4-6V29-IMD-IR1 is a Sarix Enterprise 4 indoor mini-dome with a 29 mm fixed telephoto lens and IR1 module delivering approximately 70 m of 850 nm IR. FIPS 140-3 validated encryption, 130 dB WDR, and a 1/1.8″ sensor. Purpose-built for long indoor corridors, stairwells, and narrow passage zones where identification at extended range from a ceiling mount justifies the tight field of view.
On-board Pelco Smart Analytics. ONVIF Profile S/T/G/M compliant. PoE+ or 12/24 Vdc powered. NDAA Section 889 compliant.
Compatibility and selection notes
The 29 mm lens covers a very narrow angle and is not adjustable post-install—verify corridor length and ceiling height produce the required coverage before specifying. For broader indoor coverage, the SRXE4-6V9-IMD-IR1 (9 mm) widens the field substantially. For outdoor telephoto deployment, the SRXE4-4V29-EMD-IR1 adds environmental housing. Sites not requiring FIPS 140-3 can reduce cost with Sarix Pro 4 indoor domes.
Specifications
Series:
Sarix Enhanced 4 Series
Resolution:
4 MP
Image Sensor:
1/1.8 inch progressive scan CMOS
Maximum Resolution:
2560 x 1440
Maximum Frame Rate:
60 fps
Video Compression:
H.265; H.264; Motion JPEG
WDR:
130 dB SureVision
Lens:
4.4-9.3 mm motorized varifocal
HFOV:
32-109 degrees
Minimum Illumination:
0.003 lux color; 0.001 lux mono (0 lux with IR)
Analytics:
Smart Analytics: Person/Vehicle Detection, Direction Violation, Loitering, Beam Crossing, Crowd Detection, Audio Analytics, Tamper Alert
ONVIF Compliance:
ONVIF Profile S; Profile T; Profile G; Profile M
Ingress Protection:
IP66
Impact Rating:
IK11
Operating Temperature:
-10C to +65C
Cybersecurity:
FIPS 140-3 Level 3; TPM; Secure Boot; HTTPS; 802.1X
Compliance:
NDAA Section 889; TAA Compliant
Warranty:
5 Year Limited
