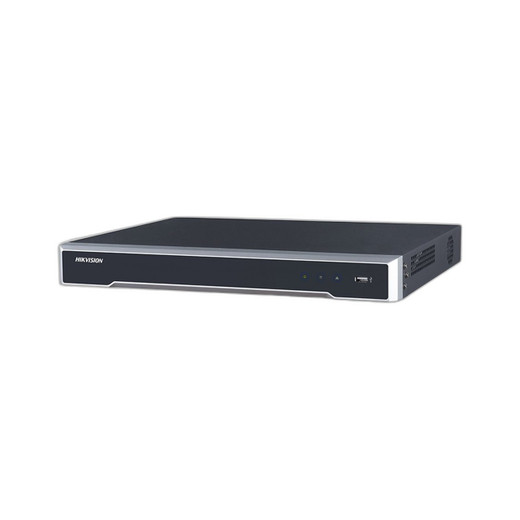

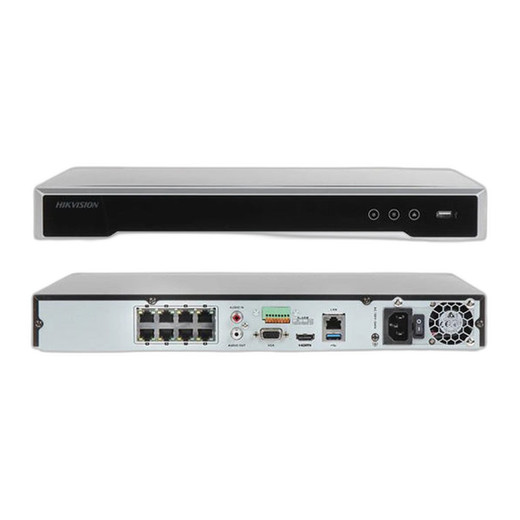

Hikvision DS-7608NI-Q2/8P 8-Channel 4K NVR 1TB

Hikvision DS-7608NI-Q2/8P 8-Channel 4K NVR 1TB

The Hikvision DS-7608NI-Q2/8P is a compact, high-performance 8-channel Network Video Recorder designed for small to medium-sized surveillance deployments. This 1U rackmount NVR combines 8MP recording capability with intelligent compression and flexible connectivity, making it an efficient solution for businesses requiring reliable multi-channel video management without excessive bandwidth or storage overhead.

Key Features

• 8-Channel IP video input with 8MP recording resolution support
• 1TB pre-installed hard drive with dual SATA interface (expandable up to 8TB per disk)
• Advanced H.265+ video compression for bandwidth and storage optimization
• 8 PoE+ ports delivering integrated power and data for streamlined camera integration
• Simultaneous HDMI and VGA output for flexible display configurations
• 8-channel synchronous playback for rapid event investigation
• Two-way audio support via RCA connection
• 60fps frame rate capability at 8MP resolution

Technical Specifications

This NVR supports multiple recording resolutions from 8MP down to QCIF, accommodating mixed camera deployments. The device features H.265+, H.265, H.264+, and H.264 decoding formats, ensuring compatibility with diverse camera types. Network connectivity includes TCP/IP, DHCP, DNS, DDNS, NTP, Hik-Connect cloud integration, and HTTPS for secure remote access. The 80 Mbps incoming and outgoing bandwidth supports simultaneous multi-stream recording and playback operations.

The compact 1U chassis (385 × 315 × 52mm) consumes just 15W under PoE operation and operates reliably in temperatures ranging from -10°C to +55°C, making it suitable for both indoor and climate-controlled outdoor installations. Two USB 2.0 ports enable quick backup and device configuration.

Applications

• Small retail and commercial facilities requiring multi-angle surveillance
• Office buildings and corporate campuses with moderate camera counts
• Educational institutions and healthcare facilities
• Parking lots and perimeter monitoring in compact form factors

Marty Allison

The DS-7608NI-Q2/8P strikes an effective balance between capacity and efficiency. The PoE+ architecture eliminates separate power infrastructure, reducing installation complexity and cost. H.265+ compression is particularly valuable for facilities with bandwidth constraints—expect 50% storage reduction versus H.264 at equivalent quality.

The 1TB base storage, while modest for high-retention scenarios, proves sufficient for 7–14 days of continuous 8-channel recording depending on scene complexity and resolution mix. Dual SATA expansion capability and support for external NFS/iSCSI storage make this unit scalable for growing deployments. The simultaneous HDMI/VGA output is practical for NOC environments requiring independent local and remote monitoring feeds.

For organizations prioritizing compact footprint and power efficiency without compromising core recording performance, this NVR delivers solid value.
