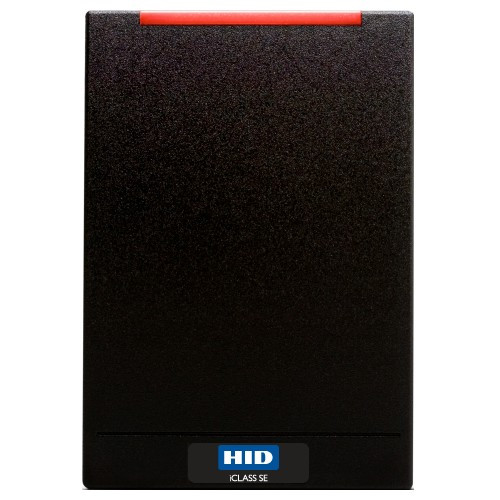

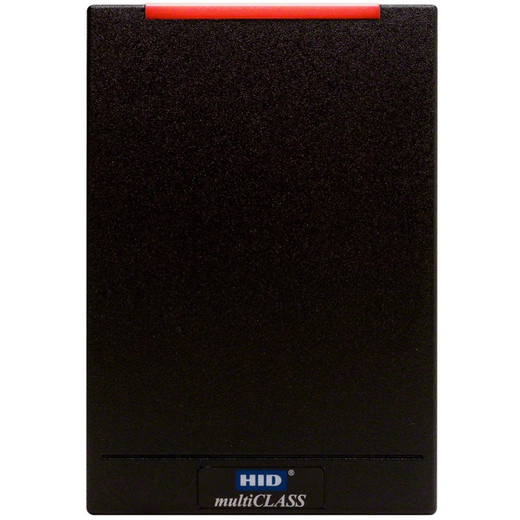

HID 920PWNNEKE030A RP40 Multiclass SE LF HF Reader

HID 920PWNNEKE030A MultiClass Credential Reader

The HID 920PWNNEKE030A is a professional-grade multiclass reader designed for access control systems requiring simultaneous low-frequency and high-frequency credential support. This reader integrates seamlessly into existing security architectures through standard Wiegand output, making it suitable for retrofit installations, credential migration projects, and heterogeneous badge environments common in enterprise facilities.

Overview

Built on HID's proven multiclass platform, the 920PWNNEKE030A delivers simultaneous LF standard and HF standard/SIO/SEOS capability in a single form factor. The reader accommodates multiple credential types within a single reader head, reducing hardware complexity and installation costs across door openings. Black finish and secure enclosure design support both indoor and outdoor mounting configurations.

Key Features

• Multiclass Support: Reads LF standard and HF standard/SIO/SEOS credentials in a single reader unit
• Wiegand Output: Standard Wiegand protocol interface for direct controller connectivity without protocol conversion
• Prox/iClass Compatibility: PIG (Prox) and enhanced credential family support enables mixed credential deployments
• Migration Capability: HF migration profile (EVC01123) and IPM-off configuration supports phased credential transitions without reader replacement
• Black Finish: Durable powder-coat black exterior for secure installations and blended facility aesthetics
• Secure Enclosure Design: SE designation indicates enhanced tamper-resistance for high-security applications
• Compact Form Factor: RP40 reader head size minimizes footprint while maintaining dual-frequency scanning capability

Integration & Compatibility

The 920PWNNEKE030A connects directly to access control panels and readers via Wiegand interface (standard 26/34-bit Wiegand output), eliminating the need for protocol converters or intelligent reader modules in many installations. The multiclass design supports both legacy Prox infrastructure and modern HF iClass-based systems, making it particularly valuable in environments transitioning between credential technologies.

Credential migration features—including HF migration profile support and IPM-off functionality—enable organizations to phase in new credentials without requiring simultaneous reader swaps across all door openings. This approach reduces operational disruption and spreads capital expenditure across migration phases. The reader operates independently of HID controller firmware versions, providing installation flexibility across diverse system architectures.

Physical Specifications

The 920PWNNEKE030A employs a compact RP40 reader head mounted on a secure bezel with black finish. The reader's form factor accommodates standard single-gang and multi-reader mullion installations. No external power supply is required when powered through controller-supplied reader connections, simplifying wiring and reducing installation complexity.

Marty Allison

I've specified the HID 920PWNNEKE030A on multiple facility upgrades where organizations needed to maintain credential diversity during system transitions. The simultaneous LF/HF capability in the 920PWNNEKE030A eliminates the need to install separate reader heads or manage protocol conversion layers—both cost drivers in retrofit projects.

Technical Highlights:

• Multiclass Architecture: LF standard and HF standard/SIO/SEOS support allows single reader to authenticate legacy and modern credentials
• Wiegand Output: Direct Wiegand interface bypasses converter hardware, reducing points of failure and simplifying diagnostics
• Migration Support: HF migration profile and IPM-off mode enable credential rollover without simultaneous reader replacement across facility

Deployment Considerations:

• Verify controller Wiegand input compatibility and bit-length configuration (26/34-bit) before installation to ensure credential data reaches access database without truncation
• In mixed-credential environments, validate that your access control software correctly maps LF and HF credentials to the same user identity to avoid authentication conflicts during transition
• Plan credential deactivation timing: IPM-off mode allows legacy credentials to function during phase-out, but establish clear cutover dates to prevent orphaned access records

The 920PWNNEKE030A is a practical choice for integrators managing multi-site upgrades or clients with heterogeneous credential bases. It reduces hardware inventory, simplifies wiring runs, and provides genuine migration flexibility without forcing fork-lift replacement of reader infrastructure.
