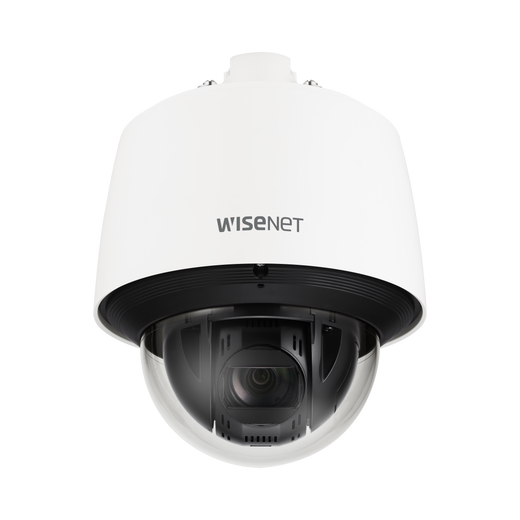

Hanwha QNP-6320H 2MP Outdoor PTZ Dome Camera

Overview

SKU: QNP-6320H
UPC: 8801089204448
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Write a Review 40% OFF

Hanwha QNP-6320H 2MP Outdoor PTZ Dome Camera

Hanwha QNP-6320H 2MP Outdoor PTZ Dome Camera The Hanwha QNP-6320H is a professional-grade 2MP outdoor PTZ dome camera engineered for large-scale surv…

Add to cart for sale price
$2,500.00
$1,504.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hanwha QNP-6320H 2MP Outdoor PTZ Dome Camera

$2,500.00
$1,504.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: QNP-6320H
UPC: 8801089204448
Condition: New
Availability: Usually ships in 24 hours
Warranty 3-year warranty
Description

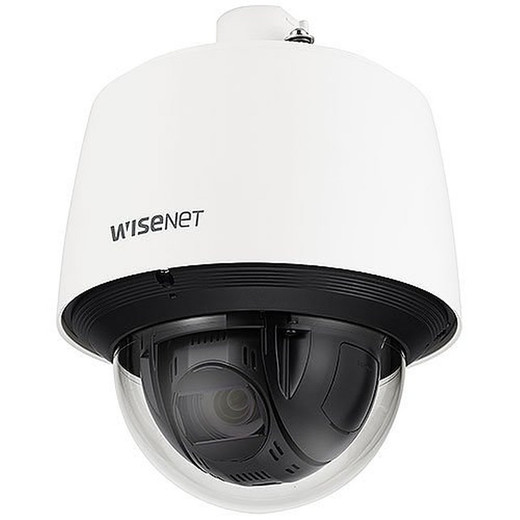

Hanwha QNP-6320H 2MP Outdoor PTZ Dome Camera

The Hanwha QNP-6320H is a professional-grade 2MP outdoor PTZ dome camera engineered for large-scale surveillance deployments requiring extended coverage and superior image clarity. Built with a 1/2.8" CMOS sensor and 32x optical zoom capability (4.44–142.6mm focal length), this camera delivers exceptional detection and identification performance across vast distances, making it ideal for parking lots, airports, city squares, and critical infrastructure monitoring.

Key Features

  • 2MP 1920×1080 resolution with 60fps H.265/H.264 video compression
  • 32x optical zoom with 1024x digital zoom for extreme telephoto capability
  • 360° endless pan with speeds up to 700°/sec (preset) and 105° tilt range
  • Exceptional low-light performance: 0.05 Lux color, 0.005 Lux B&W (F1.6, 1/30sec)
  • 120dB Wide Dynamic Range (WDR) for balanced exposure in challenging lighting
  • Day/Night (ICR) with motorized auto-iris for automatic light adaptation
  • IP66-rated weatherproof design with IK10 vandal resistance and NEMA4X corrosion protection
  • Digital Image Stabilization with built-in gyro sensor for smooth panning
  • Auto-tracking support for intelligent subject following
  • PoE+ powered (IEEE 802.3at, Class 4) with 14W typical consumption

Advanced Imaging & Analytics

The QNP-6320H leverages intelligent video analytics including directional detection, motion detection, enter/exit zones, tampering detection, and virtual line crossing. Eight motion detection zones with 8-point polygonal configuration and 32 privacy masking zones provide granular control over monitoring scope. The camera supports 300 preset positions with ±0.2° accuracy, plus swing, group, trace, and tour sequences for automated surveillance routines.

Video Quality & Compression

Multiple video compression options optimize bandwidth and storage: H.265 and H.264 main/high profiles alongside MJPEG. WiseStreamII smart codec with up to five manual region-of-interest areas enables bitrate reduction for secondary streams while maintaining quality on critical zones. Supports unicast streaming for 20 simultaneous users across multiple profiles, with both CBR and VBR bitrate control.

Security & Connectivity

Enterprise-grade security includes 802.1X network authentication (EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2), digest authentication with brute-force protection, HTTPS/SRTP/WSS encryption, and IP address filtering. Full ONVIF Profile S/G/T compliance ensures vendor interoperability. Firmware encryption and device certificates (Hanwha Techwin Root CA pre-installed) protect system integrity.

Storage & Environmental Durability

Supports microSD/SDHC/SDXC cards up to 256GB for edge recording. Rated for operation from -35°C to +55°C (-31°F to +131°F) with startup above -30°C, and storage from -50°C to +60°C. 1GB RAM and 256MB flash enable smooth operation in extreme outdoor conditions.

Detection Performance Specifications

  • Detect (25 PPM): 60.7m wide, 1921.3m telephoto
  • Observe (63 PPM): 24.3m wide, 768.5m telephoto
  • Recognize (125 PPM): 12.1m wide, 384.3m telephoto
  • Identify (250 PPM): 6.1m wide, 192.1m telephoto
Marty Allison
Marty Allison

The QNP-6320H excels as a long-range surveillance workhorse, particularly in open-area applications where wide geographic coverage with rapid repositioning is essential. The 1024x total zoom (32x optical + 32x digital) combined with sub-0.5° minimum pan speed enables operators to lock onto distant subjects with precision. Its low-light sensitivity is exceptional—0.005 Lux in B&W approaches thermal-equivalent performance for night operations without IR overload issues.

The built-in gyro stabilization is crucial for telephoto work, reducing jitter during extended zoom periods. WiseStreamII codec management allows security teams to allocate bandwidth efficiently across large deployments. IP66/IK10/NEMA4X triple-certification ensures this camera survives coastal salt spray, industrial vibration, and deliberate vandalism.

Best suited for municipalities, transportation hubs, and enterprise campuses where 24/7 monitored detection at distance is the priority.

Product Documentation

📄 Download Product Datasheet (PDF)

Expert Analysis
Specifications
Frame Rate: 60fps
Imaging Device: 1/2.8" CMOS
Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Thermal Sensitivity (NETD: None
Pixel Size: None
Min. Illumination: Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE)
Video Out: None
Video Transmission Distance: None
Focal Length (Zoom Ratio: 4.44~142.6mm(32x) zoom (digital 32x, total 1024x zoom)
Max. Aperture Ratio: F1.6(Wide)~F4.4(Tele)
Angular Field of View: H: 64.66°(Wide)~2.29°(Tele) V: 38.08°(Wide)~1.30°(Tele)
Min. Object Distance: Wide: 1.5m(4.92ft) / Tele: 2m(6.56ft)
Focus Control: Oneshot AF, Focus save
Lens Type: DC auto iris
Mount Type: None
Optional Lens: None
Pan / Tilt / Rotate Range: None
Pan Range: 360° Endless
Pan Speed: Preset: 700°/sec, Manual: 0.024°/sec~200°/sec
Tilt Range: 105°(0°~105°)
Tilt Speed: Preset: 300°/sec, Manual: 0.024°/sec~200°/sec
Rotate Range: None
Sequence: Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy: ±0.2°
Camera Title: Displayed up to 85 characters
Direction Indicator: Support
Day & Night: Auto(ICR)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: 120dB
Digital Noise Reduction: SSNRⅤ
Digital Image Stabilization: Support(built-in gyro sensor)
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Solid/Mosaic
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
LDC: None
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ: None
Video Rotation: Flip, Mirror
Analytics: Analytics events - Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line * Audio detection(Via optional I/O box SPM-4210)
Business Intelligence: None
Serial Interface: None
Alarm Inputs/Outputs: None
Alarm Triggers: Analytics, Network disconnect * Alarm input((Via optional I/O box SPM-4210)
Alarm Events: When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) * Alarm output / Audio clip play
Audio Streaming: None
Audio In: None
Audio Out: None
Light Type: None
Light Viewable Length: None
IR Viewable Length: None
IR Illuminator (Optional: None
IR Radiation angle: None
IR LED: None
IR Wavelength: None
IR Operation: None
Water Removal: None
Auto Tracking: Support
Coaxial Protocol: None
Color Palettes: None
Temperature Detect Range: None
Temperature Accuracy: None
Temperature Detection: None
Additional: None
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/High, MJPEG
Audio Compression: None
Smart Codec: Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment: H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), NTCIP1205
SIP support (VoIP, Peer-to-peer, SIP/PBX integration: None
Security: None
Application Programming Interface: ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
OS / Firmware Protect: Firmware encryption
User authentication: Digest Authentication, Privent brute-force attack
Network authentication: 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication: HTTPS, SRTP, WSS(Websocket secure)
Access Control: IP address filtering
Data Protect: Authentication information encryption, ZIP compression encryption
Audit: User Access/System/Event log
Device ID: Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure Storage: None
Security Certificate: None
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer: None
Edge Storage: Micro SD/SDHC/SDXC 1slot Max. 256GB
RAM: 1GB RAM, 256MB Flash
Operating Temperature / Humidity: -35°C~+55°(-31°F ~ +131°F) * Start up should be done at above -30°C 0~95% RH(non-condensing)
Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / 0~95% RH
Certification: IP66, IK10, NEMA4X
Input Voltage: PoE+(IEEE802.3at, Class4)
Power (Max: PoE+: Max. 23W, typical 14W
Color / Material: Body : White / Aluminum Head : Black / Polycarbontate
RAL Code: RAL9003
Product Dimensions / Weight: ø204.3x265mm(ø8.04x10.43”), 2700g(5.95lb)
Compatible Conduit hole / Gangbox: None
Hanging Mount (Dome: SBP-156HMW
Skin Cover: None
Skin Cover (Dome: None
Weather Cap (Dome: None
Power Module: None
Backbox: None
Ceiling Mount (Assy: SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
Wall Mount: SBP-156WMW, SBP-390WMW2
Pole Mount: SBP-300PMW2
In-ceiling Mount: None
Parapet Mount: SBP-156LMW, SBP-300LMW
Corner Mount: SBP-156KMW, SBP-300KMW1
Tilt Mount: None
Housing (Box: None
Cabinet: SBP-300NBW
Gang Plate: None
Conduit Adaptor: None
Other Compatible Models: None
EMC: FCC 47 CFR 15 Subpart B Class A IC Regulation ICES-003 Issue 7 Class A CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment Rating: IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10
Video: None
Detect (25PPM/ 8PPF: Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft)
Observe (63PPM/ 19PPF: Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft)
Recognize (125PPM/ 38PPF: Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft)
Identify (250PPM/ 76PPF: Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft)
Speed Description: None
Speed limit: None
Min. Forward Distance: None
Max. Forward Distance: None
Max. Horizontal Angle: None
Max. Vertical Angle: None
Horizontal Offset: None
Camera Height: None
Lane Coverage: None
Vehicle Recognition: None
Available Countries: None
Solution: None
Ver: 2310
Product Type: Dome
Connectivity: Wired
IP Rating: IP66
Features: WDR
Night Vision: IR
Power Type: PoE+
PoE Class: 4
Form Factor: PTZ
Vandal Rating: IK10
Compatibility: ONVIF
IR Distance: 1.5m
Built-in IR: Yes
Day/Night: Yes
Storage Support: microSD
Outdoor Ready: Yes
HTTPS Encryption: Yes
WDR: WDR
Weight Lbs: 5.95
