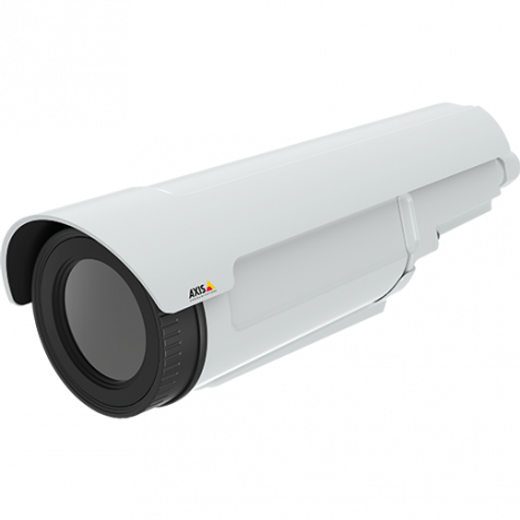

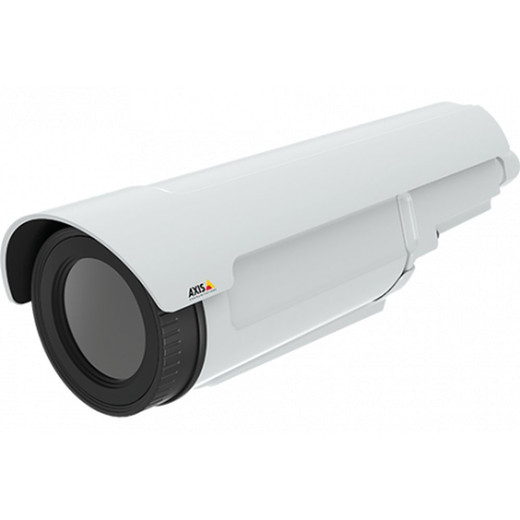

Axis Q1942-E Thermal Outdoor Bullet Camera

Axis Q1942-E Thermal Outdoor Fixed Bullet Perimeter IP Camera

The Axis Q1942-E is a professional-grade thermal imaging camera designed for 24/7 perimeter surveillance in challenging outdoor environments. Built on uncooled microbolometer technology, this camera delivers heat-signature detection independent of lighting conditions, making it ideal for securing critical infrastructure, expansive properties, and high-security zones where conventional visible-light cameras fall short due to darkness, fog, or environmental obstruction.

Key Features

• Uncooled microbolometer thermal sensor with <50 mK thermal sensitivity (NETD)
• 800x600 thermal resolution with upscaling capability
• Multiple fixed focal lengths (10–60 mm) for flexible perimeter coverage
• 30 fps frame rate for smooth thermal video capture
• H.264 video compression with Zipstream for efficient bandwidth management
• IP66-rated weatherproof housing rated for -40 to 60°C operation
• PoE power (Class 3) for simplified deployment
• Wired connectivity with serial interface support
• Electronic image stabilization to mitigate vibration artifacts
• Built-in analytics, tampering detection, and signed firmware support

Technical Highlights

The Q1942-E's uncooled thermal sensor provides superior detection capabilities without the maintenance requirements of cooled systems. With thermal sensitivity below 50 mK, the camera reliably identifies temperature anomalies and human intrusion across wide perimeters. The camera's modular focal-length options—ranging from 10 mm (63° horizontal FOV) for wide-area coverage to 60 mm (10° horizontal FOV) for distant object identification—enable tailored surveillance strategies across diverse site geometries.

H.264 compression combined with Axis Zipstream technology optimizes storage and bandwidth consumption without sacrificing thermal image fidelity. The camera's IP66 rating ensures reliable operation in rain, snow, and salt-spray environments, while its -40 to 60°C temperature range supports deployment in extreme climates. PoE Class 3 power delivery eliminates the need for separate power infrastructure, reducing installation complexity and cost.

Applications

• Border and perimeter intrusion detection
• Critical infrastructure protection (power plants, refineries, water treatment)
• Asset protection and grounds surveillance
• Search and rescue operations in low-visibility conditions
• Industrial facility monitoring
• High-security compound and facility access control

Ted Perry

The Q1942-E addresses a critical gap in outdoor perimeter surveillance: reliable threat detection when environmental conditions disable conventional cameras. Thermal imaging's independence from ambient light sources makes it uniquely suited to mission-critical applications where false negatives carry operational risk. The camera's <50 mK thermal sensitivity ensures detection of human-scale thermal signatures at extended ranges, while the uncooled sensor design minimizes maintenance overhead compared to cooled alternatives.

The modular focal-length architecture is particularly valuable for integrating the Q1942-E into multi-camera perimeter networks; operators can deploy narrow-field (60 mm) units for distant verification and wide-field (10 mm) units for area coverage. The combination of Zipstream compression, local storage capability, and serial interface support makes the Q1942-E compatible with both Axis VMS environments and legacy integration frameworks. For organizations prioritizing perimeter integrity and false-alarm reduction, thermal imaging's performance envelope justifies deployment cost.

Download Product Datasheet (PDF)
