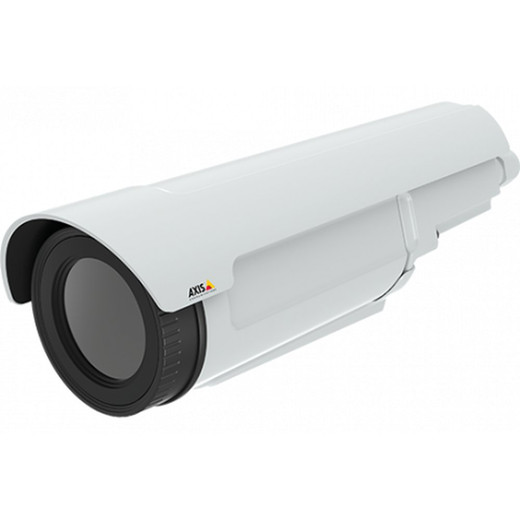

Axis Q1942-E Thermal Outdoor Bullet Camera

Axis Q1942-E Thermal Outdoor Bullet Camera

The Axis Q1942-E is a professional-grade thermal IP camera engineered for outdoor surveillance in challenging environments where conventional cameras are insufficient. Built on an uncooled microbolometer thermal sensor with exceptional sensitivity (<50 mK NETD), this fixed bullet camera delivers reliable threat detection and monitoring across darkness, fog, smoke, and extreme weather conditions. Its 800x600 thermal resolution with multiple lens options (10–60mm focal lengths) enables deployment across diverse perimeter security, infrastructure protection, and critical facility applications.

Key Features

• Uncooled microbolometer thermal sensor with <50 mK thermal sensitivity (NETD)
• Multiple focal length options: 10mm, 19mm, 35mm, and 60mm
• 800x600 thermal resolution with up to 30 fps frame rate
• H.264 video compression with Zipstream technology for optimized bandwidth
• Power over Ethernet (PoE Class 3) for simplified installation
• IP66 rated housing for outdoor durability
• Operating temperature range: -40°C to +60°C
• Electronic image stabilization for steady thermal footage
• Serial connector support for legacy system integration
• Signed firmware and local storage capability

Technical Specifications

The Q1942-E delivers exceptional thermal imaging performance with horizontal fields of view ranging from 10° (60mm lens) to 63° (10mm lens), and vertical fields of 7.7° to 49° respectively. Its uncooled microbolometer design eliminates the maintenance requirements of cooled sensors while maintaining professional-grade sensitivity for detecting personnel, vehicles, and thermal anomalies across extended distances. The camera supports multiple frame rate configurations (8.3 fps and 30 fps) for flexible network bandwidth management.

Built for harsh outdoor environments, the IP66-rated enclosure ensures protection against dust, debris, and high-pressure water jets. The -40°C to +60°C operating temperature range addresses demanding climates from arctic to desert deployments. PoE Class 3 power delivery eliminates the need for dedicated power infrastructure at the camera location.

Applications & Use Cases

• Perimeter intrusion detection and border security
• Critical infrastructure monitoring (power plants, water treatment, utilities)
• Port and airport security operations
• Industrial facility surveillance in extreme conditions
• Search and rescue thermal imaging
• Wildlife monitoring and research
• Fire detection and hotspot identification

Eden Phillips

The Q1942-E represents Axis's commitment to thermal imaging excellence for enterprise security. The uncooled microbolometer approach balances performance with operational cost—eliminating cryogenic cooling maintenance while delivering 50 mK thermal sensitivity suitable for most professional applications. The multiple lens configuration enables right-sizing for specific deployment scenarios, from wide perimeter coverage (10mm) to extended-range surveillance (60mm).

Zipstream H.264 compression is critical for thermal deployments, where 24/7 recording generates substantial storage and bandwidth demands. Combined with PoE delivery and support for local storage, the Q1942-E integrates seamlessly into modern IP security infrastructure. The IP66 rating and extreme temperature range ensure reliability in environments where conventional visible-light cameras fail, making thermal imaging a necessity rather than a premium feature for outdoor critical sites.
