Description

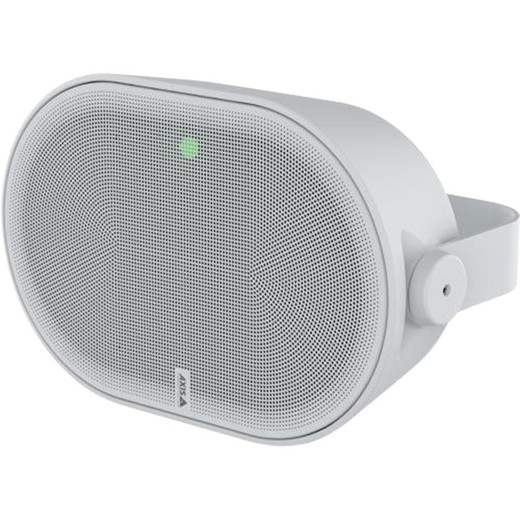

Axis C1111-E Network Cabinet Speaker
The Axis C1111-E is a professional-grade network cabinet speaker engineered for IP-based audio distribution in security and communication systems. With built-in PoE power, integrated SIP telephony support, and advanced content management capabilities, this sealed speaker delivers high-fidelity audio for announcements, alerts, and two-way communications across retail, education, corporate, and public safety environments.
Key Features
- 93 dB maximum sound pressure level with 120° horizontal and 130° vertical coverage
- Power over Ethernet (PoE) simplifies wiring and installation
- Built-in 7W Class D amplifier with sealed 2.5-inch dynamic cone speaker
- IP55-rated aluminium casing—white or black finish
- Integrated microphone with automatic speaker test verification
- SIP/VoIP support compatible with Cisco, Avaya, and Asterisk systems
- Built-in AXIS Audio Manager Edge for content scheduling and prioritization
- Full-duplex echo cancellation for clear two-way audio streaming
Technical Specifications
- Audio Performance: 120 Hz–20 kHz frequency response; AAC, G.711, G.726, MP3, and WAV encoding support (8–48 kHz sampling rates)
- Network Protocols: IPv4/IPv6, RTSP, RTP, SIP, HTTPS/TLS 1.2/1.3, SNMP v1/v2c/v3
- Processing: NXP i.MX 8M Nano processor; 1 GB RAM and 1 GB Flash storage; pre-configured digital signal processing
- Security: Signed firmware, AES-256 SD card encryption, IEEE 802.1X authentication, host-based firewall, OAuth 2.0 support
- Health Monitoring: Auto speaker test via built-in microphone; event-driven audio clip playback and I/O control
Applications
Ideal for emergency mass notification, background music distribution, two-way intercom, retail paging, educational facility announcements, and corporate communication networks. Integrates seamlessly with existing IP surveillance and VoIP PBX infrastructures for unified audio-visual security solutions.
Sustainability
Manufactured with 51% bio-based renewable carbon-based plastic content, PVC-free, RoHS and REACH compliant. Axis Communications is a UN Global Compact signatory committed to responsible environmental practices.
Jerry Tildsen
The C1111-E combines robust audio performance with enterprise-grade network security, making it suitable for mission-critical installations. The 93 dB output and wide coverage pattern ensure announcements reach diverse spaces without excessive amplification. Built-in SIP support eliminates the need for separate VoIP adapters, reducing system complexity.
AXIS Audio Manager Edge enables IT teams to manage content schedules and prioritize urgent alerts—critical for security applications. The IP55 rating and sealed enclosure provide durability in cabinet installations. For larger deployments, the optional AXIS Audio Manager Pro adds advanced scheduling and multi-site management capabilities.
Specifications
Enclosure:
Sealed enclosure with a 2.5-inch broadband dynamic cone speaker
Max sound pressure level:
93 dB
Frequency response:
120 Hz - 20 kHz
Coverage pattern:
Horizontal speaker coverage 120° Vertical speaker coverage 130°
Audio input/output:
Built-in microphone (can be disabled)
Built-in microphone specification:
50 Hz - 12 kHz
Amplifier description:
Built-in 7 W Class D amplifier
Digital signal processing:
Built-in and pre-configured
AXIS Audio Manager Edge:
Built in: – Content management for music and live/pre-recorded announcements. – Scheduling to decide when and where to play specific content. – Content prioritization to ensure urgent messages interrupt the schedule.
AXIS Audio Manager Pro:
For larger and more advanced systems. Sold separately. See separate datasheet for specifications.
AXIS Audio Manager Center:
AXIS Audio Manager Center is a cloud service for remote access and management of multi-site systems.
Audio streaming:
One-way/two-way with optional full-duplex echo cancellation. Mono.
Audio encoding:
AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz.
Model:
NXP i.MX 8M Nano
RAM:
1024 MB RAM, 1024 MB Flash
Network protocols:
IPv4/v6a, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk)
Application Programming Interface:
Open API for software integration, including VAPIX®, One-click cloud connection, AXIS Camera Application Platform (ACAP).
VoIP:
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk.
Health monitoring:
Auto Speaker Test (verification via built-in microphone)
Event conditions:
Application Audio: audio clip playing, speaker test result Call: state, state change Device status: IP address blocked, IP address removed, live stream active, network lost, new IP address, ring power overcurrent protection, system ready
Event actions:
Audio: run automatic speaker test Audio clips: play, play while the rule is active, stop playing I/O: toggle I/O once, toggle I/O while the rule is active Light and siren: run light profile, run light profile while the rule is active, stop activities
Built-in installation aids:
Test tone verification and identification
EMC:
CISPR 24, CISPR 35, CISPR 32 Class A, EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(B)/NMB-3(B) Japan: VCCI Class A Korea: KS C 9835
Safety:
CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, KC-Mark
Environment Rating:
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP55
Features:
ETSI EN 303 645
Edge security:
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Network security:
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Documentation:
AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM)
Substance control:
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard JS709 RoHS in accordance with EU RoHS Directive 2011/65/EU/ and EN 63000:2018 REACH in accordance with (EC) No 1907/2006. For SCIP UUID, see echa.europa.eu
Materials:
Renewable carbon-based plastic content: 51% (recycled: 0%, bio-based: 51%, carbon capture based: 0%) Screened for conflict minerals in accordance with OECD guidelines To read more about sustainability at Axis, go to axis.com/about-axis/sustainability
Environmental responsibility:
axis.com/environmental-responsibility Axis Communications is a signatory of the UN Global Compact, read more at unglobalcompact.org
Casing:
Aluminium casing, IP55 rated Colors: white, black
Product Type:
Speaker
Connectivity:
Wired
Power Type:
PoE
