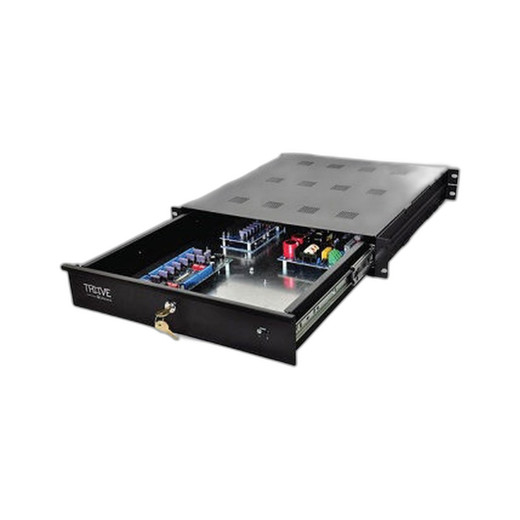

Altronix TROVE1AL1R Trove Rack w/Altronix Bacplane

Altronix TROVE1AL1R Rack Mount Access and Power Integration Enclosure

Overview

The Altronix TROVE1AL1R is a compact rack-mount enclosure designed for integrated access control and power management in security system deployments. Built as part of the Trove1 Rack Series, this unit combines backplane connectivity with managed power distribution to support multi-device access control installations. The TROVE1AL1R delivers centralized control architecture in a space-efficient form factor, enabling integrators to consolidate power supplies, distribution modules, and access control hardware within a single rack-mounted chassis.

Key Features

• Rack-Mount Form Factor — Compact Trove1 series design optimizes space utilization in standard 19-inch server racks and equipment cabinets
• Integrated Backplane Architecture — Internal backplane enables direct module interconnection without external wiring complexity, reducing installation labor and potential single points of failure
• Access Control Integration — Purpose-built to house access control power supplies, distribution modules, and door control electronics in unified chassis
• Power Management Capability — Supports centralized power distribution for door locks, readers, and control modules with managed load balancing
• Modular Expansion — Backplane design accommodates multiple Altronix power and distribution modules, scaling systems from single-door to multi-door deployments
• Professional Installation Ready — Designed for security integrators and IT managers deploying access control infrastructure with high availability requirements

Integration and Deployment

The TROVE1AL1R functions as a consolidation point for access control power and distribution hardware. The internal backplane eliminates point-to-point wiring between power supplies and distribution modules, improving system reliability and simplifying maintenance. This architecture supports both standalone and networked access control systems, accommodating traditional hardwired door control circuits as well as IP-based readers and controllers when paired with appropriate interface modules.

The enclosure is sized to fit standard 19-inch rack infrastructure, allowing security system hardware to be co-located with network switches, NVRs, and other IT equipment. This integration reduces deployment footprint and simplifies power distribution from facility UPS and backup battery systems. The TROVE1AL1R supports battery backup configurations through compatible Altronix power and charger modules, enabling access control continuity during power loss events.

Target Applications

The TROVE1AL1R is engineered for security integrators managing mid-to-large deployments requiring multiple access points, managed power distribution, and consolidated hardware architecture. Common applications include multi-tenant office buildings, data centers, manufacturing facilities, and enterprise campuses where access control infrastructure must integrate seamlessly with IT infrastructure and operate reliably under high availability requirements.

Marty Allison

The Altronix TROVE1AL1R represents a practical consolidation approach for mid-scale access control deployments. During deployment planning, this enclosure simplifies the typical challenge of managing multiple power supplies and distribution modules scattered across equipment rooms. The backplane-based architecture eliminates external interconnection wiring, which reduces both installation complexity and ongoing troubleshooting overhead. For integrators managing 10+ door installations, the TROVE1AL1R delivers meaningful labor savings during initial deployment and ongoing maintenance cycles.

Technical Highlights:

• Backplane Integration: Internal backplane enables modular power and distribution module installation without external wiring between components, reducing failure points and installation labor
• Rack-Mount Compatibility: 19-inch rack mounting allows TROVE1AL1R to integrate directly with network infrastructure, UPS systems, and facility power distribution
• Scalable Architecture: Accommodates multiple Altronix power supplies and distribution modules, supporting growth from single-site to multi-location deployments

Deployment Considerations:

• Coordinate backplane module selection with specific door lock voltage and current requirements — validate power budget before final module configuration
• Plan battery backup capacity early in system design; the enclosure supports integrated battery modules through compatible Altronix charger hardware for extended backup duration
• Position the TROVE1AL1R in climate-controlled equipment rooms near primary network infrastructure to minimize cable runs and simplify monitoring integration

For integrators moving beyond single-door or standalone access control systems, the TROVE1AL1R provides a foundation for professional, maintainable infrastructure. The backplane design shifts focus from wiring management to configuration optimization, allowing teams to spend deployment time on reader placement, software integration, and user provisioning rather than troubleshooting connection issues.
