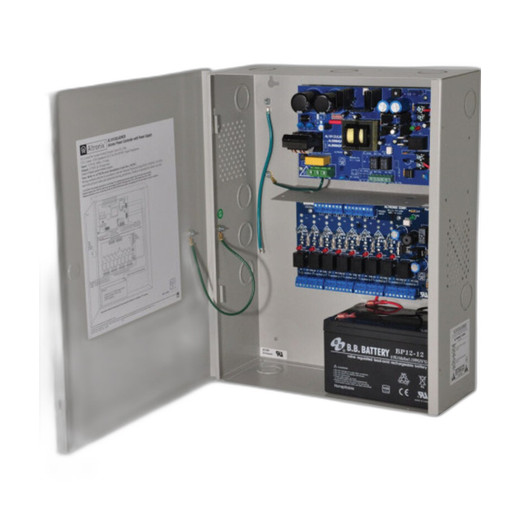

Altronix T3SSK77524 24VDC 7.5A 4-Output Supervised Power Supply

Altronix T3SSK77524 24VDC Supervised Power Supply

Overview

The Altronix T3SSK77524 is a 24VDC regulated power supply designed for security system installations requiring multiple supervised outputs and reliable DC power distribution. With a 7.5-amp maximum current capacity and four individual fused outputs, the T3SSK77524 delivers stable 24VDC power suitable for access control, video surveillance, and integrated security system deployments. The unit accepts 115VAC input and provides four independent, supervised outputs that enable fault detection and circuit integrity monitoring on each channel.

Key Features

• Input Voltage: 115VAC, 50/60 Hz for North American installations
• Output Voltage: 24VDC regulated output across four independent channels
• Maximum Current Capacity: 7.5 amps total system current
• Output Channels: Four (4) supervised and fused outputs enabling individual circuit protection and fault reporting
• Fused Protection: Each output incorporates individual fusing for selective circuit isolation and protection against short-circuit conditions
• Supervision: Each output includes built-in supervision capability, allowing the control panel to detect open-circuit or short-circuit faults on supervised branches
• Voltage Regulation: Regulated 24VDC output maintains stable power delivery across varying load conditions
• Compact Design: Wall-mounted enclosure suitable for security cabinet and electrical panel integration

Integration & Compatibility

The Altronix T3SSK77524 is engineered for direct integration with security control panels and access control systems that require multi-channel, supervised 24VDC power distribution. The fused outputs and supervision monitoring make this supply compatible with hardwired access control devices, door strike magnets, barrier gates, auxiliary equipment, and alarm signaling circuits. Technicians can configure each of the four outputs to serve different system branches, enabling selective power management and independent fault detection. The 115VAC input accepts standard North American utility power, and the compact form factor allows installation in standard security equipment racks, surface-mounted enclosures, or vertical cabinet configurations.

Application Suitability

Security integrators and IT managers select the T3SSK77524 for applications requiring reliable supervised power distribution without battery backup complexity. Common installations include multi-door access control systems, parking facility barriers, perimeter gate controls, and distributed auxiliary equipment supplies. The four-output configuration reduces wiring complexity in larger installations by centralizing power management and supervision into a single unit.

Karl Wilson

I've evaluated the Altronix T3SSK77524 during several multi-site access control deployments, and it consistently delivers the supervised power distribution integrators need without unnecessary complexity. At 7.5 amps across four outputs, this supply handles typical access control branch circuits effectively, and the individual fusing on each output prevents a single fault from cascading across the entire system.

Technical Highlights:

• Four Independent Supervised Outputs: The T3SSK77524 gives you fault detection on each branch independently. If a strike magnet fails or a wire shorts, the control panel knows exactly which circuit is affected.
• Fused Output Protection: Individual fuses mean selective isolation. A fault on one door's power circuit won't disable the entire access system.
• 24VDC Regulation: Voltage stability across variable load conditions ensures consistent operation of solenoids, readers, and auxiliary devices.

Deployment Considerations:

• Verify your control panel supports supervision input from four-channel supplies before specifying; some legacy panels require separate supervision modules.
• Size circuit loads carefully—7.5 amps total means you cannot run all four outputs at maximum draw simultaneously on larger installations; load balancing across branches is essential.
• Install in a secure, temperature-controlled location to ensure longevity; avoid moisture-prone or high-temperature environments.

For straightforward, no-battery-backup access control and auxiliary power needs, the T3SSK77524 is a reliable choice that scales across four independent circuits without adding integration overhead. It's a field-proven platform that works well in both retrofit and new installations.
