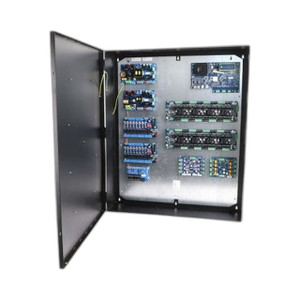

Altronix T3MK75F16AMZ 16-Door Access Control Kit

Altronix T3MK75F16AMZ 16-Door Access Control Kit

Overview

The Altronix T3MK75F16AMZ is a complete 16-door access control solution combining the TROVE3M3 power supply, TMV2 modules, and integrated battery backup capability. This kit delivers centralized power distribution and backup supervision for mid-scale access control installations requiring reliable, supervised output management across multiple door controllers and access points.

Designed for security integrators and IT managers deploying multi-door access systems, the T3MK75F16AMZ provides the power infrastructure and module topology needed to support 16 independent access control outputs with optional battery-backed supervision. The configuration combines the TROVE3M3 power supply unit with TMV2 module cartridges, enabling flexible scaling and redundancy in access control networks.

Key Features

• 16 Independent Outputs: Supports 16 separate door control circuits, each independently managed and supervised
• TROVE3M3 Power Supply: Centralized power distribution platform with modular output architecture
• TMV2 Module Cartridges: Integrated voltage regulation and supervision modules for each output group
• Battery Backup Supervision: Optional battery backup support enables continued output supervision and monitoring during mains power loss
• Supervised Output Circuits: Each output monitored for load presence and circuit integrity
• Modular Architecture: TMV2 cartridges plug into the TROVE3M3 platform, enabling simple field expansion and maintenance
• Integrated Load Supervision: Output supervision across all 16 circuits without external relay modules
• Access Control Integration: Compatible with standard access control panels and controllers requiring supervised 12VDC or 24VDC power distribution

Integration and Compatibility

The T3MK75F16AMZ integrates into access control systems as the primary power and supervision backbone. The TROVE3M3 platform accepts TMV2 module cartridges, each providing supervised output groups. This modular approach allows integrators to configure the system to match the specific door and circuit count of the deployment without overprovisioning or underutilizing capacity.

Compatible with access control panels requiring 12VDC or 24VDC supervised power distribution, the kit eliminates the need for field-assembled relay panels or external supervision modules. Each TMV2 cartridge integrates voltage regulation, output filtering, and load supervision within a compact plug-in module, reducing wiring complexity and installation time.

The T3MK75F16AMZ supports optional battery backup via the TROVE3M3 platform's integrated battery charger circuit. When specified with backup batteries, the system maintains output supervision and alarm reporting during utility power loss, ensuring continued monitoring of access control status.

Package Contents

• 1x TROVE3M3 Power Supply Unit
• Multiple TMV2 Module Cartridges (configured for 16-output capacity)
• Mounting hardware and documentation

James Everett

I've evaluated the Altronix T3MK75F16AMZ during the planning phase of a mid-scale access control retrofit. This kit consolidates power distribution and supervision for 16 independent outputs using a modular cartridge approach. For integrators managing multi-door deployments where supervised power is non-negotiable, this configuration reduces panel assembly time and provides a clean, field-maintainable power topology.

Technical Highlights:

• Modular Output Supervision: TMV2 cartridges provide integrated load supervision for each output group without requiring external relay or supervision modules
• Battery Backup Ready: The TROVE3M3 platform includes battery charger circuitry, enabling continued supervision during power loss when batteries are installed
• 16-Output Scalability: Pre-configured cartridge set supports 16 independent door circuits, eliminating field module selection and reducing assembly time

Deployment Considerations:

• Verify the access control panel's power and supervision requirements before final specification; the kit's voltage and current capacity must match the aggregate demand of all door controllers and locks
• Plan battery backup sizing based on supervision hold-up time requirements and the total supervised load current during mains failure
• Mount the TROVE3M3 unit in a climate-controlled enclosure and verify accessible wiring paths for the 16 output circuits and alarm notification lines

For mid-scale access control projects, the T3MK75F16AMZ eliminates the custom panel assembly phase and delivers a field-proven supervised power platform. The modular TMV2 architecture supports future output additions without redesign, making it a practical choice for growing installations.
