Altronix R615DC416UL 16-Output CCTV Power Supply

Altronix R615DC416UL 16-Output CCTV Power Supply

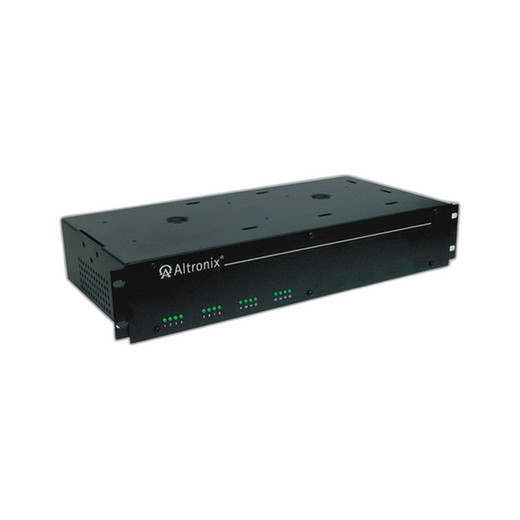

The Altronix R615DC416UL is a rack-mount DC power supply designed for CCTV installations requiring multiple independent power feeds. This 16-output unit accepts 115VAC input and delivers regulated 6-15VDC output with 4A per output, making it suitable for camera arrays, access control systems, and distributed surveillance infrastructure. Each output is individually fused, providing protection and isolation for connected devices.

Key Features

• 16 independent fused outputs with individual 4A capacity per channel
• Regulated 6-15VDC output voltage selectable to match system requirements
• 115VAC single-phase input for standard facility power integration
• Rack-mount form factor for integration into equipment cabinets and control rooms
• UL Listed and CE marked for North American and European deployment
• Fused output protection isolates failed loads from system operation
• Lifetime Limited Warranty covering manufacturing defects and component failure

Applications

• Multi-camera CCTV systems with centralized power distribution
• Surveillance networks requiring independent power feeds to each sensor or PTZ camera
• Access control and intrusion detection system power backup and distribution
• Video analytics and edge computing devices requiring stable, regulated DC power
• Distributed security infrastructure with modular power requirements

Specifications

• Model: Altronix R615DC416UL
• Input Voltage: 115VAC
• Output Voltage: 6-15VDC (selectable/adjustable)
• Number of Outputs: 16
• Maximum Current per Output: 4A
• Output Protection: Individual fuses per channel
• Mounting: Rack-mount configuration
• Certifications: UL Listed, CE Marked
• Warranty: Lifetime Limited Warranty
