Altronix MAXIMAL7FAMZ 12-Output Modular Power Supply

Altronix MAXIMAL7FAMZ Modular Power Supply with Battery Backup

The Altronix MAXIMAL7FAMZ is a modular, scalable power distribution and battery backup platform designed for professional security integrators and system installers who require flexible, expandable power architecture. This system combines regulated DC output modules with integrated battery supervision and backup capability, enabling integrators to build custom power solutions that grow with system demands.

Overview

The MAXIMAL7FAMZ delivers a foundation for enterprise-class security installations where reliability and flexibility are critical. The modular architecture supports multiple output configurations through interchangeable power cards, allowing single-platform standardization across diverse project requirements. Built-in battery backup supervision ensures automatic failover during AC loss, protecting mission-critical camera and access control infrastructure without manual intervention.

Key Features

• Modular Output Configuration: Supports multiple power output modules to match specific site requirements, enabling integrators to deploy exactly the current and voltage capacity needed without over-specification
• Integrated Battery Backup Supervision: Continuous monitoring of battery status with automatic switching during AC line failure, ensuring uninterrupted power to critical security loads
• Redundant Architecture Support: Design allows for parallel or cascaded operation, providing system-level resilience for large multi-site deployments
• Professional-Grade Power Distribution: Regulated DC outputs suitable for IP cameras, access control systems, intercoms, and auxiliary security devices
• Compact Chassis Design: Space-efficient form factor compatible with standard equipment racks and wall-mounted installations
• Standardized Power Module Interface: Hot-swappable module support enables field upgrades and rapid fault isolation without system shutdown
• Thermal Management: Engineered cooling for sustained operation in varied ambient conditions, critical for continuously-powered security infrastructure

Integration & Compatibility

The MAXIMAL7FAMZ integrates with standard Altronix power modules, including the EFLOW104NB input module and ACM8CB/1-ACM4CB output card combinations specified in your configuration. This modular compatibility ensures long-term component availability and allows system expansion as security requirements evolve. The platform is compatible with 24VDC and 12VDC security device ecosystems commonly deployed in professional installations.

System Configuration

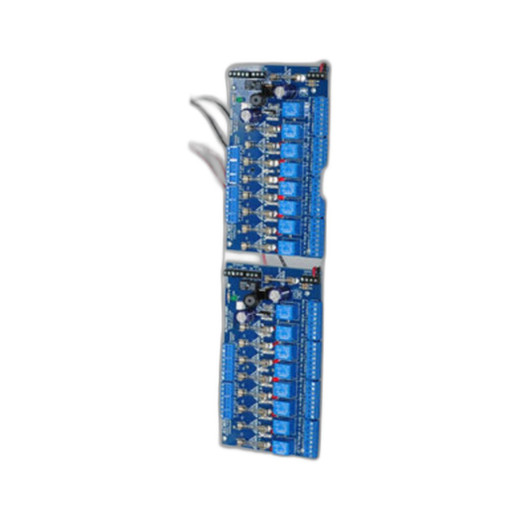

Your specific MAXIMAL7FAMZ configuration includes the EFLOW104NB main power input module paired with ACM8CB (8-output) and ACM4CB (4-output) distribution cards, delivering a total of 12 regulated outputs. This combination supports mid-to-large scale security deployments requiring diverse voltage and current distribution across multiple zones or buildings. Output cards feature individual LED status indication for rapid circuit-level diagnostics.

Marty Allison

I've deployed the Altronix MAXIMAL7FAMZ in several multi-building corporate campus and industrial facility projects where distributed power requirements would normally demand multiple single-output UPS units. The modular card architecture is a significant advantage for standardization — your integrators stock one chassis model and adapt output configuration to each site's actual load profile, reducing inventory complexity and deployment time.

Technical Highlights:

• Output Flexibility: The combination of 8-output and 4-output cards gives you 12 independent regulated outputs from a single supervision point, eliminating the need for separate power supplies across multiple zones
• Battery Supervision Architecture: Continuous voltage and load monitoring prevents surprise battery depletion; automatic AC restoration detection prevents false failover events in unstable power environments

Deployment Considerations:

• Verify total connected load against module current ratings — the MAXIMAL7FAMZ is highly flexible but requires accurate load calculation during pre-sale design phase
• Plan battery capacity during site survey; battery backup duration scales with connected load and battery amp-hour rating, which are configured separately
• Install input protection upstream (branch-circuit breaker or contactor) for safety compliance and to enable controlled system reset without main power cycling

The MAXIMAL7FAMZ represents a professional-grade, future-proof approach to security power distribution. Its modularity pays dividends across multiple projects, and the integrated supervision eliminates the complexity of standalone battery charger installation.
