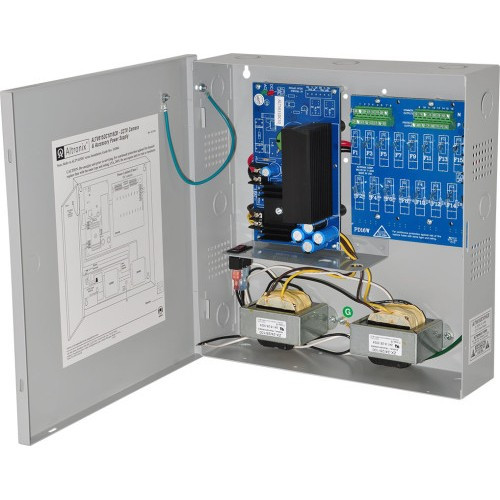

Altronix ALTV615DC1016CB 16-Output CCTV Power Supply

Altronix ALTV615DC1016CB 16-Output CCTV Power Supply

The Altronix ALTV615DC1016CB is a 16-output regulated DC power supply designed for distributed CCTV camera systems and access control installations. Operating from 230VAC input, the ALTV615DC1016CB delivers independently fused outputs across 6–15VDC range, supporting both 12VDC and 6VDC camera loads in a single enclosure. This multi-output architecture eliminates the need for multiple smaller supplies while maintaining individual circuit protection and voltage flexibility across connected devices.

Key Features

• 16 independently fused DC outputs for modular circuit protection
• Adjustable output voltage range from 6VDC to 15VDC on each channel
• Maximum current capacity: 11A @ 12VDC or 10A @ 6VDC per supply
• 230VAC input operation for international installations
• Regulated output voltage maintains stable performance across connected loads
• UL Listed certification for safety compliance
• Compact form factor suitable for DIN rail or enclosed mounting

Applications

• Multi-camera CCTV surveillance systems requiring centralized power distribution
• Access control networks with mixed 6VDC and 12VDC device requirements
• Distributed IP camera installations in commercial facilities
• Integrated security systems combining cameras, readers, and auxiliary devices
• Retrofit installations where individual camera power supplies require consolidation

Specifications

• Model: ALTV615DC1016CB
• Input Voltage: 230VAC
• Output Voltage Range: 6–15VDC (independently adjustable per output)
• Maximum Current: 11A @ 12VDC / 10A @ 6VDC
• Number of Outputs: 16
• Protection: Individual output fusing
• Certifications: UL Listed
• Warranty: Lifetime Limited Warranty
