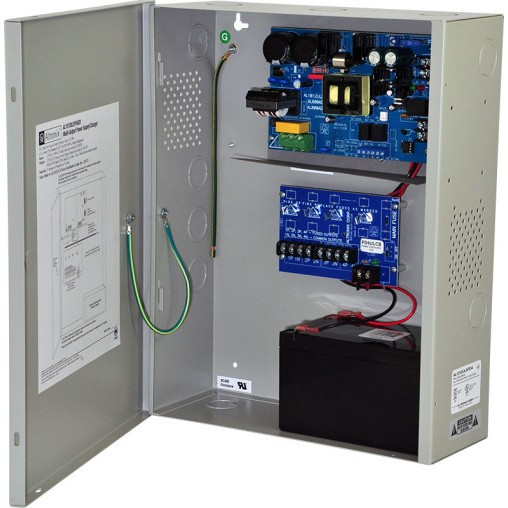

Altronix AL1012ULXPD4CB 4 Output Power Supply/Charger- 12VDC

Altronix AL1012ULXPD4CB 4-Output 12VDC Power Supply/Charger

The Altronix AL1012ULXPD4CB is a UL-listed 12VDC power supply and battery charger engineered for security and access control installations requiring distributed power management across multiple outputs. With four independent 12VDC outputs capable of 10A each, the AL1012ULXPD4CB delivers reliable primary and backup power to door locks, card readers, cameras, and access panels in networked deployments.

Key Features

• Four isolated 12VDC outputs rated 10A per channel for modular power distribution
• Integrated battery charging with AC fail supervision and automatic switchover to backup power
• Low battery detection and alert functionality for proactive system monitoring
• Battery presence detection to verify backup power readiness
• UL Listed construction for compliance with commercial security standards
• Individual output control enabling selective load management across channels
• Lifetime Limited Warranty providing extended product protection

Applications

• Multi-door access control systems requiring independent power feeds to electromagnetic locks and card readers
• Distributed surveillance networks where camera and network equipment groups require separate, supervised power supplies
• Building automation hubs with backup power for continuity during utility power loss
• Alarm system installations needing redundant power channels with battery backup and supervision

Specifications

• Output: 4 × 12VDC @ 10A per channel
• Primary Power: AC-powered with battery backup capability
• Supervision: AC Fail, Low Battery, Battery Presence detection
• UL Listed
• Warranty: Lifetime Limited Warranty
