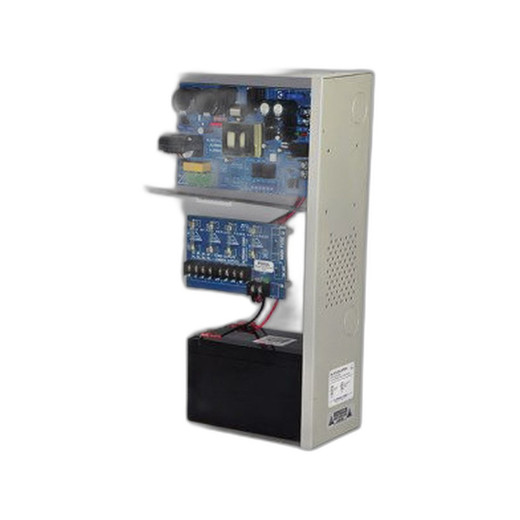

Altronix AL1012ULXPD4 12VDC 10A 4-Output Power Supply

Altronix AL1012ULXPD4 12VDC 10A 4-Output Power Supply

The Altronix AL1012ULXPD4 is a 12VDC regulated power supply and charger rated for 10A maximum current across four isolated outputs. This unit accepts 115VAC input and is designed for access control systems, CCTV installations, and other critical security infrastructure requiring reliable DC power distribution with integrated battery backup functionality. The AL1012ULXPD4 combines multiple independent outputs with supervision capabilities to ensure continuous operation in both normal and backup power conditions.

Key Features

• Four independent 12VDC outputs from single 115VAC input
• 10A maximum aggregate current capacity
• Integrated battery backup charging and monitoring
• AC Fail supervision detects loss of mains power
• Low Battery supervision alerts to depleted backup battery condition
• Battery Presence supervision confirms backup battery installation and connectivity
• Regulated 12VDC output for stable device operation
• Compact multi-output design eliminates need for separate chargers

Applications

• Access control system power distribution with battery-backed door locks and readers
• Distributed camera power for IP and analog CCTV installations requiring failover capability
• Alarm system control panel backup power and auxiliary device charging
• Telecommunications equipment and network infrastructure power conditioning
• Building automation sensor and controller power with uninterrupted operation

Specifications

• Input Voltage: 115VAC
• Output Voltage: 12VDC regulated
• Maximum Current: 10A
• Number of Outputs: 4
• Battery Backup: Yes
• Supervision Features: AC Fail, Low Battery, Battery Presence
• Warranty: Lifetime Limited Warranty
