Hikvision DS-KABD8003-RS3 Protective Shield

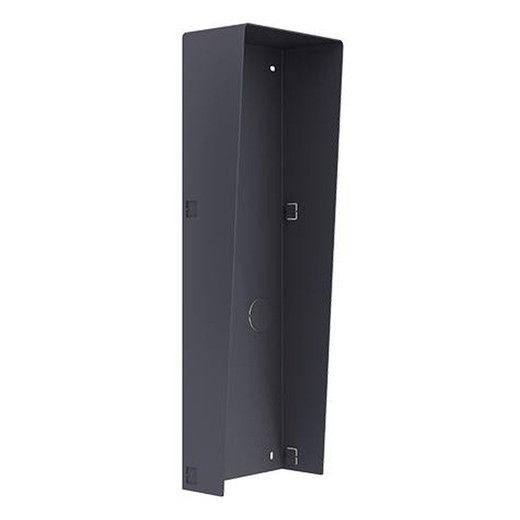

Hikvision DS-KABD8003-RS3 Protective Shield for DS-KD8003-IME1 Door Station

The Hikvision DS-KABD8003-RS3 Protective Shield is a purpose-built weatherproof accessory engineered to safeguard the DS-KD8003-IME1 Door Station against environmental exposure and physical damage. Constructed from durable SECC material, this shield extends the operational lifespan of your door station while maintaining full functionality in demanding outdoor and semi-outdoor installations.

Key Features

• SECC material construction for superior corrosion and weather resistance
• Purpose-designed compatibility with DS-KD8003-IME1 door stations
• Compact form factor: 325.8 x 116.4 x 58 mm (12.83" x 4.58" x 2.28")
• Lightweight at 702.3g for easy installation and handling
• Wall-mounted installation with secure anchoring system
• Extreme temperature tolerance: -40°C to +60°C (-40°F to 140°F)
• Wide humidity operating range: 10% to 95% for reliable performance

Technical Specifications

• Material: SECC (Galvanized steel for enhanced durability)
• Weight: 702.3g (1.55 lbs)
• Dimensions: 325.8 x 116.4 x 58 mm
• Operating Temperature: -40°C to +60°C
• Operating Humidity: 10% to 95% (non-condensing)
• Installation Method: Surface-mounted wall installation with leveling sticker and anchoring

Installation & Applications

Installation is straightforward: position the leveling sticker on the wall, drill four anchor holes (6mm diameter x 25mm depth), and secure the shield using the provided hardware. This protective shield is ideal for commercial building entrances, office access points, multi-unit residential buildings, and any application where door station protection is required in variable weather conditions.
