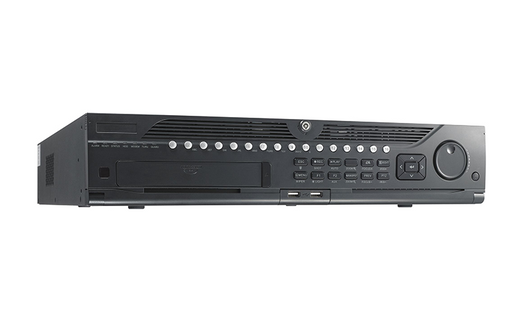

Hikvision DS-9664NI-I8-48TB 64-Channel 4K 48TB NVR

The Hikvision DS-9664NI-I8-48TB NVR caters to businesses and organizations seeking a robust and scalable video surveillance solution. This powerful re…

Add to cart for sale price
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Hikvision DS-9664NI-I8-48TB 64-Channel 4K 48TB NVR

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DS-9664NI-I8-48TB
UPC: 813908024258
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Description

The Hikvision DS-9664NI-I8-48TB NVR caters to businesses and organizations seeking a robust and scalable video surveillance solution. This powerful recorder seamlessly integrates with up to 64 IP cameras , supporting recording at resolutions of up to 4K UHD for exceptional image clarity and detailed monitoring. Additionally, it boasts advanced features like H.265 video compression for efficient storage management and PoE+ technology for simplified installation with compatible cameras. The pre-installed 48TB HDD provides ample storage capacity, minimizing the need for frequent upgrades.

Key Features:

  • High-Resolution Recording: Capture sharp and detailed video footage with support for recording at up to 4K UHD resolution on all 64 channels, ensuring accurate identification of individuals and objects of interest.
  • Efficient Storage Management: Utilize H.265 video compression technology, significantly reducing storage requirements and network bandwidth consumption compared to older codecs like H.264.
  • Simplified Installation with PoE+: Eliminate the need for separate power supplies for compatible cameras with integrated PoE+ technology, delivering both data and power over a single Ethernet cable.
  • Pre-installed Storage: Get started quickly with the included 48TB HDD, offering ample storage capacity for recordings.
  • Enhanced Scalability: Expand storage capacity further by utilizing the available 8 SATA III HDD bays for future needs.
  • Centralized Management and Control: Manage and monitor your entire security system from a single platform, simplifying administration and enhancing operational efficiency.

Compatibility:

  • Primarily compatible with Hikvision IP cameras.
  • May also be compatible with other ONVIF-compliant cameras with limitations. Refer to the manufacturer's documentation for specific compatibility details.

Package Contents:

  • Hikvision DS-9664NI-I8-48TB NVR
  • Power cord
  • Quick Start Guide

Summary:

The Hikvision DS-9664NI-I8-48TB NVR emerges as a powerful and versatile solution for large-scale security deployments. It delivers high-resolution recording, efficient storage management, simplified installation with PoE+, and ample pre-installed storage, making it ideal for organizations seeking a scalable and reliable surveillance system.

Specifications
Frame Rate: 30fps
IP Video Input: 64-ch;Up to 12 MP resolution;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 256 Mbps
Incoming Bandwidth (RAID Mode: 200 Mbps
Outgoing Bandwidth (RAID Mode: 200 Mbps
HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF;*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous Playback: 16-ch
Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type: RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA: 8 SATA interfaces supporting hot-plug
ESATA: 1 eSATA interface
Capacity: Up to 10TB capacity for each disk
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Type: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 30 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Chassis: 3U chassis
Dimension (W × D × H: 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight: ≤ 10 kg (22 lb)
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
