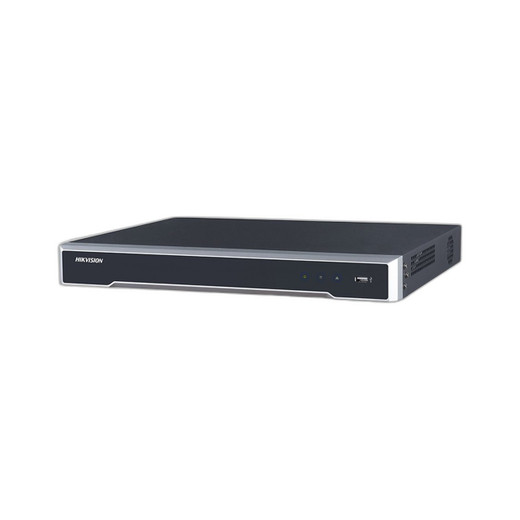

Hikvision DS-7608NI-Q2/8P-8TB 8-Channel NVR

Hikvision DS-7608NI-Q2/8P-8TB 8-Channel 4K NVR with 8TB Storage

The Hikvision DS-7608NI-Q2/8P-8TB is a professional-grade 8-channel Network Video Recorder designed for enterprise and mid-market surveillance deployments. This compact 1U NVR combines 8MP 4K recording capability with 8TB of pre-installed HDD storage, delivering a complete surveillance solution that balances performance, storage capacity, and ease of deployment. With integrated Power over Ethernet (PoE) support across all 8 channels, this recorder simplifies camera installation while reducing infrastructure costs.

Key Features

• 8MP 4K Resolution Recording — Captures ultra-high-definition video with exceptional clarity and detail for identification and forensic analysis
• 8-Channel PoE Input — Built-in PoE support for all 8 channels eliminates the need for separate power supplies at camera locations
• 8TB HDD Storage — Pre-installed dual SATA drive bays supporting up to 8TB per disk for extended recording retention
• H.265+ Video Compression — Advanced codec reduces file sizes by up to 50% compared to H.264, maximizing storage efficiency without sacrificing image quality
• Dual Output Support — Simultaneous HDMI and VGA output with 4K HDMI capability (4096×2160/3840×2160 @ 30 fps) for flexible monitoring configurations
• Human/Vehicle Analysis — Intelligent detection capabilities for enhanced event filtering and smart alerts
• 8-Channel Synchronous Playback — Review all 8 channels simultaneously for efficient investigation and incident review
• Two-Way Audio — RCA audio input/output for intercom functionality and remote communication

Technical Specifications

• Video Input: 8-ch IP video input supporting 8MP/6MP/5MP/4MP/3MP/1080p and lower resolutions
• Decoding Capability: 1-channel @ 8MP (30 fps) or 5-channel @ 1080p (30 fps) simultaneous decoding
• Bandwidth: 80 Mbps incoming and outgoing for network streaming and remote access
• Supported Codecs: H.265+, H.265, H.264+, H.264 recording and decoding
• Network Interface: Single RJ-45 Gigabit Ethernet with TCP/IP, DHCP, DDNS, NTP, and Hik-Connect cloud connectivity
• Power Consumption: ≤80W (NVR only) with 48V, 2.5A MAX external power supply; PoE provides up to 15W per channel
• Operating Environment: -10 to +55°C, 10 to 90% humidity (non-condensing)
• Form Factor: Compact 1U chassis (385×315×52 mm, ≤2.6 kg)

Applications

Ideal for small to medium-sized businesses, retail environments, educational institutions, manufacturing facilities, and enterprise branch offices requiring scalable 4K surveillance with efficient storage management and straightforward deployment.

Karl Wilson

The DS-7608NI-Q2/8P-8TB represents a balanced solution for organizations transitioning to higher-resolution surveillance without overwhelming infrastructure demands. The integrated PoE design eliminates cabling complexity typical of legacy analog systems, while H.265+ compression ensures 8TB of storage provides meaningful retention for 8MP streams. The dual SATA bays allow for future capacity expansion, and simultaneous HDMI/VGA output supports hybrid control room environments.

With 80 Mbps bidirectional bandwidth, the NVR accommodates real-time remote monitoring over managed corporate networks. The human/vehicle detection capabilities provide intelligent event indexing, reducing investigative review time. Notably, the compact 1U form factor and low power draw make this recorder suitable for space-constrained server rooms or edge deployments, while Hik-Connect cloud integration enables secure remote access without requiring complex VPN configuration.
