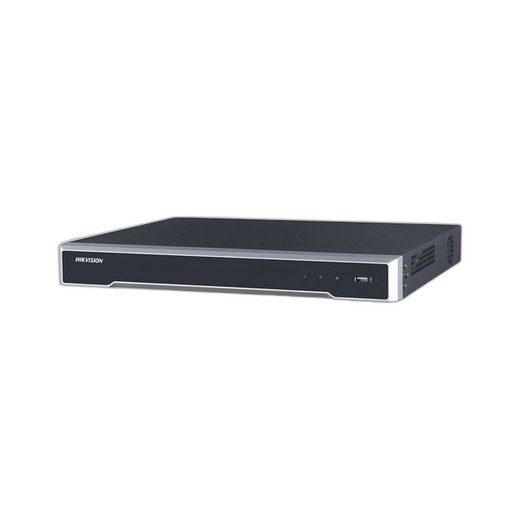

Hikvision DS-7608NI-Q2/8P 8-Channel 4TB NVR

Hikvision DS-7608NI-Q2/8P 8-Channel 4TB NVR

The Hikvision DS-7608NI-Q2/8P-4TB is a compact, enterprise-grade 8-channel Network Video Recorder designed for mid-scale surveillance deployments. With 4TB of pre-installed storage, 8MP resolution support, and integrated Power over Ethernet (PoE) capability, this 1U rackmount NVR delivers professional-grade recording and playback performance while maintaining a minimal footprint. Built for reliability and ease of integration, it serves businesses, enterprises, and security integrators requiring dependable surveillance infrastructure.

Key Features

• 8MP Recording Resolution — Supports up to 8MP recording with multiple resolution options including 6MP, 5MP, 4MP, 1080p, and lower formats for flexible storage optimization
• H.265+ Video Compression — Advanced codec technology reduces bandwidth and storage requirements while maintaining video quality
• 8 PoE Channels — Integrated Power over Ethernet simplifies camera deployment and reduces cabling complexity
• 4TB Pre-installed Storage — Dual SATA interfaces support up to 8TB per disk, with microSD backup capability for flexible expansion
• Dual Video Output — Simultaneous HDMI and VGA output with 4K HDMI support (3840 × 2160@30Hz) and multiple resolution options
• Smart Analytics — 4-channel human and vehicle analysis for intelligent event detection and alarm triggering
• Two-Way Audio — 1-channel RCA two-way audio support for interactive communication
• 8-Channel Synchronous Playback — View and review all 8 channels simultaneously for comprehensive event investigation

Technical Specifications

Video Processing: Decodes H.265+, H.265, H.264+, and H.264 formats with 1-channel 8MP@30fps or 5-channel 1080p@30fps simultaneous decode capability. 80 Mbps incoming and outgoing bandwidth supports high-resolution streaming and remote access.

Connectivity & Networking: Single 10/100 Mbps RJ-45 Ethernet interface with comprehensive protocol support including TCP/IP, DHCP, DDNS, NTP, HTTPS, Hik-Connect, SMTP, NFS, and iSCSI. Plug-and-play architecture with automatic camera detection and configuration.

Physical Design: Compact 1U rackmount chassis (385 × 315 × 52 mm) with ≤80W power consumption via 48V DC 2.5A supply. Operating range of -10°C to +55°C supports diverse deployment environments.

Applications

Ideal for retail operations, office complexes, small-to-medium enterprise facilities, and managed security service providers (MSSPs) requiring scalable, reliable surveillance infrastructure. The compact form factor suits server room or network closet installation, while comprehensive analytics and remote management capabilities support both on-site and cloud-based monitoring workflows.

Karl Wilson

The DS-7608NI-Q2/8P represents solid mid-market NVR architecture. H.265+ compression delivers tangible bandwidth savings—critical in bandwidth-constrained environments or when managing multiple sites remotely. The dual SATA design with microSD fallback provides recovery flexibility without relying solely on network-attached storage.

Integrated PoE eliminates separate injectors for smaller deployments, reducing bill of materials. The 8MP capability future-proofs against higher-resolution cameras, though actual storage capacity (4TB) limits extended recording at maximum resolution across all 8 channels—typical operation will require resolution balancing or redundant storage. Dual simultaneous video output (HDMI + VGA) accommodates legacy NOC environments without additional converters.

Two-way audio and VCA analytics are standard for modern SMB deployments. Network protocol breadth (HTTPS, iSCSI, NFS) enables enterprise integration with existing infrastructure. The compact 1U form factor and modest 15W PoE consumption make it a practical choice for distributed installations or bandwidth-sensitive operations.
