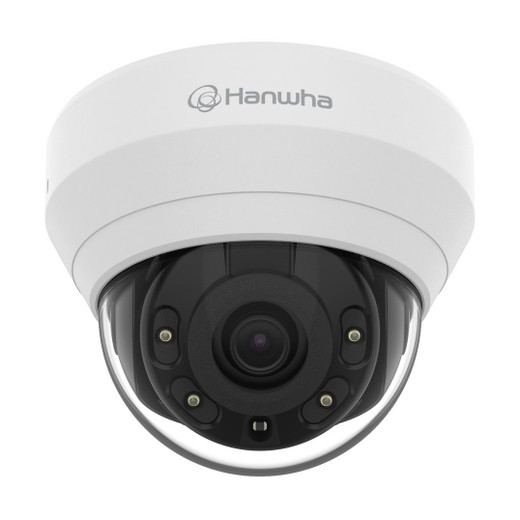

Hanwha QND-6012R 2MP IR Dome IP Camera

Hanwha QND-6012R 2MP IR Dome IP Camera

The Hanwha QND-6012R is a compact 2-megapixel fixed dome camera engineered for reliable indoor surveillance in corporate, retail, and institutional environments. Delivering Full HD 1080p video at 30fps with integrated IR illumination and Wide Dynamic Range (WDR) technology, the QND-6012R combines image quality with practical low-light performance in a discreet form factor.

Key Features

• 2MP Full HD (1920×1080) resolution at 30fps
• 120dB Wide Dynamic Range (WDR) for balanced exposure in mixed lighting
• Built-in IR LED illumination (850nm) with 20m effective range
• Day/Night capability with automatic ICR switching
• H.265/H.264 and MJPEG video compression with WiseStream II smart codec
• PoE powered (IEEE 802.3af, Class 3) — single cable deployment
• Fixed 2.8mm lens with 114° horizontal field of view
• IP66 environmental rating for durability
• MicroSD card slot (up to 128GB) for edge storage
• Built-in microphone for audio capture

Technical Highlights

Imaging & Optics: The 1/2.8" CMOS sensor delivers a minimum illumination of 0.03 Lux in color mode (0 Lux with IR enabled), supporting multiple resolution formats from VGA to Full HD. Intelligent backlight compensation includes BLC, WDR, and SSDR modes to handle challenging lighting scenarios. Electronic shutter speeds range from 1/5 to 1/12,000 seconds for precise exposure control.

Network & Integration: ONVIF Profile S/G/T compliance ensures compatibility with third-party VMS platforms. The camera supports IPv4/IPv6 networking with secure protocols including HTTPS, SRTP, and 802.1X authentication. Multiple simultaneous streams (up to 3 profiles) via unicast and multicast enable flexible deployment. Firmware encryption and device certificate authentication protect against unauthorized access.

Analytics & Monitoring: Embedded video analytics include motion detection (4 polygonal zones), tampering detection, defocus detection, virtual line crossing, and intrusion detection. Alarm triggers can initiate FTP uploads, email notifications, or SD card recording. Single alarm input/output allows integration with external devices.

Efficiency: Power consumption is minimal (6.00W typical via PoE), reducing infrastructure load. WiseStream II adaptive bitrate codec optimizes bandwidth while maintaining image quality. Privacy masking supports up to 6 rectangular zones for GDPR and sensitivity compliance.

Applications

Ideal for office lobbies, retail checkout areas, hallways, and interior building access points where discreet surveillance and reliable 24-hour coverage are required. The compact dome design and IP66 rating support both standard indoor and transitional spaces (covered entryways, stairwells). Edge storage via microSD enables temporary local recording during network interruptions.

Jerry Tildsen

The QND-6012R strikes a balance between cost and capability. Its WDR engine (120dB) handles spaces with mixed ambient and task lighting—common in modern workplaces—while the fixed 2.8mm lens and 114° FOV suit standard interior installations. PoE simplicity and microSD backup appeal to organizations avoiding dedicated NVR infrastructure.

However, the 2MP resolution and fixed lens limit deployment in high-detail forensic scenarios or long-distance recognition tasks. Best suited for general deterrence and event verification rather than identification-class security.
