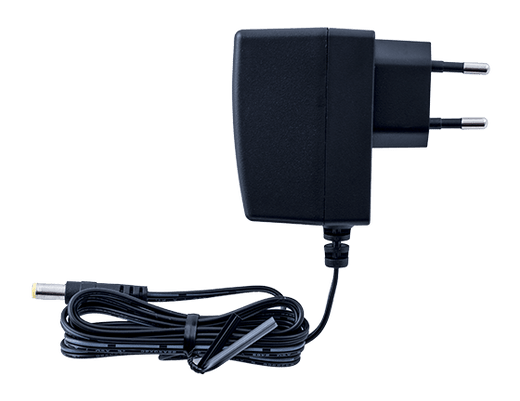

2N Induction Loop Power Supply 01393-001

2N Induction Loop Power Supply 01393-001

The 2N Induction Loop Power Supply (01393-001) is a compact, reliable power solution designed to support induction loop systems in security and accessibility applications. Induction loops enable audio transmission directly to hearing aids and cochlear implants, making this power supply essential for ADA-compliant facilities and venues requiring inclusive communication infrastructure.

Key Features

• Purpose-built for induction loop system support
• Compact form factor: 160mm × 100mm × 32mm
• High-efficiency design reduces operational energy costs
• Reliable 48W power output for consistent audio performance
• Wide operating temperature range: -30°C to 60°C
• Universal input voltage: 100-240V AC, 50/60Hz

Technical Specifications

• Input Voltage: 100-240V AC, 50/60Hz
• Output Voltage: 24V DC
• Power Output: 48W
• Efficiency: High efficiency design for energy savings
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)
• Dimensions: 160mm × 100mm × 32mm (6.3" × 3.94" × 1.26")
• Weight: 0.43 kg (0.95 lbs)

Applications

• Public facilities and government buildings requiring ADA compliance
• Airports, transit stations, and transportation hubs
• Educational institutions and training centers
• Healthcare facilities and medical offices
• Conference centers and auditoriums
• Retail and hospitality environments

The 2N power supply integrates seamlessly into existing induction loop infrastructure, providing the stable 24V DC output required for uninterrupted audio transmission. Its compact design allows flexible mounting in control rooms or equipment cabinets, while the wide input voltage range ensures compatibility across international installations.
