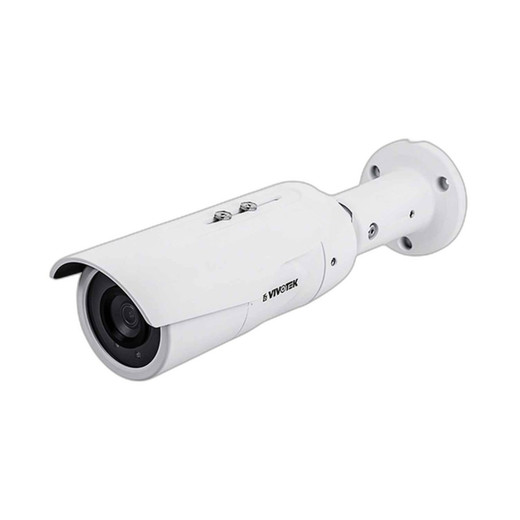

Vivotek Vortex IB839 EH 5MP Outdoor WDR Pro Fixed Microphone IP Camera

Vivotek IB839 EH 5MP Outdoor WDR Pro IP Camera

The Vivotek Vortex IB839 EH is a robust 5MP outdoor fixed IP camera engineered for demanding surveillance environments. Combining advanced WDR Pro imaging with integrated microphone capabilities and AI-powered video analytics, this camera delivers comprehensive monitoring for organizations requiring reliable outdoor coverage in variable lighting conditions. With 30-meter IR illumination and sophisticated people, vehicle, and object detection, the IB839 EH provides intelligent surveillance with minimal false alarms.

Key Features

• 5MP Progressive CMOS sensor delivering 2560 x 1920 HD resolution at 15fps
• WDR Pro technology for balanced imaging in mixed and extreme lighting conditions
• Integrated microphone for synchronized audio-video monitoring
• 30-meter IR illumination with day/night capability (0.06 lux color, 0.01 lux B/W)
• AI-powered video analytics: intrusion, line crossing, loitering, and scene search detection
• People, vehicle, and object analytics including unattended and missing object detection
• Tampering detection for added security assurance
• Fixed 3.6mm f/2.0 lens with 76° horizontal field of view
• IP66-rated metal housing rated IK10 for extreme durability
• PoE Class 0 powered (8-11W) with low bandwidth requirements (300Kbps SD, 1.2Mbps HD)
• Built-in 256GB industrial microSD card for onboard storage
• Support for up to 6 simultaneous client connections
• Secure boot, firmware signing, HTTPS/TLS encryption, and video encryption

Technical Highlights

The IB839 EH operates reliably across a wide temperature range (40–50°C with IR on, 40–60°C with IR off) and handles 98% relative humidity non-condensing conditions. Its shutter speed range of 1/5 to 1/32,000 seconds ensures optimal exposure in diverse environments. The camera supports WebRTC, RTSP/RTP/RTCP, and standard IP protocols (IPv4/IPv6, DHCP, DNS, NTP, QoS CoS/DSCP) for seamless network integration. Built-in 256GB storage eliminates external card dependencies, and flexible streaming configurations optimize bandwidth allocation based on deployment needs.

Video Analytics & Intelligence

Equipped with advanced AI analytics, the camera detects and tracks unauthorized intrusions, monitors line crossings, identifies loitering behavior, and performs scene search functions for both people and vehicles. Unattended and missing object detection capabilities add an additional layer of proactive monitoring. These features significantly reduce alert fatigue and enable rapid incident response when genuine threats occur.

Ideal Applications

• Parking lots and vehicle access control areas
• Loading docks and perimeter fencing
• Building entrances and exits
• Outdoor storage facilities
• Campus and facility grounds monitoring
• Environments requiring synchronized audio-video evidence capture

Karl Wilson

The IB839 EH represents a well-engineered solution for organizations prioritizing durability and analytical intelligence in outdoor surveillance. The integration of AI-driven people and vehicle detection, combined with object analytics, provides genuine value in reducing operational overhead and false alarm fatigue—common pain points in large-scale outdoor deployments. The built-in 256GB card, integrated microphone, and 30-meter IR range eliminate typical add-on requirements, simplifying procurement and reducing total cost of ownership.

PoE Class 0 support ensures compatibility with standard enterprise infrastructure. The IK10 rating and IP66 housing confirm suitability for harsh environments. For organizations seeking intelligent, self-contained outdoor surveillance without complex integration, this camera delivers reliable performance and actionable insights.
