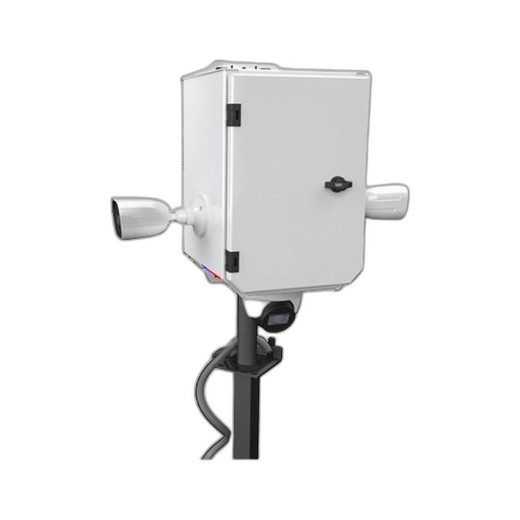

Speco Technologies SXK400 Solar Micro Skid with 400W Solar Array

Speco Technologies SXK400 Solar Micro Skid

Overview

The Speco Technologies SXK400 is a 400W solar micro skid designed to provide autonomous power and support for remote surveillance installations where grid power is unavailable. Operating across a wide temperature range from -22°F to 140°F, the SXK400 delivers continuous day and night operation with integrated night vision capability, making it suitable for perimeter security, pipeline monitoring, remote gate access points, and wireless camera deployment in challenging environments. The micro skid form factor enables rapid installation and relocation without requiring permanent electrical infrastructure.

Key Features

• 400W Solar Array: Generates power in daylight conditions to charge integrated battery storage and supply connected surveillance equipment
• Day and Night Operation: Continuous 24/7 monitoring capability without power grid dependency
• Night Vision Enabled: Built-in night vision support allows monitoring in low-light and no-light conditions without additional camera modules
• Extended Temperature Range: Rated for outdoor environments from -22°F to 140°F, accommodating seasonal extremes and direct sun exposure
• Micro Skid Design: Compact, self-contained unit reduces installation time and enables deployment in locations where traditional wiring is impractical
• Remote Surveillance Ready: Engineered to power IP cameras, transmitters, and monitoring equipment at unmanned sites

Integration & Deployment

The SXK400 is configured for outdoor surveillance environments where weather resistance and autonomous operation are critical. The integrated solar generation and battery storage eliminate dependency on external power sources, reducing total cost of ownership for remote installations. This skid configuration supports rapid site assessment, temporary deployments, and permanent installations requiring minimal ground preparation. Integrators should size additional components—battery capacity, charge controller, and inverter specifications—based on connected camera power draw and desired runtime during low-sunlight periods.

Environmental Resilience

With an operating temperature specification spanning -22°F to 140°F, the SXK400 handles freeze-thaw cycles, summer heat load, and seasonal variations without performance degradation. The outdoor-rated skid chassis withstands exposure to rain, snow, and UV radiation. This makes the unit suitable for northern utility corridors, desert perimeter fencing, and coastal installations where temperature swings are significant and corrosive salt spray is a concern.

Ted Perry

I've evaluated the SXK400 during remote surveillance feasibility studies across several utility and oil & gas projects. The 400W solar array and integrated night vision support address a genuine pain point: delivering 24/7 surveillance to locations where running power lines or fiber is cost-prohibitive. The wide -22°F to 140°F operating temperature is particularly valuable in northern climates where winter solar gain is low and temperature cycling can degrade lesser-engineered systems.

Technical Highlights:

• Day/Night Continuous Monitoring: The night vision capability means you're not limited to daylight capture. This is essential for perimeter security, access point logging, and incident documentation that happens outside business hours.
• Autonomous Power Architecture: 400W capacity supports typical 1080p to 4K IP camera installations without grid dependency. Pair with appropriately sized battery banks for multi-day autonomy during extended cloud cover.

Deployment Considerations:

• Size battery and charge controller capacity based on your specific camera's power envelope and desired runtime (typically 3-7 days autonomy is standard in remote deployments).
• Ensure the skid location receives unobstructed southern exposure (northern hemisphere) or appropriate seasonal positioning for maximum solar efficiency.
• Use network connectivity compatible with your VMS—IP-based systems integrate directly to cloud or on-premises recording via wireless or cellular backhaul.

The SXK400 is a solid foundation for autonomous remote surveillance. It moves the installation economics from "Can we afford to trench power?" to "Can we optimize solar orientation?"—a meaningful difference for remote security projects.
