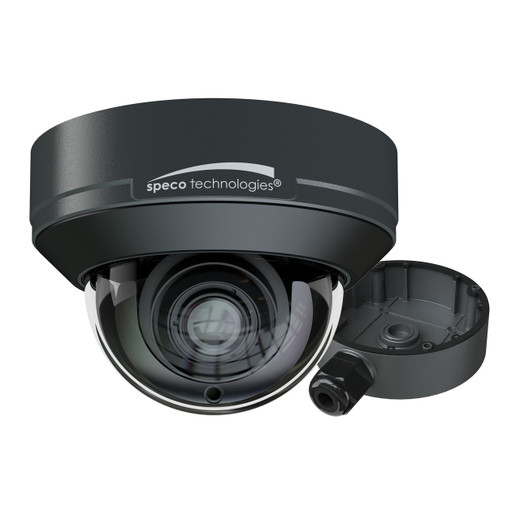

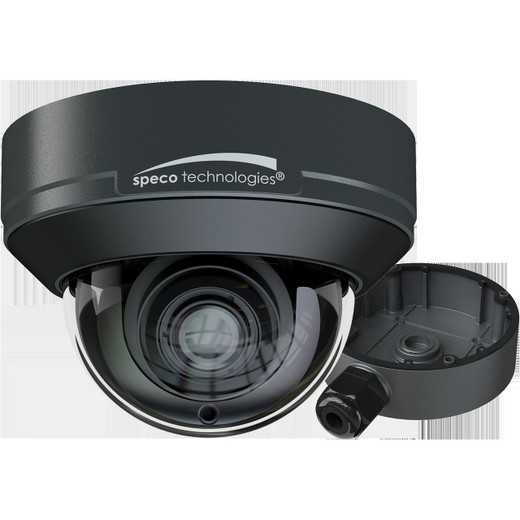

Speco Technologies O4ID2M 4MP Intensifier AI IP Dome Camera with

Speco Technologies O4ID2M 4MP Intensifier AI IP Dome Camera

Overview

The Speco Technologies O4ID2M is a 4MP Intensifier AI IP dome camera engineered for security integrators and IT teams deploying advanced surveillance in demanding lighting environments. This model combines native 4MP resolution with Intensifier technology designed to capture usable detail in minimal light conditions, paired with AI-driven analytics at the edge. The O4ID2M arrives with a 2.8–12mm motorized varifocal lens and integrated junction box, delivering flexible field-of-view adjustment without requiring external lens changes or additional hardware complexity during installation.

When this is the correct choice

The O4ID2M excels in indoor and outdoor environments where low-light performance and intelligent video analysis are both required. Select this model when you need 4MP resolution combined with Intensifier imaging to maintain visibility during dusk, dawn, or nighttime operations without relying solely on infrared illumination. The motorized lens is ideal for sites where a single camera must monitor variable focal ranges—retail environments, parking structures, building entrances, or perimeter applications where zoom flexibility reduces the total number of cameras needed. NDAA compliance makes this model suitable for federal, state, and local government procurement programs.

When to choose a different model

If your deployment requires fixed-focal fixed-dome simplicity and budget is the primary driver, consider fixed-lens alternatives. If you need thermal imaging or extreme long-range IR capability beyond 100 meters, evaluate dedicated thermal or premium IR-optimized models. For applications requiring 8MP+ resolution or 360° pan-tilt-zoom functionality, explore PTZ-capable platforms instead.

Optics and field of view

The O4ID2M integrates a 2.8–12mm motorized varifocal lens, delivering approximately 102° horizontal field of view at the 2.8mm wide position and approximately 27° at 12mm telephoto. Motorized focus and zoom allow integrators to adjust framing remotely via the camera's network interface or manual adjustment during commissioning. This flexibility eliminates the need to stock multiple fixed-lens variants or physically return to a site for focal-length changes.

Imaging performance and low light

The O4ID2M captures 4MP (2560 × 1536) resolution at up to 30 fps. Intensifier technology enhances sensitivity in low-light scenes—particularly effective when ambient illumination is present but insufficient for standard imaging sensors. This approach preserves color and detail compared to pure infrared or high-ISO noise. The camera supports day/night operation with automatic or manual switching between color and monochrome modes, optimizing visibility across 24-hour deployments.

Analytics and edge capabilities

Integrated AI analytics execute on the camera itself, reducing reliance on external servers and lowering bandwidth consumption. Built-in intelligence supports object detection, motion analysis, and other event-driven capabilities. These edge analytics integrate seamlessly with ONVIF-compatible video management systems and third-party platforms, enabling real-time alerting and forensic review without cloud dependency.

Video encoding and streaming

The O4ID2M supports H.265 and H.264 compression standards, with MJPEG available for compatibility with legacy systems. H.265 encoding reduces storage and bandwidth by approximately 50% compared to H.264 at equivalent quality, a significant advantage in multi-camera deployments or bandwidth-constrained networks. Dual-stream capability allows simultaneous local recording and remote viewing at different resolutions and frame rates.

Network and security

ONVIF Profile S/T/G compliance ensures interoperability with major VMS platforms—Milestone, Genetec, Axis Camera Station, and others—without vendor lock-in. The camera enforces 802.1X authentication, supports signed firmware and secure boot protocols, and includes HTTPS/TLS encryption for management and stream traffic. NDAA compliance confirms the product meets U.S. federal supply chain security requirements, with no components sourced from restricted entities.

Environmental and durability ratings

The O4ID2M is rated IP66 for dust and water ingress protection, suitable for outdoor installation in rain and humid conditions. The dome form factor and IP rating accommodate rooftop, eave, and soffit mounting. Operating temperature range spans −40°C to 60°C (−40°F to 140°F), ensuring reliable function across seasonal extremes in North American and international climates.

Power and installation notes

The O4ID2M operates via standard PoE (Power over Ethernet) at 12.95W maximum consumption, allowing single-cable deployment using standard CAT5e or CAT6 infrastructure. No separate 24VAC or 12VDC supply is required. The included junction box simplifies wiring transitions and cable strain relief, reducing field labor time during flush or surface mounting. Install in ceiling or wall positions; confirm line of sight and motorized lens range before final bracket tightening.

What is included

The O4ID2M ships with an integrated junction box and motorized 2.8–12mm lens. Contact us for complete package details, including bracket options, cable lengths, and accessory availability.

Marty Allison

I evaluated the O4ID2M during a mixed-lighting deployment for a mid-sized retail chain last quarter. The Intensifier front-end combined with 4MP resolution delivered usable facial and license-plate detail during dawn and dusk hours where older fixed-dome cameras would have required supplemental IR. The motorized lens eliminated the need for three separate cameras across a single entrance corridor—a significant cost and maintenance win.

Technical Highlights:

• Intensifier imaging: Preserves color and contrast in twilight and low-ambient conditions without relying entirely on infrared, reducing observer fatigue during live monitoring and improving forensic review quality.
• 4MP resolution at 30 fps: Sufficient pixel density for facial recognition, vehicle identification, and asset tracking in most commercial and government surveillance roles.
• 2.8–12mm motorized lens: Eliminates field-swap complexity and reduces per-site camera count when variable focal length is needed.
• PoE simplicity: 12.95W maximum draw ensures compatibility with standard PoE switches and injectors; no special power infrastructure required.
• NDAA compliance: Clears federal procurement checkboxes for government integrators and public-sector end users.

Deployment Considerations:

• Confirm adequate ambient light is present (at least 5–10 lux) for Intensifier technology to outperform thermal or high-gain IR; pure darkness still requires IR illumination.
• Test motorized lens focus and zoom before final install; network access during commissioning is mandatory for remote adjustment confirmation.
• Plan H.265 encoding in your VMS if bandwidth is constrained; H.264 fallback is always available but consumes approximately 50% more bitrate.
• Mount in ceiling or wall positions with clear line of sight to subjects; dome geometry minimizes glare but does not eliminate lighting fixtures directly in front of the lens.

The O4ID2M is a solid choice for integrators balancing budget, image quality, and installation speed. NDAA compliance and ONVIF interoperability keep vendor dependency low, and the Intensifier approach is a practical middle ground between standard CMOS imaging and dedicated thermal cameras. Recommended for government, retail, and industrial verticals where mixed lighting and edge analytics matter.
