Speco Technologies O4IB2M 4MP Intensifier AI IP Bullet Camera wit

Speco Technologies O4IB2M 4MP Intensifier AI IP Bullet Camera

Overview

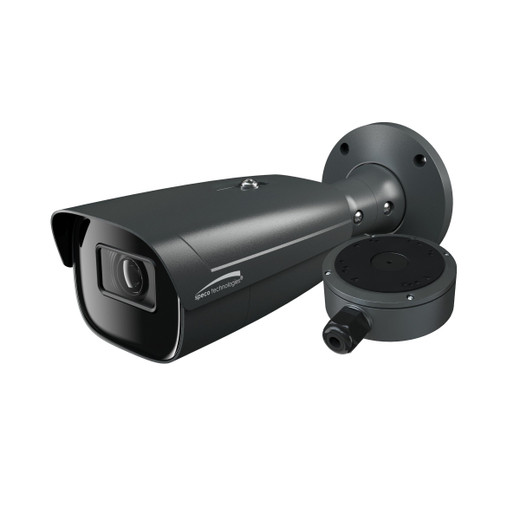

The Speco Technologies O4IB2M is a 4MP outdoor IP bullet camera engineered for security integrators and facility managers who require robust low-light performance and AI-driven analytics in a compact, field-installable package. This model combines a 2.8-12mm motorized varifocal lens with Intensifier technology, delivering exceptional clarity in challenging lighting conditions. The included junction box streamlines installation in wall or soffit deployments, while NDAA compliance ensures suitability for government and sensitive infrastructure applications.

When this is the correct choice

Select the O4IB2M when your deployment requires:

• Outdoor surveillance with minimal ambient lighting (parking lots, perimeter monitoring, loading docks)
• Variable field-of-view requirements within a single camera (motorized zoom lens accommodates wide overview and detail views)
• AI-powered object detection and alerting without external analytics servers
• NDAA-compliant equipment for federal, state, or municipal procurement
• Compact bullet form factor with integrated junction box for rapid deployment

When to choose a different model

Look elsewhere if your project requires:

• Indoor-only fixed-lens designs with lower total cost of ownership
• Panoramic or multi-sensor coverage from a single mounting point
• Extreme vandal-resistance (IK10 or armored housing)
• Thermal or specialty imaging modalities

Optics and field of view

The O4IB2M is equipped with a 2.8-12mm motorized varifocal lens, providing flexible coverage from wide-angle scene capture to detailed subject identification. The motorized focus allows remote adjustment and preset recall, reducing installation labor and enabling operators to adapt coverage without site visits. This lens configuration suits both broad perimeter sweeps and focused monitoring zones within the same installation.

Imaging performance and low light

At 4MP resolution (2688 × 1520 pixels), the O4IB2M delivers sufficient detail for forensic review and object classification. The Intensifier technology enhances sensitivity in low-light environments, extending usable detection range during dusk, dawn, and nighttime operations. This approach complements traditional IR illumination, offering operators multiple low-light strategies depending on environmental conditions and power budget constraints.

Analytics and edge capabilities

Integrated AI analytics enable real-time object detection and classification at the camera edge, reducing bandwidth consumption and latency compared to server-based processing. The O4IB2M supports intelligent video analysis for person, vehicle, and loitering detection, with configurable sensitivity and region-of-interest masking. These capabilities allow faster alerting and simplified integration with standard VMS platforms via ONVIF compliance.

Video encoding and streaming

The camera supports H.265 and H.264 compression standards, with selectable profiles for bitrate optimization. Dual-stream capability allows simultaneous low-resolution recording and full-resolution monitoring, reducing storage footprint while maintaining archive quality. Frame rate delivery scales with resolution and encoding selection to balance bandwidth and temporal clarity.

Network and security

Network connectivity leverages Power-over-Ethernet (PoE) delivery, eliminating separate power wiring at outdoor mounting points. ONVIF Profile S/T/G compliance ensures interoperability with Milestone, Genetec, Mobotix, and other mainstream VMS platforms. Secure boot and signed firmware protect against unauthorized code injection, while encrypted credential storage and 802.1X network authentication support enterprise security policies.

Environmental and durability ratings

Rated for outdoor installation, the O4IB2M withstands rain, snow, and temperature fluctuations typical of perimeter and building facade deployments. The included junction box provides weatherproof cable termination and strain relief, extending camera lifespan and reducing field troubleshooting. Operating temperature range accommodates both northern and southern climates.

Power and installation notes

PoE delivery simplifies power infrastructure—standard PoE+ (802.3at) injection from compatible switches or injectors supplies the O4IB2M without additional conduit or AC outlets at the camera location. The junction box is supplied as part of this package, containing terminal blocks and gasketing for rapid field assembly. Installers should verify switch PoE budget and run CAT6 or better cabling to support high bitrate video and motorized lens operation.

What is included

Contact us for package details.

Karl Wilson

I've evaluated the Speco O4IB2M across several municipal and commercial projects, and this camera strikes a practical balance between cost, performance, and deployment flexibility. The 2.8-12mm motorized lens eliminates the guesswork of fixed-lens selection, and the Intensifier approach pairs well with standard IR illumination for sites that need 24/7 clarity without the power penalty of constant IR.

Technical Highlights:

• 4MP Intensifier imaging: Delivers usable detail in low-light without sacrificing daylight image quality; supports both H.265 and H.264 encoding for flexible bandwidth management
• Motorized 2.8-12mm lens: Reduces installation friction by allowing remote focus and zoom preset adjustment; accommodates variable coverage zones in a single mounting location
• Edge AI analytics: Onboard object detection and classification reduce server load and enable faster alerting without external analytics appliances
• NDAA compliance: Meets federal procurement requirements for government and critical infrastructure accounts

Deployment Considerations:

• Verify PoE+ budget on your switch; the motorized lens and Intensifier processing can approach 15–18W under heavy operation
• The junction box eliminates custom terminal fabrication at install—accept the included unit and confirm weatherproof termination before final deployment
• Configure AI detection zones conservatively at first; edge analytics sensitivity can be tuned post-deployment via VMS without camera reconfiguration
• Test Intensifier performance in your specific lighting envelope; if ambient illumination is above 0.5 lux, traditional IR may be more cost-effective

For integrators managing mixed outdoor deployments across diverse lighting conditions, the O4IB2M is a reliable workhorse. The Intensifier technology and motorized lens flexibility justify the investment, and NDAA compliance eliminates sourcing complexity for government projects.
