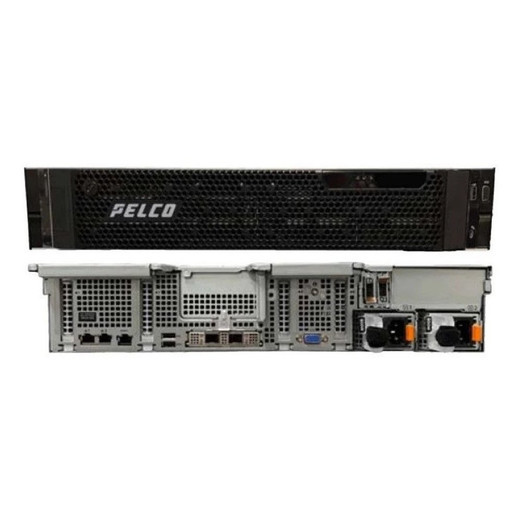

Pelco VXS2B-R160-N20 160TB NVR Video Recorder

Pelco VXS2B-R160-N20 160TB NVR Video Recorder

The Pelco VXS2B-R160-N20 is the highest-capacity SATA-based VideoXpert VxStorage R-Series NVR, purpose-built for large-scale surveillance deployments requiring maximum retention depth. Delivering 160 TB raw capacity with RAID 6 protection (approximately 109 TB effective storage), this enterprise-class platform supports 100-channel VideoXpert licensing and ships with a comprehensive 5-year warranty.

Key Features

• 160 TB raw SATA storage capacity with RAID 6 redundancy (~109 TB effective)
• 100-channel VideoXpert license included
• Dell PowerEdge R760XD2 chassis with Intel Xeon Silver processors
• 32 GB RAM for robust multi-channel performance
• Dual 1 GbE + dual 10 GbE SFP+ network interfaces
• Redundant power supplies for mission-critical reliability
• iDRAC remote management for IT integration
• Windows Server 2019 operating system
• NDAA Section 889 compliant for regulated environments
• 5-year manufacturer warranty

Technical Specifications

Built on enterprise-grade Dell infrastructure, the VXS2B-R160-N20 combines powerful processing with flexible network connectivity. The dual 10 GbE SFP+ interfaces enable high-throughput camera ingestion, while dual 1 GbE ports support standard network operations. iDRAC management capabilities provide out-of-band administration without impacting recording operations.

Scalability and Integration

This R-Series platform is optimized for SATA-based deployments where maximum retention at standard throughput is the priority. For applications requiring higher recording throughput under extreme camera density, Pelco offers the C-Series SAS platform alternatives (VXS2C-E216 or VXS2C-E288). Lower-capacity variants within the same platform include the VXS2B-R144-N18 and VXS2B-R96-N12.

Applications

Ideal for large-scale commercial and industrial surveillance installations, government facilities, transportation hubs, and campus-wide deployments. The NDAA Section 889 compliance makes it suitable for federal, state, and local government projects with supply chain security requirements. Seamless integration with Pelco camera systems and VideoXpert software enables professional-grade surveillance workflows.

Karl Wilson

The VXS2B-R160-N20 represents Pelco's flagship SATA-based NVR solution, delivering uncompromised storage capacity for organizations prioritizing long-term retention over peak throughput. The 109 TB effective capacity under RAID 6 protection provides industry-leading retention depth for 100-channel deployments, making it ideal for facilities requiring extended historical video access. The combination of redundant power, Intel Xeon Silver processors, and dual 10 GbE interfaces ensures reliable operation in mission-critical environments.

Organizations should assess their maximum simultaneous recording throughput requirements; if sustained throughput approaches or exceeds SATA bandwidth limitations, the SAS-based C-Series platform offers superior performance scalability. The included 5-year warranty and enterprise-grade Dell infrastructure provide long-term cost predictability for large deployments.
