Panasonic WV-S8531N Multi-Sensor Outdoor Dome Network Camera
Panasonic WV-S8531N captures high-quality images in challenging environments. This camera comes with a variety of features and helps your security sys…

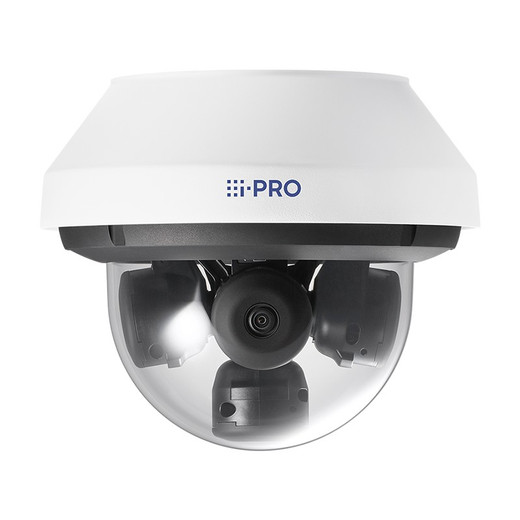

Panasonic WV-S8531N Multi-Sensor Outdoor Dome Network Camera
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
WV-S8531N
Availability:
No Longer Available
Description
Panasonic WV-S8531N captures high-quality images in challenging environments. This camera comes with a variety of features and helps your security system function at a high level. Four separate 2MP lens captures high-definition lenses and can be individually repositioned to give you your preferred angle of viewing. This device can produce color images in minimal light with the assistance of color night vision. Take clear and crisp images of fast-moving vehicles with ease, making this an ideal camera for high-speed intersections. Another amazing feature on these cameras is iA or Intelligent Auto which assists in adjusting key camera settings to reduce distortions that arise in real-time.
A durable casing rated IP66 and IK10 protects this device from harsh weather events and vandals. This camera also includes a dehumidification device allowing you to have peace of mind in your solution. H.265 smart coding allows this camera to only use bandwidth needed along with optimizing storage. Upgrade your security system with a Panasonic I-Pro sensing solution and see what I can do for you.
Panasonic WV-S8531N Multi-Sensor Outdoor Dome Network Camera Key Features:
- Resolution: 1920 x 1080 up to 30fps
- Lens: 4 - FHD(8MP)
- Sensor: 8MP 1/2.8 CMOS
- Zoom & Focus:
- Focal Length: 2.9mm - 7.1mm
- Optical Zoom: 2.5x
- Extra Optical Zoom: 7.5x (When resolution is 640 x 360)
- Angle Adjustment:
- Camera 1,2,and 3:
- Horizontal: -100° to 100°
- Verical: 30° to 80°
- YAW: -50° to 50°
- Camera 4:
- Horizontal: -100° to 100°
- Verical: -15° to 80°
- YAW: -50° to 50°
- Dynamic Range: 120 dB
- Night Time Viewing: Up to 131ft
- Video Compression: H.265 Smart Coding/H.265/ H.264/ JPEG (MJPEG)
- Environmental Rating: IP66, IK10
- Wind Resistance: Up to 89 MPH
- Power Supply: DC 54V 390 mA, Approx. 22 W(Class4 device)
- Power Over Ethernet: Yes
- Dehumidification Device: Rosahl Element
- Operating Conditions: -40 °F to +140 °F
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 512 GB
- Audio Input: 3.5 mm stereo mini jack
Specifications
Resolution:
8MP
Sensor Type:
1/2.8 CMOS
Focal Length:
2.9mm - 7.1mm
Optical Zoom:
2.5x
Digital Zoom:
7.5x
IR Distance:
131ft
IP Rating:
IP66
Vandal Rating:
IK10
Video Compression:
H.265, H.264, MJPEG
Frame Rate:
30fps
Power Type:
DC 54V
Connectivity:
PoE
Storage Capacity:
512GB
Operating Temperature:
-40°F to +140°F
WDR:
120dB
Day/Night:
Color night vision
Max Channels:
4
Form Factor:
Dome
Audio Support:
True
