Frame Rate:
30fps
Sensor Type:
Approx. 1/2.8 type CMOS image sensor
Scanning Area:
5.12 mm (H)×3.84 mm (V) {3/16 inches (H) × 5/32 inches (V)}
Minimum Illumination (Color:
Color : 0.05 lx (30IRE, F1.3, 1/30s) Color : 0.07 lx (50IRE, F1.3, 1/30s)
Minimum Illumination (B&W:
BW : 0.04 lx (50IRE, F1.3, 1/30s) BW : 0 lx (50IRE, F1.3,1/30s with IR LED)
White Balance:
ATW1/ ATW2/ AWC
Shutter Speed:
[30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto:
On / Off
Super Dynamic:
On / Off, The level can be set in the range of 0 to 31.
Dynamic Range:
Max. 132 dB (Super Dynamic : On, Level : 30 or more, 15fps)
Adaptive Black Stretch:
The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation:
BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off)
Fog Compensation:
On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain:
The level can be set in the range of 0 to 11.
Color/BW (ICR:
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light:
High / Middle / Low / Off, Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE) 50 m {Approx. 164 ft} (50IRE)
Digital Noise Reduction:
The level can be set in the range of 0 to 255.
Video Motion Detection (VMD:
On / Off, 4 areas available
Scene Change Detection (SCD:
On / Off, 1 areas available
Audio Detection:
On / Off
AI Sound Classification:
Gunshot, Yell, Vehicle horn, Glass break
AI Analytics:
AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection
Privacy Zone:
On / Off, Up to 8 zones available
VIQS:
On / Off, Up to 8 zones available
Image Rotation:
0 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD:
On / Off, Up to 40 characters (alphanumeric characters, marks)
Focus Adjustment:
Auto focus
Optical Zoom:
3.1x (Motorized zoom / Motorized Focus)
Extra zoom:
3.1x - 9.3x (when resolution is 640 x 360)
Focal Length:
2.9 - 9 mm {1/8 inches - 11/32 inches}
Angular Field of View:
[16 : 9 mode] Horizontal : 34° (TELE) – 106° (WIDE), Vertical : 19° (TELE) – 57° (WIDE) [ 4 : 3 mode] Horizontal : 34° (TELE) – 106° (WIDE), Vertical : 25° (TELE) – 77° (WIDE)
Maximum Aperture Ratio:
1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focus range:
0.3 m {11-13/16 inches} – ∞
DORI Detect (25ppm / 8ppf:
Wide: 46.3 m / 151.9 ft, Tele: 201.0 m / 659.3 ft
DORI Observe (62.5ppm / 19ppf:
Wide: 18.5 m / 60.8 ft, Tele: 80.4 m / 263.7 ft
DORI Recognize (125ppm / 38ppf:
Wide: 9.3 m / 30.4 ft, Tele: 40.2 m / 131.9 ft
DORI Identify (250ppm / 76ppf:
Wide: 4.6 m / 15.2 ft, Tele: 20.1 m / 65.9 ft
System on Chip (SoC:
Ambarella CV22
Ceiling mounting:
Horizontal : ±180 ° (PAN rotation part) Vertical : 0 ° to 100 ° (TILT rotation part) Yaw : –190 ° to +100 ° (YAW rotation part)
Wall mounting:
Horizontal : ±100 ° (TILT rotation part)* Vertical : ±100 ° (TILT rotation part)* Yaw : –190 ° to +100 ° (YAW rotation part)
Camera Control:
Brightness, AUX On / Off
Audio Support:
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language:
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser:
Microsoft Edge, Firefox, Google Chrome
Network IF:
10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) - 16:9:
[16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180
Resolution H.265/ H.264/ JPEG (MJPEG) - 4:3:
[4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536 , 1280x960, VGA, QVGA
H.265/H.264:
[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG:
[Image Quality] 10 steps
Smart Coding:
GOP (Group of pictures control): Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control)
Audio Compression:
G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode:
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol (IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
Supported Protocol (IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
No. of Simultaneous Users:
Up to 14 users (Depends on network conditions)
Secure:
FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installe
Secure (Continued:
User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption
SDXC/SDHC/SD Memory Card:
microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB microSD memory card : 2 GB
Mobile Terminal Compatibility:
iPad, iPhone, Android™ terminals
ONVIF® Profile:
G / M / S / T
Monitor Output (for Adjustment:
VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera
Audio input:
ø3.5 mm stereo mini jack For microphone input : Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Audio input (Continued:
Input impedance : Approx. 2 kΩ (unbalanced) Supply voltage : 2.5 V ±0.5 V For line input : Input level: Approx. –10 dBV
Audio Output:
ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals:
ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
Safety:
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC:
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Power Source and Power Consumption:
DC power supply : DC12 V 1.0 A, Approx. 12.0 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device)
Ambient Operating Temperature:
-40 °C to +60 °C (-40 °F to 140 °F) (Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
Ambient Operating Humidity:
10 to 100 % (no condensation)
Anti-Condensation System:
Temish element + Heater + moisture absorption gel
Water and Dust Resistance:
IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
Shock Resistance:
IK10 (IEC 62262)
Wind Resistance:
Up to 40 m/s {approx. 89 mph}
Dimensions:
ø133 mm (W) x 133 mm (H) x 383 mm (D) {ø5-1/4 inches (W) x 5-1/4 inches (H) x 15-3/32 inches (D)}
Mass (approx:
Approx. 2.4 kg {5.3 lbs.}
Finish:
Main body : Aluminum die cast and resin, i-PRO white Outer fixing screws : Stainless steel (Corrosion-resistant treatment) Front panel : Polycarbonate resin, Clear (with ClearSight coating)
Alarm Source:
3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions:
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output
Other:

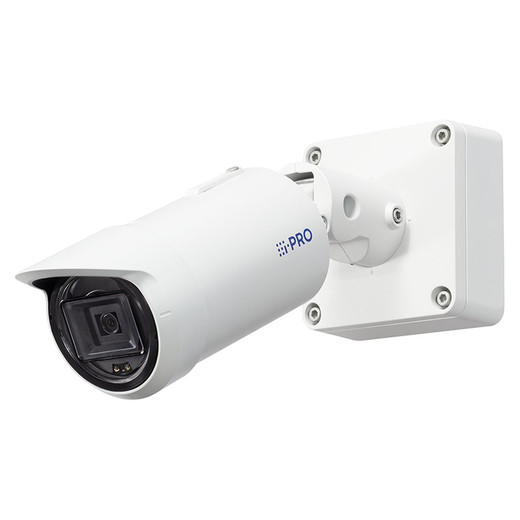

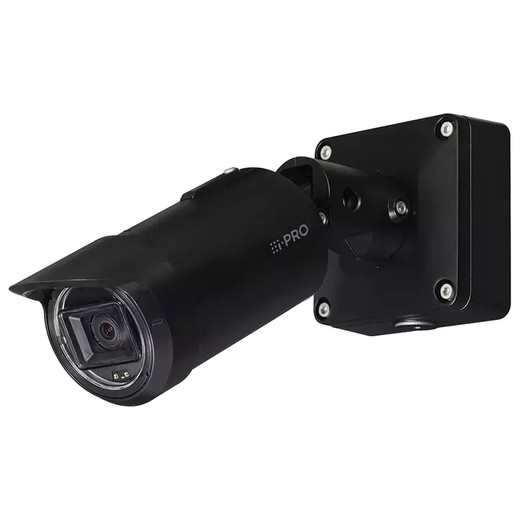

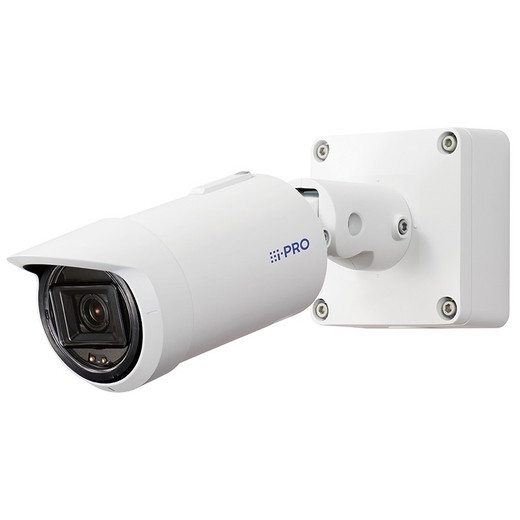

WV-S15500-V3LK : Heavy salt damage resistance specifications (ISO 14993 compliant)
Product Type:
Bullet
Connectivity:
Wired
IP Rating:
IK10
Night Vision:
IR
Power Type:
PoE
PoE Class:
0
Form Factor:
Bullet
Vandal Rating:
IK10
Compatibility:
ONVIF
Resolution:
5MP
Video Compression:
H.265, H.264, MJPEG
IR Distance:
55m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Outdoor Ready:
Yes
Signed Firmware:
Yes
HTTPS Encryption:
Yes
Operating System:
Android
